DA14533-00RNDB-P

Active

SmartBond TINY DA14533 Bluetooth Low Energy SoC Development Kit Pro Daughterboard

Order Now
DA1453x Pro-Development Kit Hardware User Manual

Overview

The DA14533-00RNDB-P is a daughterboard designed for use with the DA14533-00RNDEVKT-P development kit. It can be easily attached to the motherboard of the DA14533-00RNDEVKT-P. The daughterboard is mounted with a DA14533 Bluetooth® SoC.

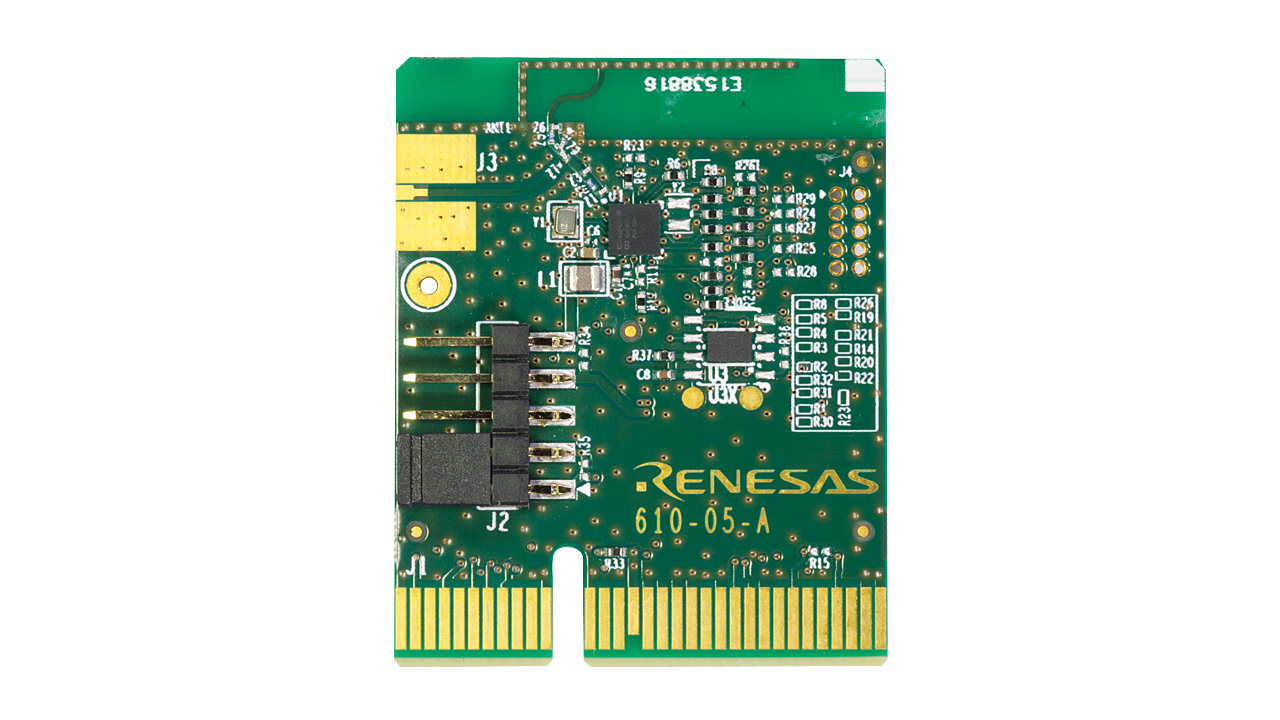

DA14533 Development Kit Pro Daughterboard
DA14533 Development Kit Pro Daughterboard
  • AEC-Q200 qualified 32MHz crystal
  • AEC-Q100 qualified 2Mbit Flash IC
  • RF matching and embedded printed antenna
  • PCB placeholder for CR2032 battery clip
  • PCB placeholder for RF coaxial connector
  • PCB placeholder for 32kHz crystal

Documentation

Featured Documentation
Type Title Date
Manual - Development Tools
DA1453x Pro-Development Kit Hardware User Manual
PDF 6.74 MB
Schematic
DA14533 Daughterboard QFN22 (610-05-A) Schematic
PDF 501 KB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
DA14533 Daughterboard QFN22 (610-05-A) PCBA - Source
ZIP 890 KB
PCB Design Files
DA14533 Daughterboard QFN22 (610-05-A) BOM
ZIP 71 KB
PCB Design Files
DA14533 Daughterboard QFN22 (610-05-A) PCBA - Gerber Files
ZIP 1011 KB
3 items
DA14533 Development Board Pro with Daughterboard
Development
DA14533-00RNDEVKT-P Active

SmartBond TINY DA14533 Bluetooth Low Energy SoC Development Kit Pro

The DA14533-00RNDEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14533 SmartBond TINY™ SoC includes a motherboard, daughterboard, and cables.

This kit provides users with the following capabilities:

  • Software development
  • Programming the DA14533 via JTAG or UART using the DA1453x SDK
  • RF...
