Features
- 48MHz Arm Cortex-M23
- Up to 128kB Flash memory and 16kB SRAM
- 4kB Data Flash to store data as in EEPROM
- Scalable from 25-pin to 64-pin packages
- Wide operating voltage range of 1.6V to 5.5V
- Enhanced Capacitive Touch Sensing Unit (CTSU)
- 12-bit ADC, LPACMP, temperature sensor
- 32-bit general PWM timer, 16-bit general PWM timer, low power asynchronous general-purpose timer
- RTC
- SCI (UART, simple SPI, simple I2C)
- SPI/I2C multi-master interface
- Safety
- Security and encryption
- A large selection of packages (LQFP, QFN, LGA, BGA, WLCSP)
Description

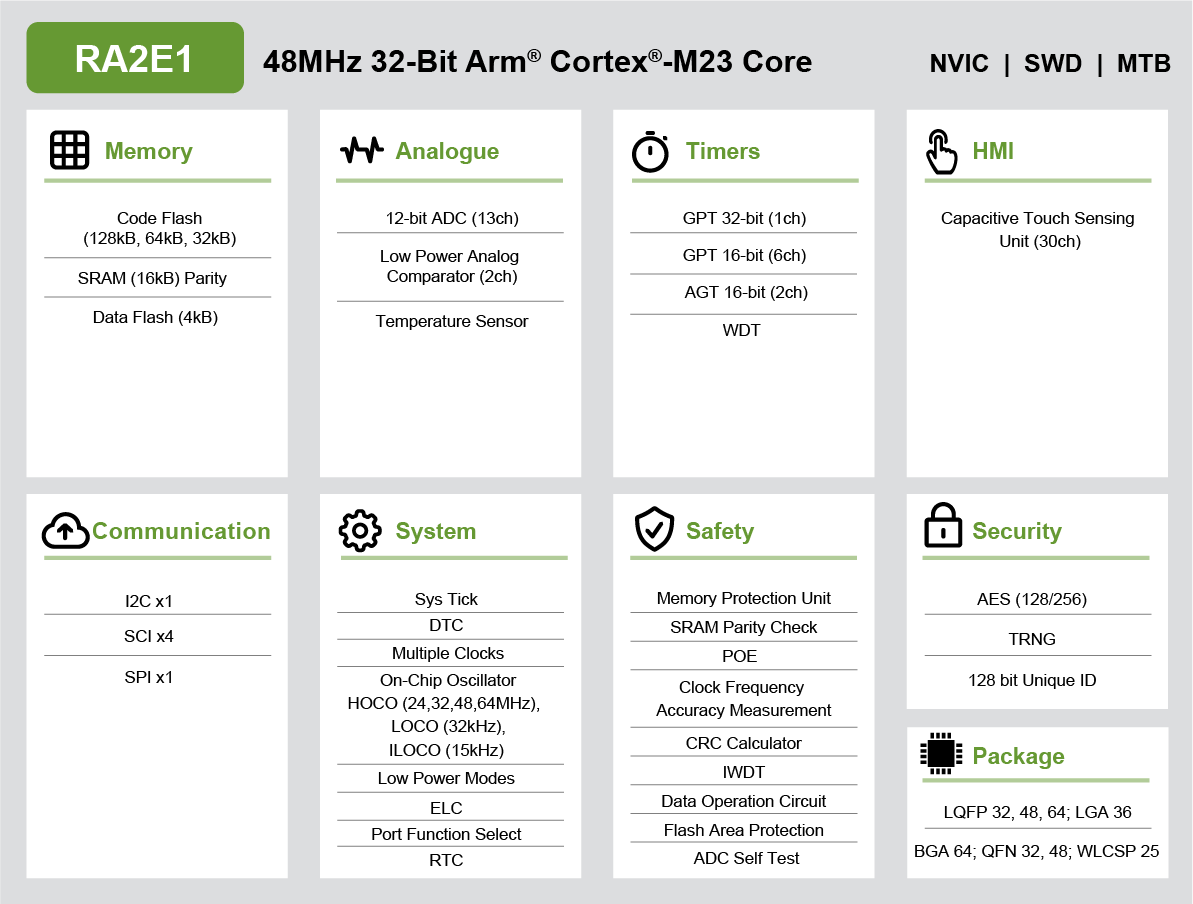

The RA2E1 group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm® Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas’ low power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2E1 group supports a wide operating voltage range of 1.6V to 5.5V and a large selection of packages such as LQFP, QFN, LGA, BGA, and WLCSP. The RA2E1 provides pin and peripheral compatibility with the RA2L1 group and is ideal for battery-operated applications and other systems requiring high performance and low-energy consumption in space-constrained applications.
Parameters
Attributes | Value |
---|---|
Main CPU | Arm Cortex-M23, ARM Cortex-M23 |
Program Memory (KB) | 32, 64, 128 |
RAM (KB) | 16 |
Carrier Type | Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel |
Supply Voltage (V) | - |
I/O Ports | 21, 26, 30, 40, 56 |
DRAM I/F | No |
Temp. Range (°C) | Ta = -40 to +85, Ta = -40 to +105 |
Operating Freq (Max) (MHz) | 48 |
Ethernet speed | No |
EtherCat (ch) (#) | 0 |
USB FS (host ch/device ch) | ( 0 / 0 ) |
USB HS (host ch/device ch) | ( 0 / 0 ) |
USB SS (host ch/device ch) | ( 0 / 0 ) |
SCI or UART (ch) | 3, 4 |
SPI (ch) | 1 |
I2C (#) | 1 |
CAN (ch) | 0 |
CAN-FD (ch) | 0 |
Wireless | No |
SDHI (ch) | 0 |
High Resolution Output Timer | No |
PWM Output (pin#) | 9, 10, 11, 14 |
32-Bit Timer (ch) | 1 |
16-Bit Timer (ch) (#) | 6 |
Standby operable timer | Yes |
Asynchronous General Purpose Timer / Interval Timer (ch) | 2 |
16-Bit A/D Converter (ch) | 0 |
14-Bit A/D Converter (ch) | 0 |
12-Bit A/D Converter (ch) | 8, 10, 12, 13 |
24-Bit Sigma-Delta A/D Converter (ch) | 0 |
12-Bit D/A Converter (ch) | 0 |
8-Bit D/A Converter (ch) | 0 |
Capacitive Touch Sensing Unit (ch) | 10, 11, 14, 20, 30 |
Image Codec | No |
Segment LCD Controller | No |
Security & Encryption | Unique ID, TRNG, AES |
Package Options
Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
---|---|---|---|
HWQFN | 5 x 5 x 0.8 | 32 | 0.5 |
HWQFN | 7 x 7 x 0.8 | 48 | 0.5 |
HWQFN | 8 x 8 x 0.8 | 64 | 0.4 |
LFQFP | 7 x 7 x 1.7 | 32 | 0.8 |
LFQFP | 7 x 7 x 1.7 | 48 | 0.5 |
LFQFP | 14 x 14 x 1.7 | 64 | 0.8 |
LFQFP | 10 x 10 x 1.7 | 64 | 0.5 |
LQFP | 7 x 7 x 1.7 | 32 | 0.8 |
LQFP | 14 x 14 x 1.7 | 64 | 0.8 |
QFN | 8 x 8 x 0.8 | 64 | 0.4 |
VFBGA | 4 x 4 x 0.99 | 64 | 0.4 |
WFLGA | 4 x 4 x 0.76 | 36 | 0.5 |
WLCSP | 2 x 2 x 0.5 | 25 | 0.4 |
Application Block Diagrams
|
Automatic Espresso Maker with Digital Controls
AI-powered espresso machine with a large touchscreen and smart cloud connectivity.
|
|
Air Fryer Toaster Oven with Digital Controls
Smart air fryer design supports sensors and uses touch HMI to deliver fast, healthy, perfectly cooked meals.
|
|
Portable Power System
Portable power system with 240W USB-C, 3.6KW bi-directional charging, and digital control.
|
|
Battery-Powered Camera with AI Object Detection & Motion Sensing
Battery-powered camera with AI for efficient motion detection, fast boot, and low-power object classification.
|
|
20-28 Cell Battery Pack (Up to 118V)
Scalable 20-28 cell battery pack design with optional Bluetooth connectivity.
|
|
Infusion Level Monitor Using Capacitive Touch Sensing
Infusion monitors track fluid levels, offering reliable alerts for diverse liquid tank applications.
|
|
Dimming System for Monitors
Dimming system for monitors featuring QR flyback, DC/DC buck, LDO, and MCU for precise backlight control.
|
|
IO-Link Sensors
This system enables smart sensor control via IO-Link communication.
|
|
Touchless Button
Touchless button design using capacitive sensing ensures hygiene and reliability in varied settings.
|
|
Smart Lock with Ultra-Low Power Wi-Fi & Bluetooth Low Energy
Low-power smart lock system enabling secure, wireless control with fingerprint support.
|
|
Triac-Based Motor Controller
Triac-based motor controllers offer cost-effective, reliable AC motor control with easy integration for small systems.
|
|
Industrial Ethernet Gateway and Sensor System
Quick-start modules enable seamless Ethernet connectivity for sensors and gateways.
|
|
Smart Range Hood
Enhanced touch controls and advanced MCUs deliver superior functionality and innovation for smart range hoods.
|
|
Wi-Fi-Connected Furnace Controller
Wi-Fi-connected furnace controller with precise sensing, safety compliance, and remote monitoring for modern HVAC systems.
|
Additional Applications
- General purpose
- Consumer applications
- Home appliances
- Industrial automation
- Building automation
- Medical and healthcare
