Overview
Description

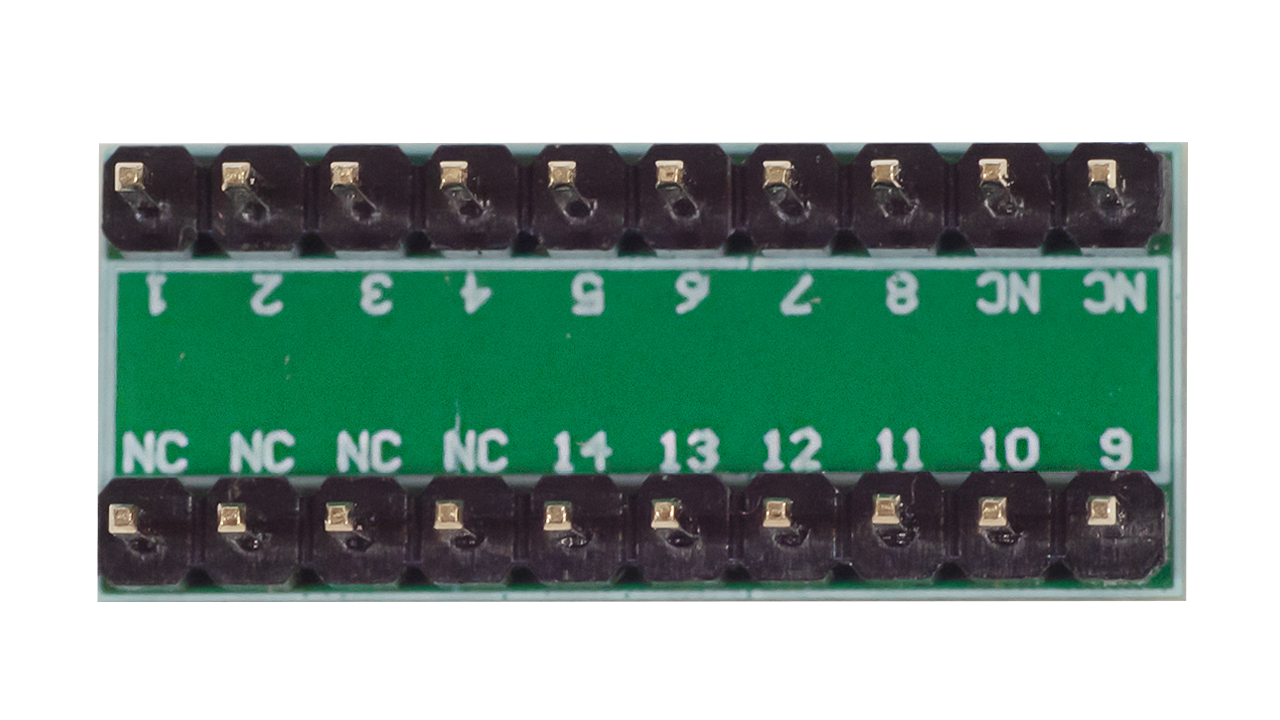

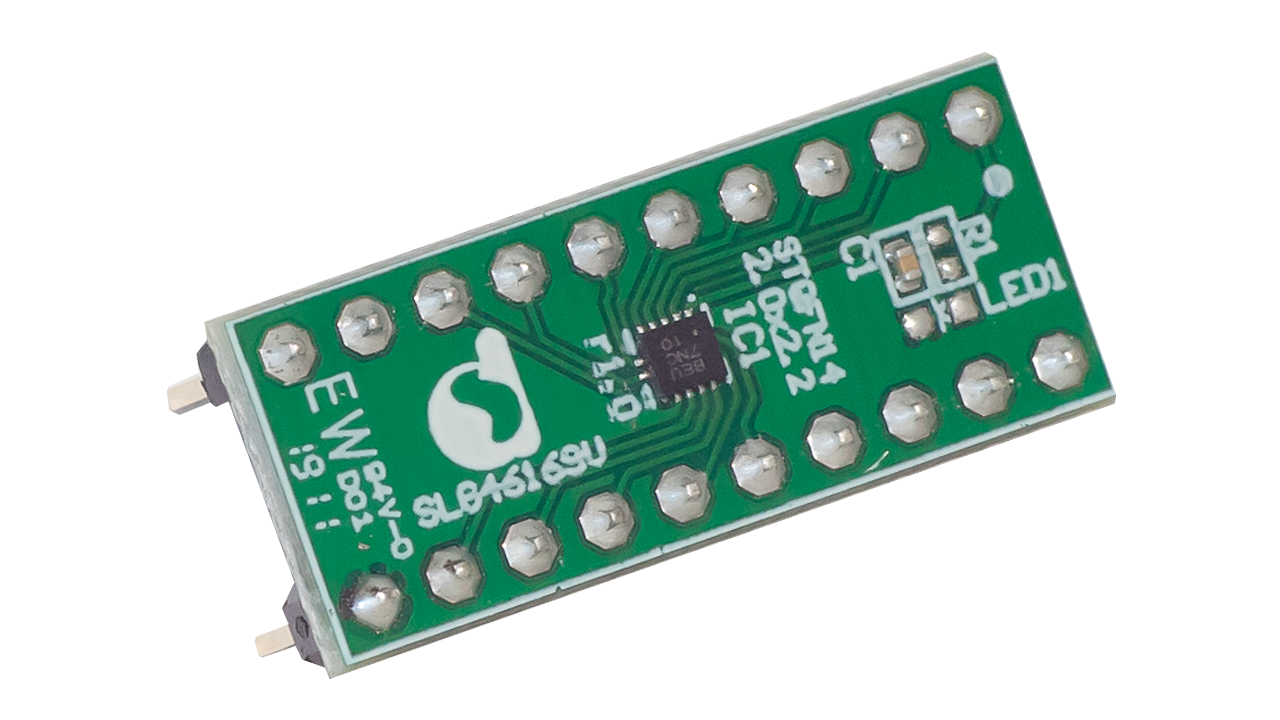

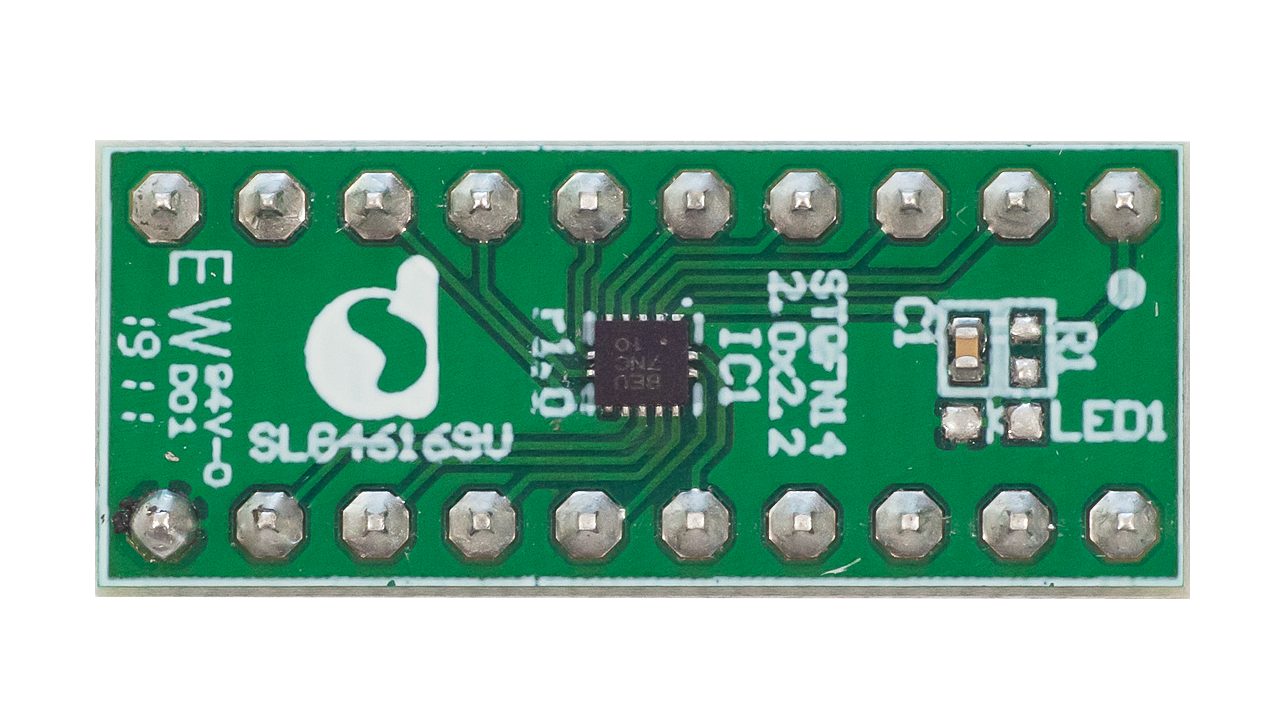

The SLG46169V-DIP 20-pin DIP prototyping board is perfect for breadboarding and fast prototypes. The board requires the DIP Adapter (SLG4SA-DIP) to use it with the Advanced Development Board.
Features
- Low cost
- Simplifies prototyping of Surface Mount Technology (SMT) ICs
- Optional VDD LED indicator
- Decoupling capacitor included
- Optional I2C pull-up resistors
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Guide | PDF 280 KB | |
| Manual - Development Tools | PDF 1.32 MB | |
| Manual - Development Tools | PDF 2.35 MB | |
3 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Related Boards & Kits
Development
SLG4DVKADV
Active
GreenPAK Advanced Development Board
The GreenPAK™ Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT/SLG47xxxV-SKT socket kits.
It works in tandem with the GreenPAK Designer software (built into the Go Configure™ Software Hub), and it allows...
Recommended Documents:
Test This Board Remotely
Available on Lab on the Cloud, use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Development
SLG4DVKLITE
Active
GreenPAK Lite Development Board
The GreenPAK™ Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in conjunction with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
Recommended Documents:
Development
SLG4SA-DIP
Active
GreenPAK DIP Adapter for GreenPAK Advanced Development Board
The GreenPAK™ DIP Adapter for the GreenPAK Advanced Development Board allows for using the SLG46xxxV-DIP and SLG47xxxV-DIP prototyping boards with the GreenPAK Advanced Development Board. It acts as the bridge between the advanced and DIP development platforms.
Recommended Documents:
