Overview

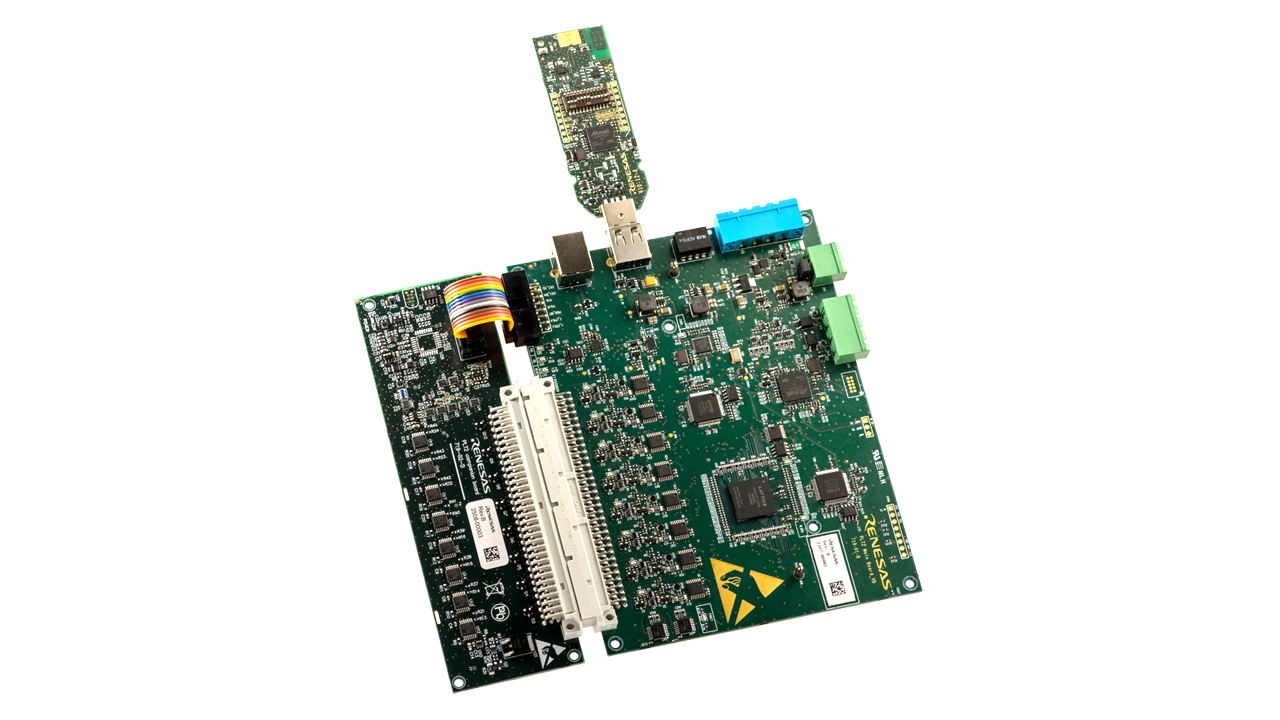

This Connectivity Production Line Tool (PLT) with companion board provides the necessary components to get started with production testing of Renesas Bluetooth ® Low Energy (LE) devices such as the DA1453x family. The kit includes the PLT main board, the PLT self tester "companion board", and a DA14695 USB development kit which is preconfigured as a RF Testing Unit (RFTU).
The combination of the Connectivity PLT software is designed to reduce ramp-up time and lower production costs. By validating your hardware before volume testing begins, the companion board helps increase throughput and maintain confidence throughout the testing process.
Features
- Up to 32 parallel programming and testing
- Flexibility in programming OTP/Flash/eFlash
- Ease of integration: CLI tool included
- Modular approach: Bluetooth® Low Energy (LE), Wi-Fi, DECT
- Included tests:
- Xtal trimming
- Sensor test
- GPIO test
- RSSI test
- Current measurement
- Many more
- Customizable test steps
Sample & Buy
RTKRQ00101S00000BJ
Active1u | $1,500.00Budgetary Price
Add-on Hardware
Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.
Connectivity Production Line Tool 8-Site Main Board
RTKRQ00100C00000BJ Active
Enable high‑throughput production testing of connectivity devices using a scalable multi‑site production line platform.
Recommended Documents:
Connectivity Production Line Tool Companion Board for Debugging
RTKRQ00010B00000BJ Active
Validate and debug production test setups using a companion board designed to ensure reliable PLT operation.
Recommended Documents:
Connectivity Production Line Tool Bluetooth Low Energy RF Test Unit
RTKRQ00001Z00000BJ Active
Accelerate volume production testing of Bluetooth Low Energy devices using a dedicated RF test unit for the PLT system.
Recommended Documents:
