Overview

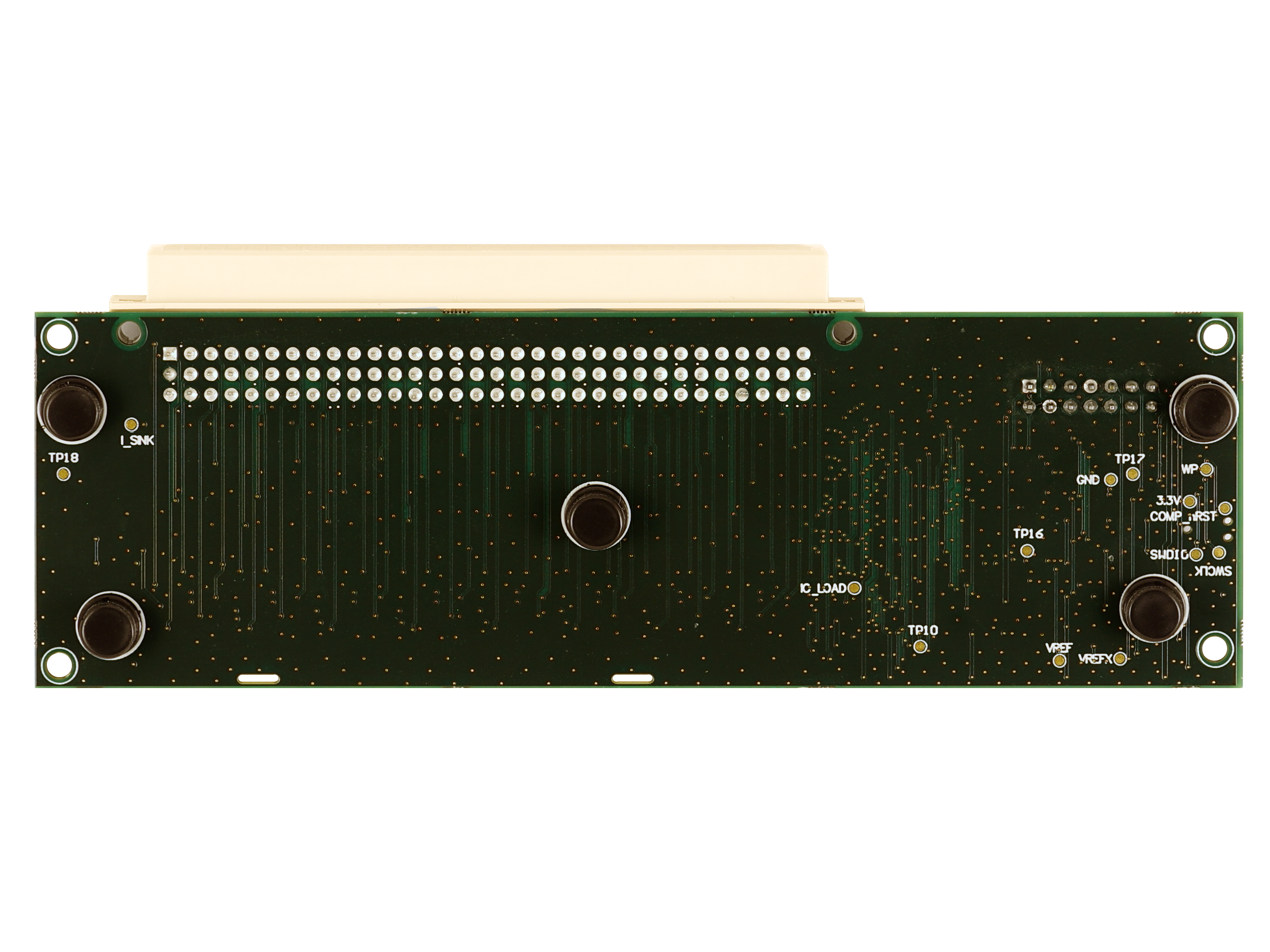

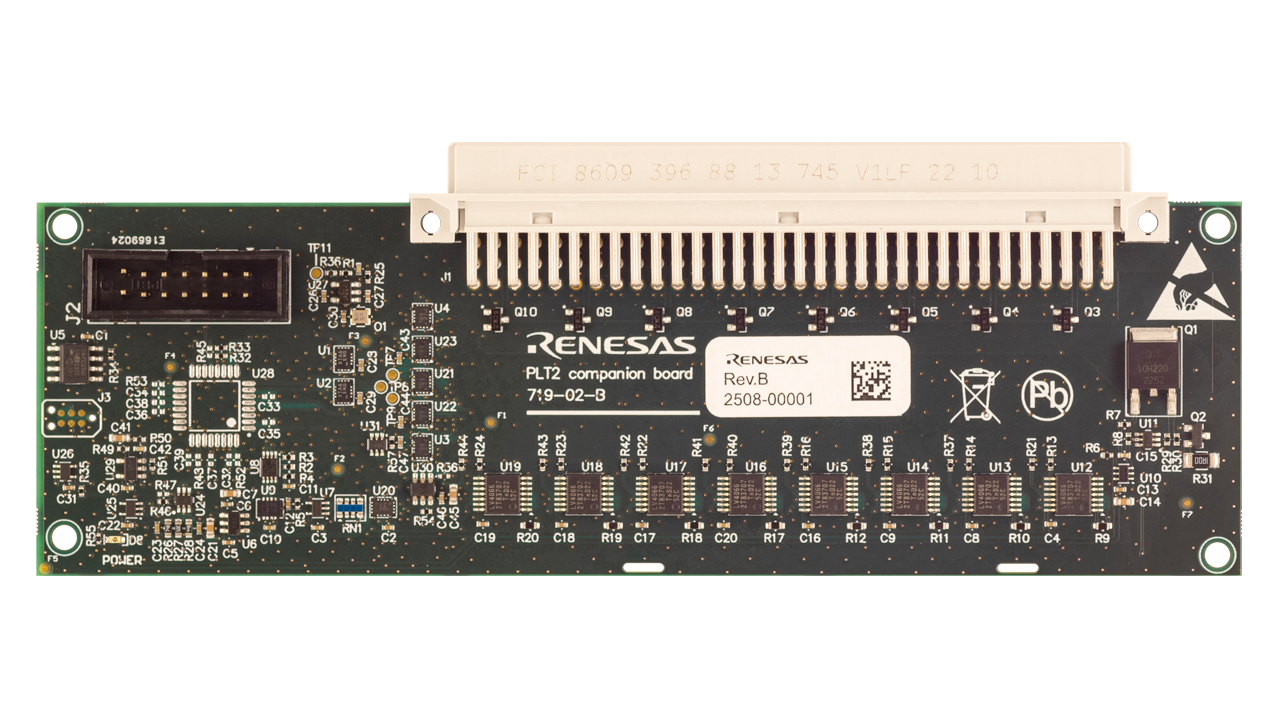

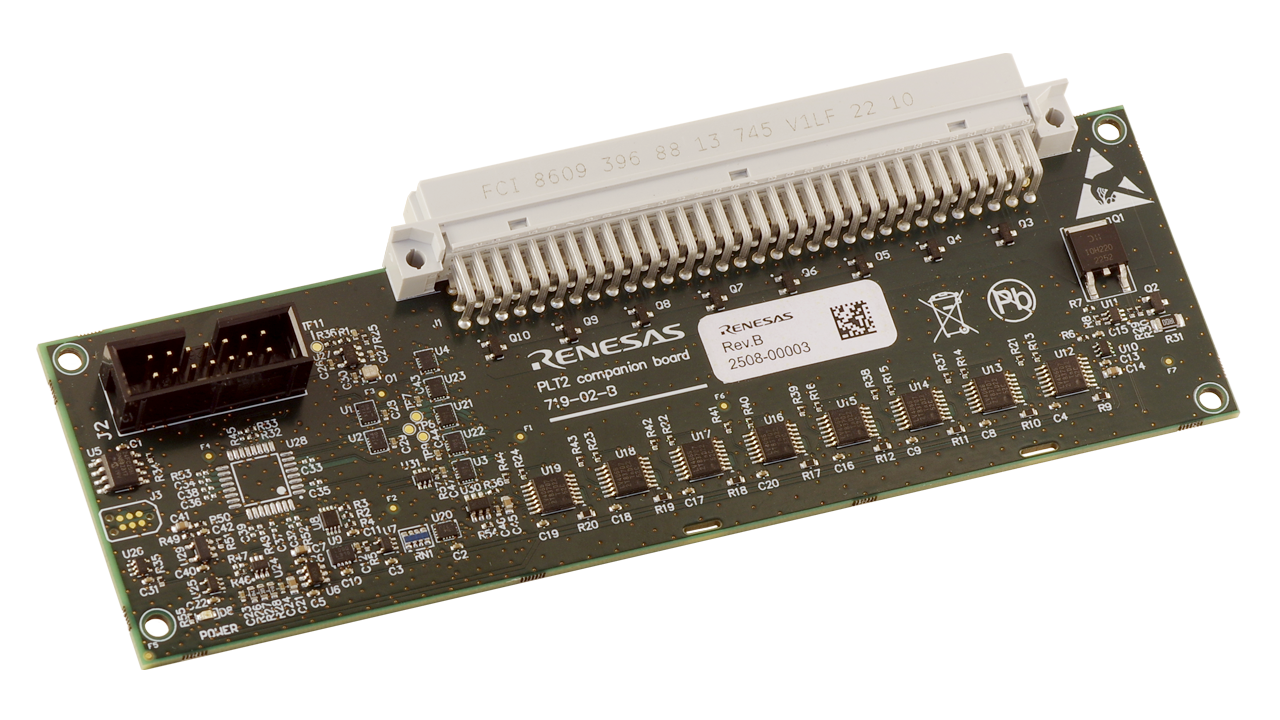

The Connectivity PLT Companion Board is used to self-test your PLT setup, helping ensure accurate results and reliable test execution. It verifies that key signals such as VDUT, VDDIO, AIN, and UART/GPIO are functioning within specification.
This board supports the Connectivity Production Line Tool software, which is designed to reduce ramp-up time and lower production costs. By validating your hardware before volume testing begins, the companion board helps increase throughput and maintain confidence throughout the testing process.
Features
- Up to 32 parallel programming and testing
- Flexibility in programming OTP/flash/eFlash
- Ease of integration: CLI tool included
- Modular approach: Bluetooth® Low Energy (LE), Wi-Fi, DECT
- Included tests:
- Xtal trimming
- Sensor test
- GPIO test
- RSSI test
- Current measurement
- Many more
- Customizable test steps
Sample & Buy
RTKRQ00011S00000BJ
ActiveAdd-on Hardware
Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.
Connectivity Production Line Tool 8-Site Main Board
RTKRQ00100C00000BJ Active
Enable high‑throughput production testing of connectivity devices using a scalable multi‑site production line platform.
