Overview
Description
The MCK-RX14T is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). With this product, the sample code, and QE for Motor that can be downloaded from the Renesas website, you can start evaluating motor control using the RX14T right away.

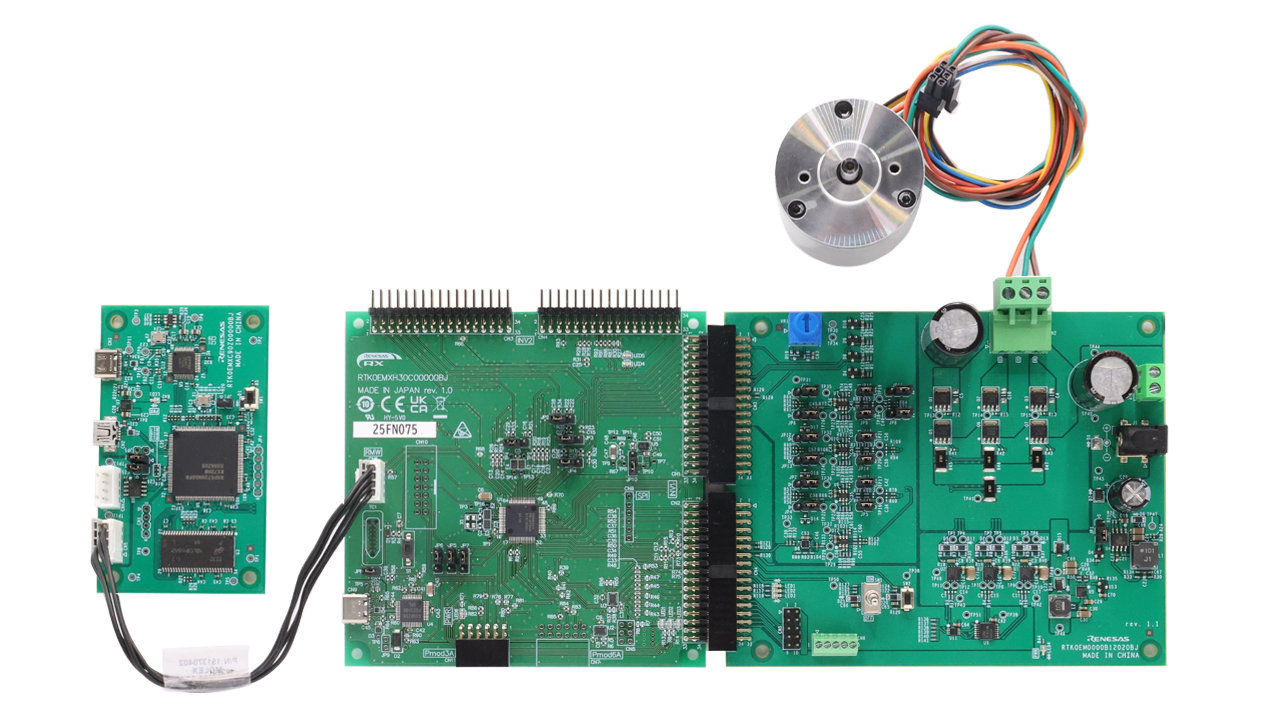

What’s Included
- RX14T CPU board (MCB-RX14T)
- Inverter board (MCI-LV-1)
- Communication board (MC-COM)
- Permanent magnet synchronous motor
- Accessories (cables, standoffs, etc.)
Features
- The CPU board is equipped with the RX14T as the motor control MCU
- Inverter board for 3-phase BLDC motor (48V/10A rating)
- On-board debugger for flash programming of RX14T
- Supports 1-shunt/3-shunt current sensing
- Overcurrent detection
- Supports the motor control development support tool Renesas Motor Workbench
- Motor control evaluation and debugging can be performed safely with the communication board, which isolates the PC and the CPU board electrically
- Supports Hall sensors and encoders
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide |
PDF
1.35 MB
日本語
To connect the MCK-RX14T board, power it on, and operate the switches, simply follow the procedure described in this guide. It also outlines the steps for executing the program pre-installed on the CPU board and explains how to write a new program. By following these instructions, users can easily drive motors using this product.
|
|
| Manual - Development Tools |
PDF
1.60 MB
日本語
MCK-RX14T is a motor control evaluation kit. It supports brushless DC motors with 1-, 2-, or 3-shunt current sensing and includes an overcurrent protection function. The kit is compatible with the Motor Control Development Support Tool (Renesas Motor Workbench). This manual provides essential information for using the board, including specifications and jumper settings, as well as software design details such as function descriptions and pin assignment information for interface connectors.
|
|
| PCB Design Files | MCK-RX14T Design Package
The design files for the MCK-RX14T include the schematics, BOM lists, and Gerber data for the board layout. These files are essential for board design and manufacturing, enabling a more detailed evaluation of the boards.
|
|
| Tool News - Release | PDF 358 KB 日本語 | |
| Application Note |
PDF
1.86 MB
日本語
This sample program enables 120-degree conducting control of an permanent magnet synchronous motor (PMSM).
|
|
| Application Note |
PDF
3.00 MB
日本語
This sample program provides a vector control (Hall Field Oriented Control, FOC) function that uses a threephase permanent magnet synchronous motor (PM motor) equipped with a Hall sensor as a position, speed and rotary direction detector over the whole speed range from standstill to low, middle, and high speed. Hall sensor can be viewed as a low-resolution encoder.
|
|
| Application Note |
PDF
3.21 MB
日本語
This sample project enables vector control of a permanent magnet synchronous motor (PMSM). Current detection for vector control supports both 2-shunt and 1-shunt resistor methods.
|
|
| Application Note |
PDF
3.47 MB
日本語
This sample program enables vector control of an encoder-equipped permanent magnet synchronous motor (PMSM).
|
|
8 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | Renesas |
| QE: Tools for Particular Applications A group of utilities which extends integrated development environment (Tools for Particular Applications: USB, TCP/IP, Bluetooth® low energy, Camera, LCD, Capacitive Touch Sensors, and Current Consumption Tuning etc.)
|
Solution Toolkit | Renesas |
2 items
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | 120-degree Conducting Control of Permanent Magnet Synchronous Motor - For MCK Rev.1.00
This sample program enables 120-degree conducting control of an permanent magnet synchronous motor (PMSM).
|
|
| Sample Code | Hall sensor vector control of PM motors Rev.1.10
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
11.41 MB
日本語
Application:
Industrial
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample program provides a vector control (Hall Field Oriented Control, FOC) function that uses a threephase permanent magnet synchronous motor (PM motor) equipped with a Hall sensor as a position, speed and rotary direction detector over the whole speed range from standstill to low, middle, and high speed. Hall sensor can be viewed as a low-resolution encoder.
|
|
| Sample Code | Sensorless Vector Control of a Permanent Magnet Synchronous Motor - For MCK Rev.1.20
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
33.01 MB
日本語
Application:
Industrial
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample project enables vector control of a permanent magnet synchronous motor (PMSM) using a Renesas RX26T microcontroller. Current detection for vector control supports both 2-shunt and 1-shunt resistor methods.
|
|
| Sample Code | Vector Control for Permanent Magnet Synchronous Motor with Encoder - For MCK Rev.1.20
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
23.96 MB
日本語
Application:
Industrial
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample program enables vector control of an encoder-equipped permanent magnet synchronous motor (PMSM).
|
|
4 items
|
||
Related Boards & Kits
Boards & Kits
Renesas Flexible Motor Control CPU Board for RX14T MCU Group
The MCB-RX14T is a Motor Control CPU board featuring the RX14T 48MHz entry-level 32-bit MCU. Implementing a motor control solution using the RX14T can be easily achieved by combining the MCB-RX14T CPU board with a supported inverter board. Additionally, pairing the MCB-RX14T CPU board with a... Read More
Renesas Flexible Motor Control Inverter Board – Low Voltage 48V/10A for Three-Phase BLDC/PMSM Motor
The MCI-LV-1 is a motor control inverter board that enables easy evaluation of motor control using a permanent magnet synchronous motor (brushless DC motor). By using it in combination with a compatible CPU board, you can start motor control evaluation right away.
Renesas Flexible Motor Control Communication Board
Product Options
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable |
|---|---|---|---|---|
| RTK0EMXH30S00020BJ | Active | In Stock | 1u | $529.41 | N/A |
Videos & Training
RX14T is an entry‑class microcontroller optimized for motor control, delivering notable performance and functional improvements over RX13T and RX23T. The device features a 48MHz RXv2 core, an integrated Trigonometric Function Unit (TFU) for faster math operations, dual 12‑bit high‑speed ADCs, a high‑precision PGA, flexible timer resources, expanded GPIO, and compact package options. Designed for cost‑sensitive yet performance‑driven applications, RX14T enables precise, efficient, and responsive motor control. The video provides an overview of the key capabilities that make RX14T a strong fit for next‑generation motor control systems.
