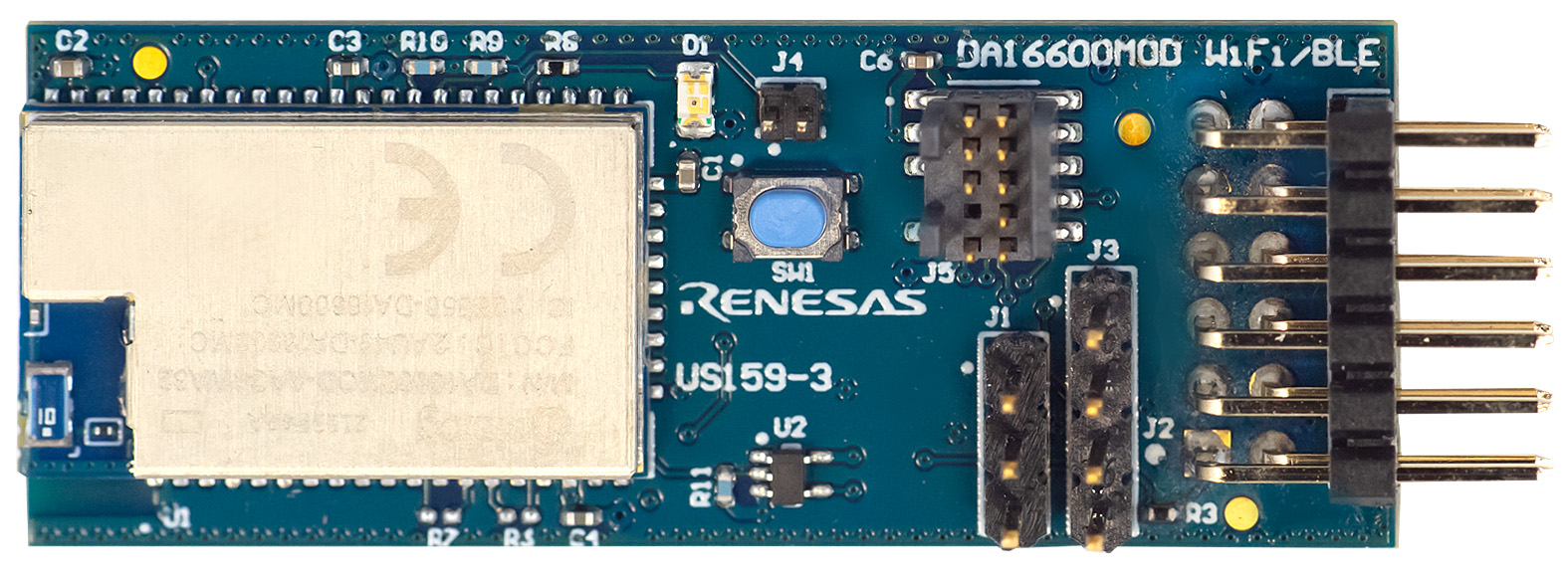

The US159-DA16600EVZ is a highly integrated ultra-low-power Wi-Fi + Bluetooth® Low Energy Combo Pmod module that provides a convenient way to add both low power Wi-Fi and low power BLE functionality to your device. The DA16600 integrates together the low power Wi-Fi DA16200 SoC and the low power Bluetooth LE DA14531 SoC on a single module. Together they deliver long battery life and low power consumption in a convenient form factor. As a single integrated system, functions such as Wi-Fi/BLE coexistence and provisioning Wi-Fi through the BLE connection come standard.

The US159-DA16600EVZ features a Type 3A Pmod™ connector and incorporates the DA16600 Module, combining low power Wi-Fi with low power Bluetooth capability in a single module. Thanks to the standard connector and software support, the US159-DA16600EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.


  • DA16600MOD-AAC4WA32 Module
    • 3.3V supply voltage
    • Integrated chip antenna
    • Cortex-M4F+ @ 30-160 MHz and Cortex M0+ @ 16 MHz
    • 802.11b/g/n radio PHY, 2.4GHz
    • Bluetooth 5.1 core qualified
    • SoC runs full OS & TCP/IP stack
    • Memory: 256 kB ROM, 512kB RAM, 8kB OTP, 48B retention memory & 32Mb SPI Flash
    • RF regulatory certifications – FCC, IC, CE, KC, TELEC, SRRC
    • Wi-Fi Alliance certifications – Wi-Fi CERTIFIED™ b, g, n; WPA™, WPA2™, WPA3™
  • Standardized Type 3A Pmod™ connector supports Expanded UART interface
  • LED (D1) to aid in user software debug
  • 10-pin 1.27mm pitch Arm Cortex-Debug connector (J2) for software development and debug support
