S7G2

Renesas MCU Guide

Download the mobile app

Overview

Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3 to 4 MB of flash memory and 640 KB of SRAM. Rich in features, it includes a Graphics LCD Controller, 2D Drawing Engine, Capacitive Touch Sensing Unit, advanced analog, Ethernet MAC Controller with IEEE 1588 PTP, USB 2.0 High-Speed and Full-Speed, SDHI, Quad SPI, and safety and security features, to handle a wide range of complexity.

Synergy Software Package (SSP)

Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas.

Download SSP

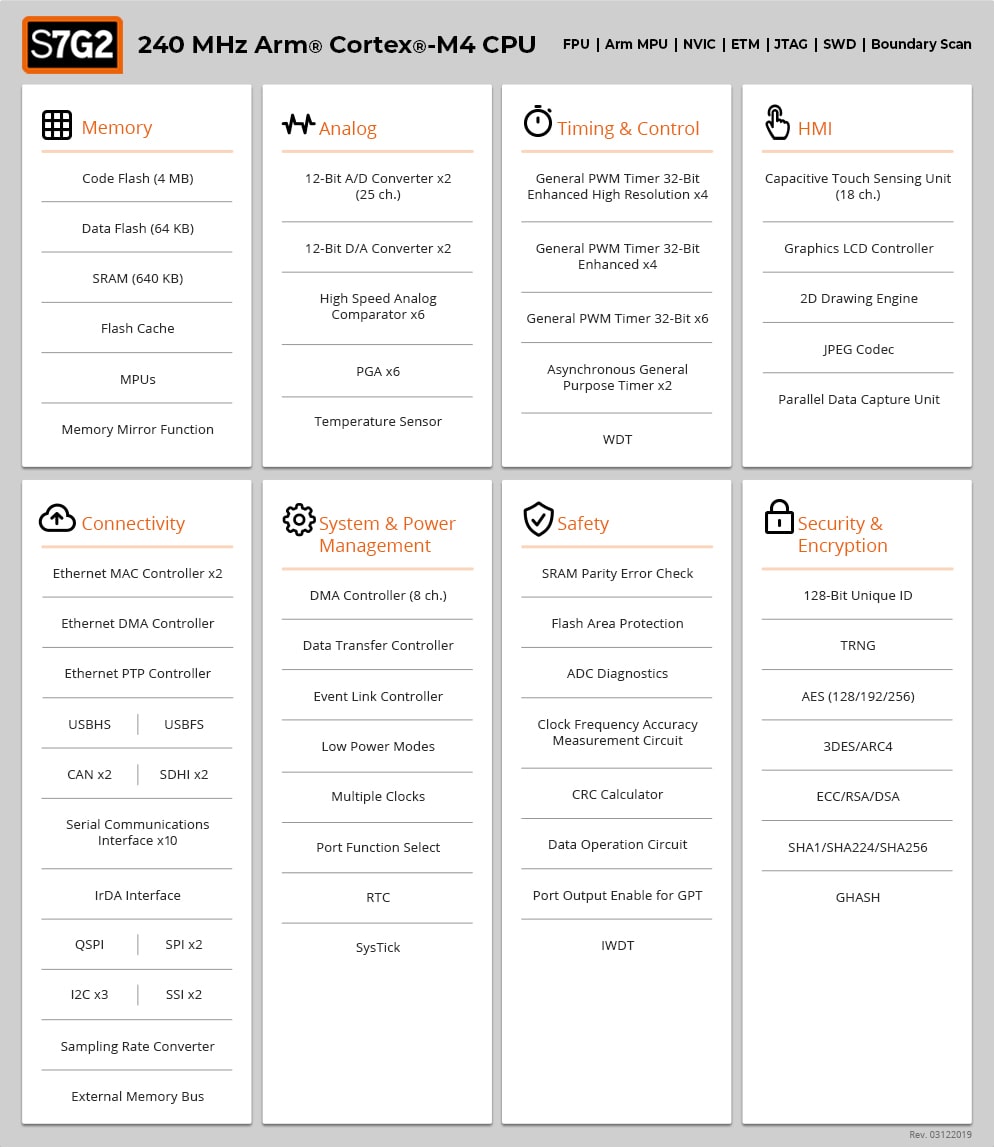

240 MHz Arm® Cortex®-M4 CPU
Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy
Graphics LCD Controller
2D Drawing Engine
Capacitive Touch Sensing Unit
Advanced analog
Ethernet MAC Controller with IEEE 1588 PTP
USB 2.0 High-Speed and Full-Speed
SDHI
Quad SPI
Safety and security features, to handle a wide range of complexity

CPAP Flow Sensor

Applications

Industrial Process Control
