The RZ/T1 Group of real-time Arm® Cortex®-R4 based microprocessors (MPUs) enables the control of a large matrix LED backlighting system for state-of-the-art TVs in combination with our high precision iW7039 32-channel LED backlight driver. The integrated driver feedback channel allows for the control of the LED supply voltage level to dynamically minimize the overall power consumption. The digital system and interface power is provided by a DA9061 processor power management IC (PMIC) and high-efficiency buck converter. The AT25QLxx family of QSPI flash memory is used for software and brightness mapping storage. Sensors such as the HS3004 (temperature) and OB1203 (RGB-light) help to optimize the system performance under varying conditions.

System Benefits​:

  • Flexible MPU-based, software-controlled, large matrix luminance and chrominance control
  • RZ/T1 MPU for minimizing propagation delay between LED adjustment and video content to minimize video buffer size
  • Dynamic LED supply voltage adjustment to minimize power loss
  • Highly integrated and efficient system PMIC
  • Single variable voltage rail from LLC to power LEDs and system power
  • Temperature and ambient light sensors to optimize system performance

Target Applications:

  • Large screen mini-LED backlight TVs and monitors

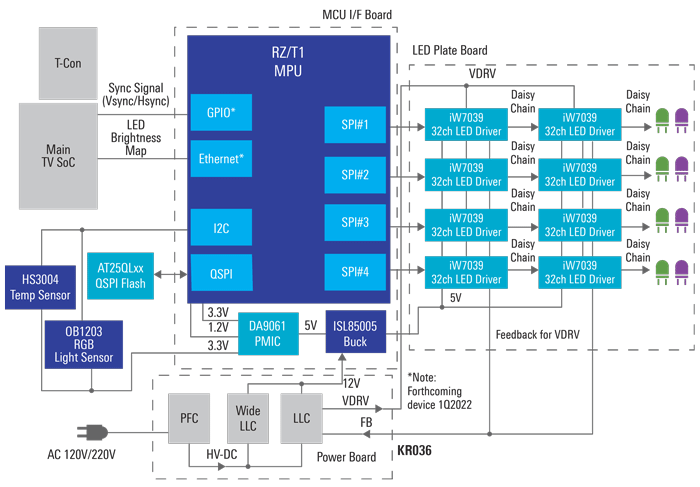

Mini-LED TV Backlight Unit - Large Matrix
Legend for Renesas/Dialog System Diagrams



Related Products

Product Description Featured Document Ordering

Biosensor
OB1203 Multi-Channel Light Sensor, CIE 1931 XYZ (RGB) Accurate Datasheet Buy/Sample

Humidity Sensor
HS3004 High-Performance Relative Humidity and Temperature Sensor Datasheet Buy/Sample

LED Backlighting Driver
iW7039 High Precision, 32-Channel LED Backlighting Driver with Integrated Current Sinks for High Dynamic Range (HDR) LCD Displays Product Summary Buy/Sample

Memory
AT25QLxxx 1.8V Quad SPI Flash Memory Product Overview Buy/Sample

Microprocessor
RZ/T1 Arm® Cortex®-R4 based MPU for Real-Time Control Datasheet Buy/Sample

Power Management IC (PMIC)
DA9061 Flexible, Multi-Rail System-on-Chip (SoC) PMIC with DVS Support Datasheet Contact Sales
