Programming Boards for VersaClock 7 Programmable Clock

RC21012_31012-PROG

Active
Order Now

The VersaClock® 7 programmer board is made to ease the programming of RC21012 and RC31012 blank devices. With the on-board USB interface, RICBox™ Graphical User Interface (GUI) can be used to communicate with the blank device in the socket for configuration and programming.

Features

  • Programmer board is powered using USB port.
  • Programmer board uses RICBox™ GUI – to program the blank parts
  • Program VersaClock 7 –RCx1008, RC31008 blank part in the socket
RC21012_31012-PROG Board
RC21012_31012-PROG Board - Top

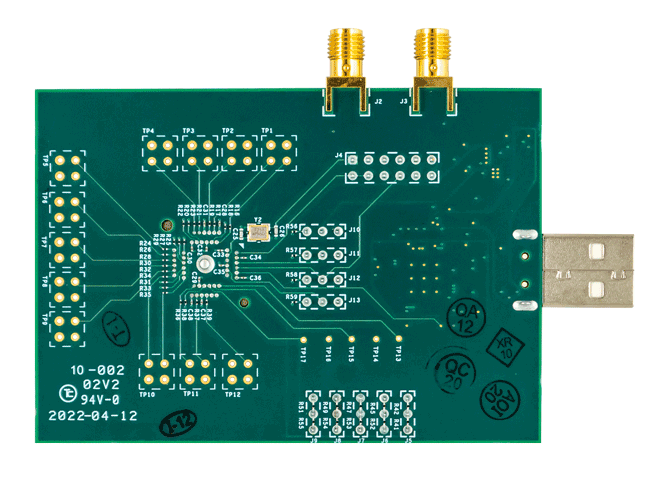

RC21012_31012-PROG Board - Bottom
RC21012_31012-PROG Board
RC21012_31012-PROG Board - Top
RC21012_31012-PROG Board - Bottom

Products in the Design

3D illustration featuring top and bottom views of LGA IC chip package with 48 lead count.
Clock Generation
RC210 Active
VersaClock 7 Programmable Clock Generator Family
Datasheet
3D illustration featuring top and bottom views of LGA IC chip package with 48 lead count.
Jitter Attenuators
RC310 Active
VersaClock 7 Programmable Jitter Attenuator Family
Datasheet

Sample & Buy

RC21012_31012-PROG Board

RC21012_31012-PROG

Active
Pb (Lead) Free:No
ECCN (US):EAR99
HTS (US):8473.30.1180
1u | $250.00Budgetary Price
