Overview
Description

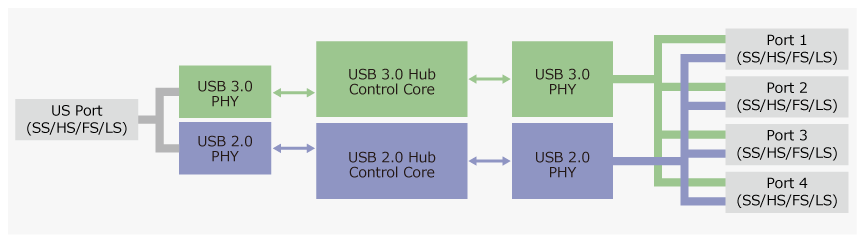

The µPD720210 is a 4-Port USB 3.0 hub controller, which complies with Universal Serial Bus 3.0 Specification and is 100% compatible with Renesas’ industry-standard host controllers. The controller provides four downstream USB ports. Each of these ports supports is fully backward compatible with all previous versions of USB, LS (Low-Speed) / FS (Full-Speed) / HS (High-Speed) / SS (SuperSpeed) operation.
μPD720210 comes in a 76-pin QFN package. A few of the benefits that this device provides to system designers are:
- The best compatibility with Renesas industry-leading USB 3.0 host controller
- Low power consumption. In low-power standby mode, the device only consumes 10mW
- Overall system bill of material cost reduction through the integration of commonly required external components such as voltage regulators
Features
- Interface standard: USB 3.0
- USB ports: 1 upstream port, 4 downstream ports
- VDD: 3.3V, 1.05V
- Clock: 24MHz Xtal clock input
- Package: 76-pin QFN (9mm x 9mm)
- Ta: 0 °C to 70 °C
Applications
Applications
- Standalone hub, monitor hub, PC docking station
- Hub integrated in PC
- Digital TV, Blu-ray recorder, Set-top box
- USB storage device, network attached storage (NAS)
