概要
説明
The CN028-BIDIRDPSEVZ evaluation kit combines the CN028-BIDIRDPSPFCEVZ and CN028-BIDIRDPSDABEVZ boards to demonstrate high-performance bidirectional power conversion. Our CN028-BIDIRDPSPFCEVZ board delivers 3.6kW of AC/DC power using digital control and a totem-pole bridgeless PFC topology, enabling efficient continuous conduction mode operation at high switching frequencies. The CN028-BIDIRDPSDABEVZ board provides 3.6kW of isolated DC/DC conversion with a dual active bridge and advanced triple phase shift control, achieving soft switching, high efficiency, wide voltage regulation, and seamless bidirectional operation.
特長

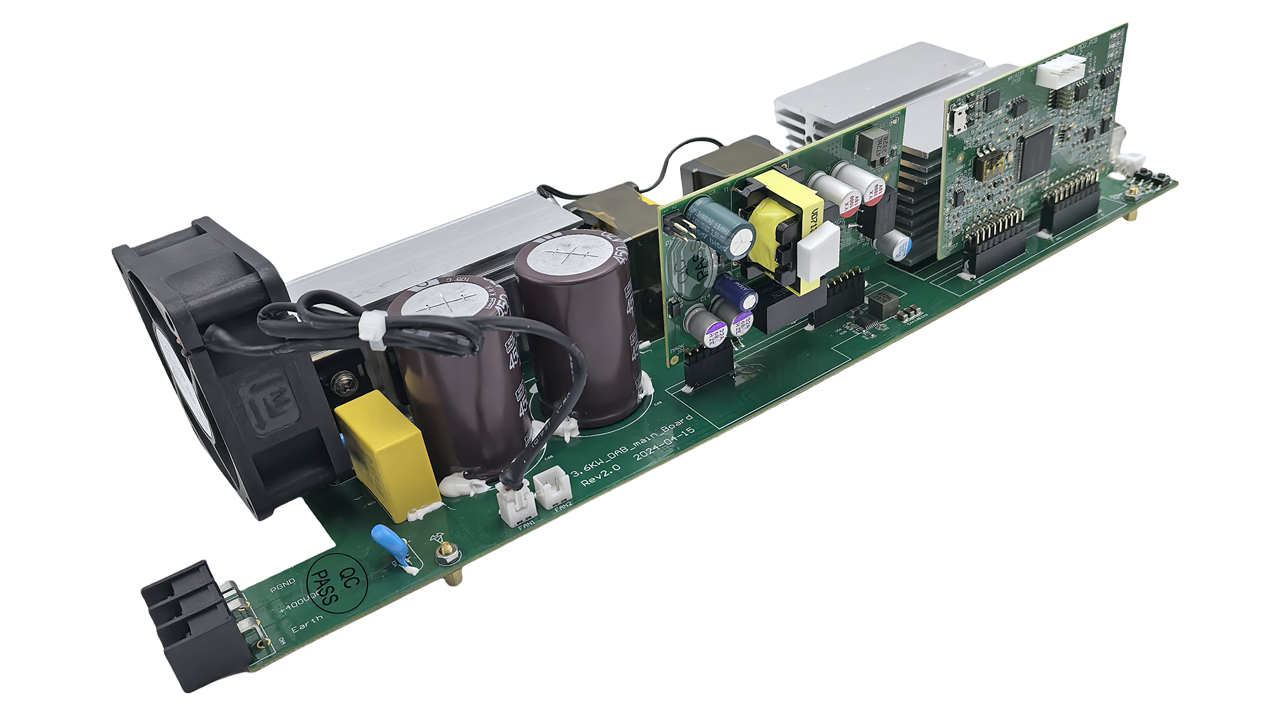

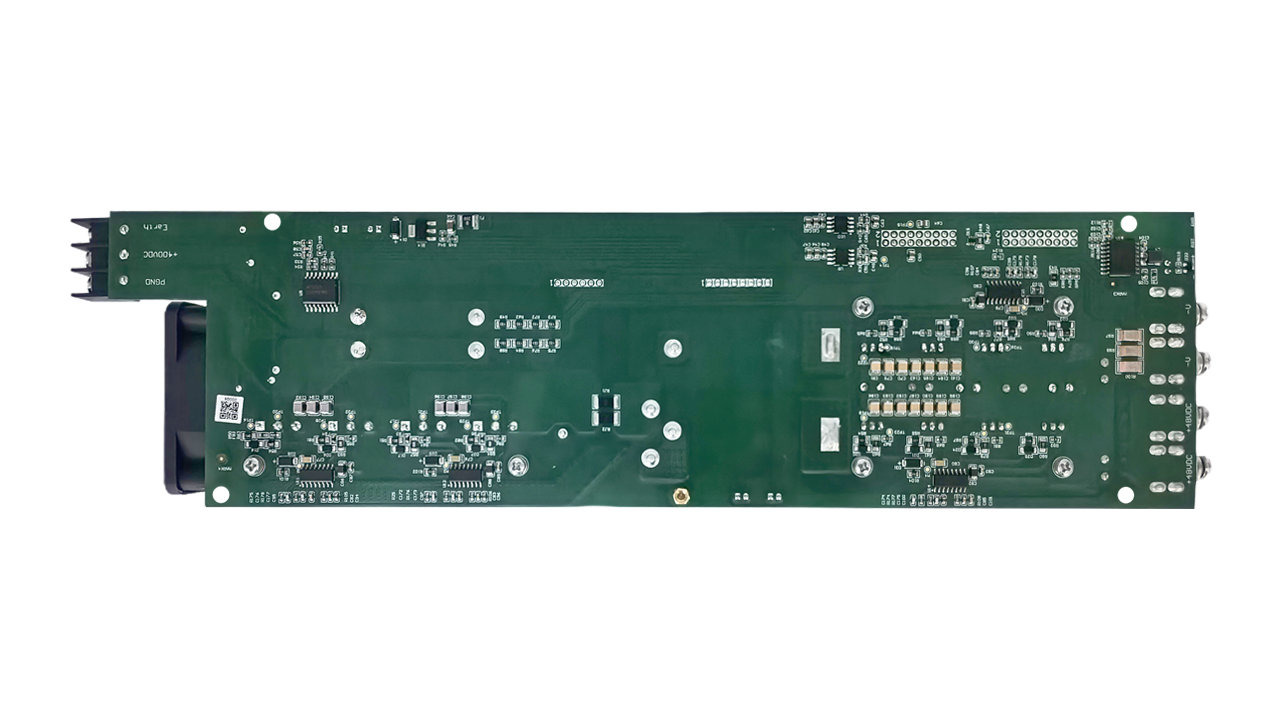

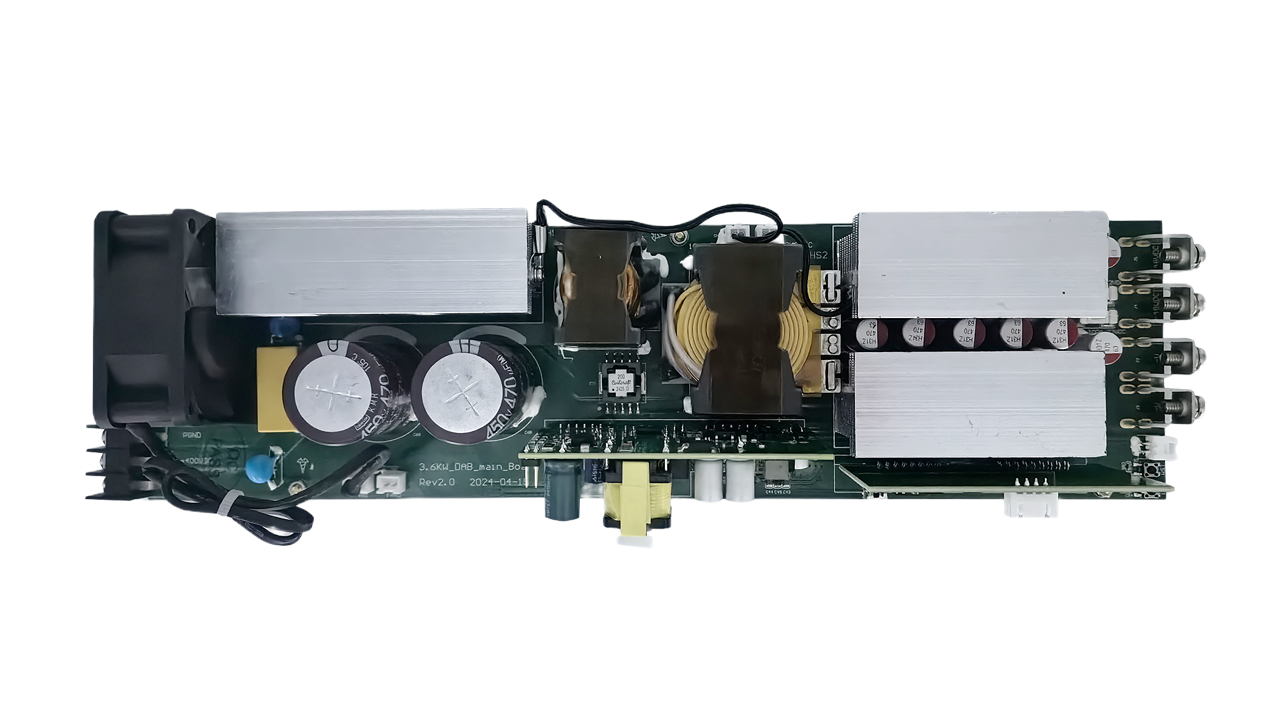

- CN028-BIDIRDPSDABEVZ (3.6kW bidirectional isolated DC/DC)
- Dual active bridge (DAB) with digital control
- Advanced triple phase shift (TPS) soft switching for high efficiency
- Wide voltage regulation range with seamless bidirectional operation
- Simplified resonant network (single inductor) for easy magnetic design
- Four working modes: Primary/Secondary CV and CC

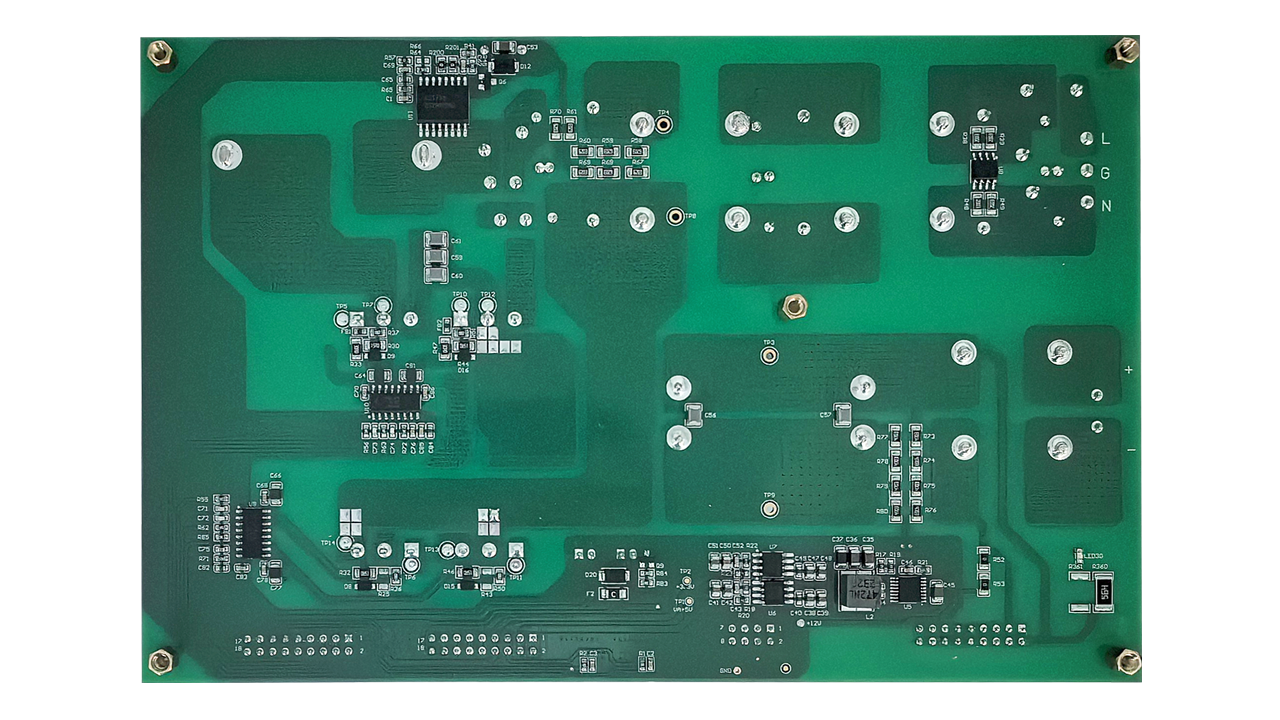

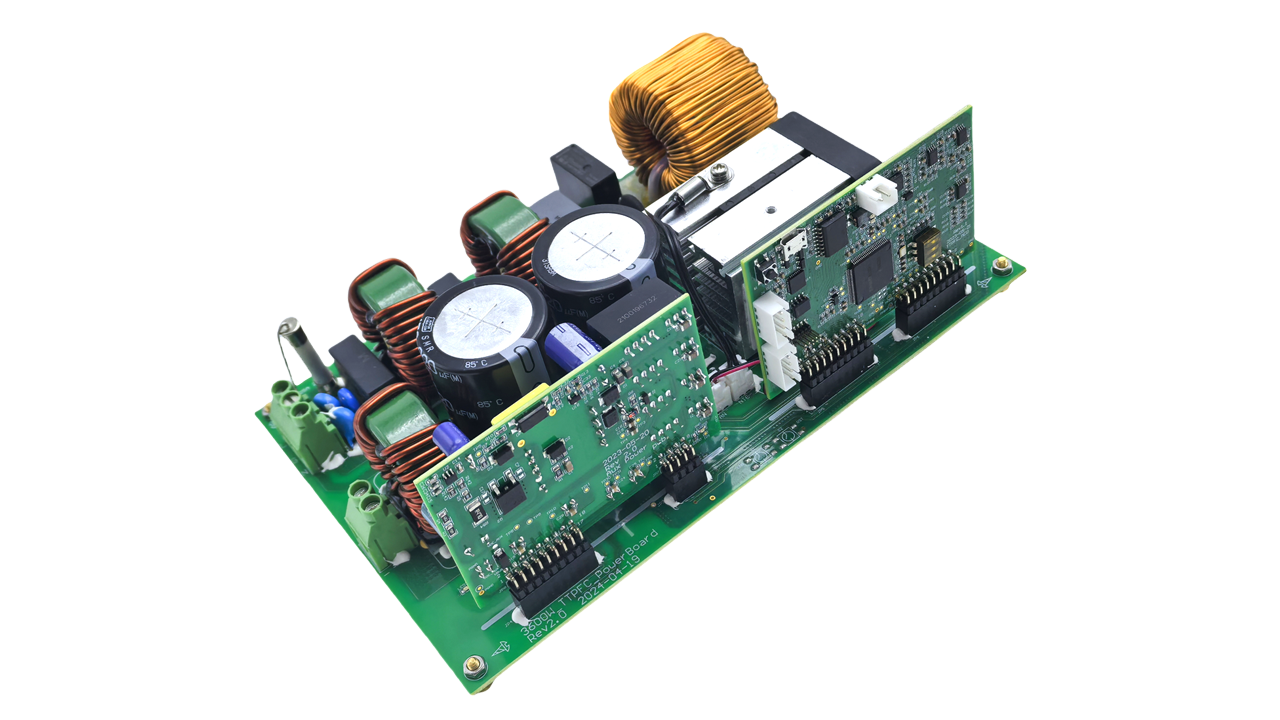

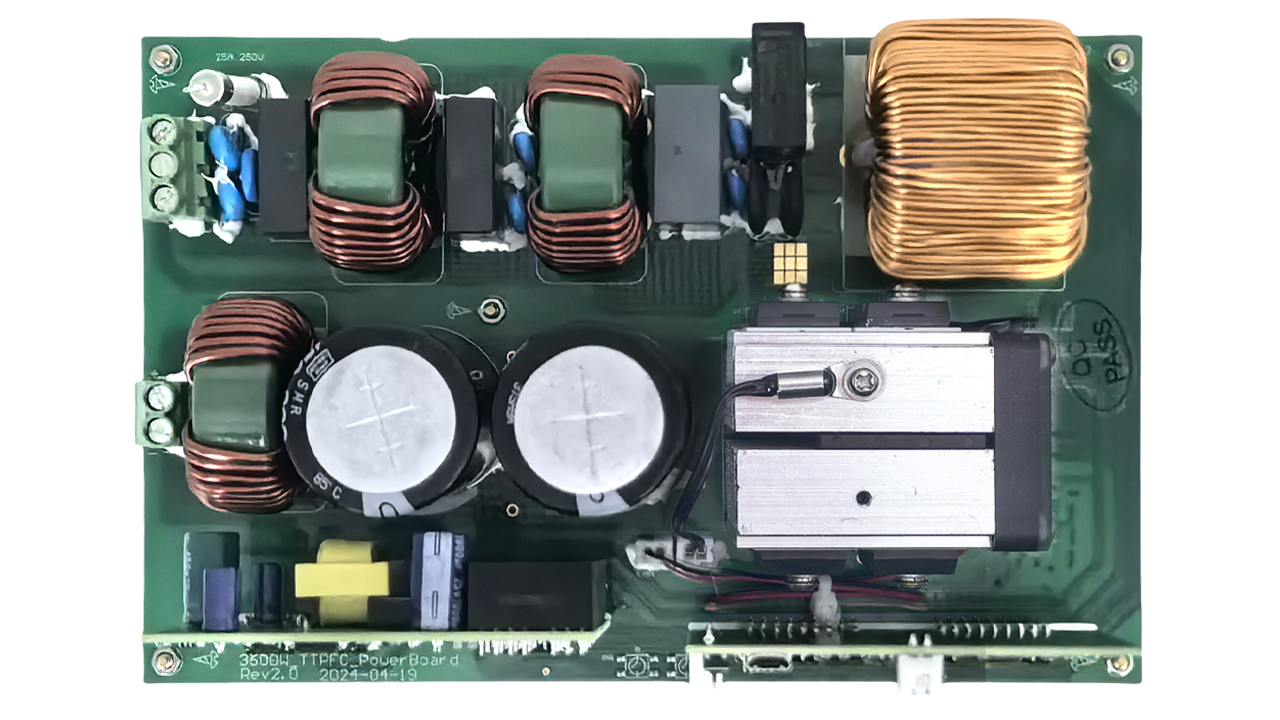

- CN028-BIDIRDPSPFCEVZ (3.6kW bidirectional AC/DC)
- Totem-pole bridgeless power factor correction (PFC)
- Continuous conduction mode (CCM) for efficient high-frequency operation
- Three working modes: PFC, Grid-tied inverter, Grid-off inverter
アプリケーション
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| クイックスタートガイド | PDF 4.70 MB | |
| マニュアル－開発ツール | PDF 5.02 MB | |
| マニュアル－開発ツール | PDF 4.36 MB | |
3件
|
||
