48MHz Arm® Cortex®-M23 Entry Level General-Purpose Microcontroller
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The RA2E1 group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm® Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas’ low power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2E1 group supports a wide operating voltage range of 1.6V to 5.5V and a large selection of packages such as LQFP, QFN, LGA, BGA, and WLCSP. The RA2E1 provides pin and peripheral compatibility with the RA2L1 group and is ideal for battery-operated applications and other systems requiring high performance and low-energy consumption in space-constrained applications.

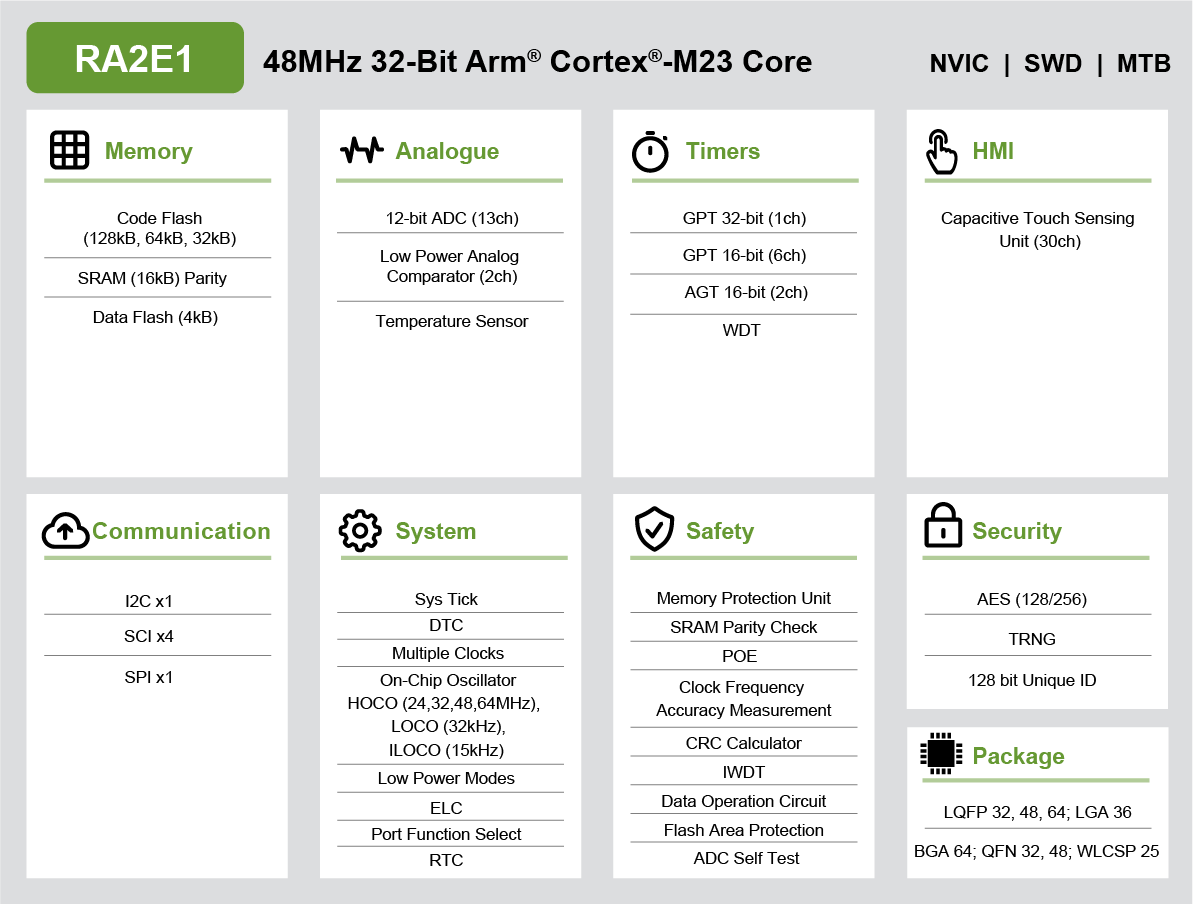

Features
- 48MHz Arm® Cortex®-M23
- Up to 128kB Flash memory and 16kB SRAM
- 4kB Data Flash to store data as in EEPROM
- Scalable from 25-pin to 64-pin packages
- Wide operating voltage range of 1.6V to 5.5V
- Enhanced Capacitive Touch Sensing Unit (CTSU)
- 12-bit ADC, LPACMP, temperature sensor
- 32-bit general PWM timer, 16-bit general PWM timer, low power asynchronous general-purpose timer
- RTC
- SCI (UART, simple SPI, simple I2C)
- SPI/ I2C multi-master interface
- Safety
- Security and encryption
- A large selection of packages (LQFP, QFN, LGA, BGA, WLCSP)
Applications
Applications
- General purpose
- Consumer applications
- Home appliances
- Industrial automation
- Building automation
- Medical and healthcare
Documentation
| Title | Type | Date | |
|---|---|---|---|
Datasheet
|
|||
Manual - Hardware
|
|||
PDF67 KB
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF78 KB Related Files:
|
Application Note
|
||
PDF656 KB
|
Application Note
|
||
PDF606 KB
|
Application Note
|
||
PDF461 KB
|
Application Note
|
||
PDF311 KB
|
Application Note
|
||
PDF994 KB Related Files:
|
Application Note
|
||
PDF245 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
PDF658 KB
|
Application Note
|
||
Application Note
|
|||
PDF1.74 MB Related Files:
|
Application Note
|
||
PDF2.02 MB
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
PDF3.00 MB Related Files:
|
Application Note
|
||
PDF743 KB
|
Application Note
|
||
PDF2.53 MB Related Files:
|
Application Note
|
||
Application Note
|
|||
PDF1.36 MB Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
PDF160 KB
|
Application Note
|
||
PDF670 KB
|
Application Note
|
||
PDF4.37 MB
|
Application Note
|
||
PDF57 KB
|
Application Note
|
||
PDF1.50 MB Related Files:
|
Application Note
|
||
PDF1.45 MB Related Files:
|
Application Note
|
||
PDF2.37 MB
|
Application Note
|
||
PDF747 KB
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
PDF2.45 MB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF1.78 MB Related Files:
|
Application Note
|
||
PDF645 KB
|
Application Note
|
||
Brochure
|
|||
Brochure
|
|||
Brochure
|
|||
PDF143 KB
|
Certificate
|
||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
General Reliability Literature
|
|||
PDF652 KB
|
Guide
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
PDF1.29 MB
|
Manual - Development Tools
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
PDF1.69 MB
|
Manual - Software
|
||
PDF188 KB
|
Manual - Software
|
||
PDF168 KB
|
Other
|
||
Other
|
|||
Product Change Notice
|
|||
Product Change Notice
|
|||
Product Change Notice
|
|||
PDF436 KB
|
Product Reliability Report
|
||
Quick Start Guide
|
|||
Quick Start Guide
|
|||
Quick Start Guide
|
|||
Release Note
|
|||
PDF3.02 MB
|
Release Note
|
||
Release Note
|
|||
PDF2.64 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
PDF2.87 MB
|
Release Note
|
||
PDF2.32 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
PDF3.00 MB
|
Release Note
|
||
Release Note
|
|||
Release Note
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Technical Update
|
|||
Tool News - Note
|
|||
Tool News - Note
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
PDF289 KB
|
White Paper
|
||
White Paper
|
|||
White Paper
|
Design & Development
Software & Tools
Software & Tools
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]Downloads: | Emulator | Renesas |
| e² studio -information for RA FamilyEclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ] | IDE and Coding Tool | Renesas |
| E2 Emulator (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RE, RX, RL78, RH850, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| E2 Emulator Lite (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RX, RL78, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| PG-FP6Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] | Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI)Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] | Programmer (Unit/SW) | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. Downloads: | Sensor | Renesas |
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.Downloads:
Securing Data at Rest Utilizing the Renesas Security MPUSecuring your IP and Protecting Sensitive DataSecurity for the Connected WorldRA Azure IoT Cloud Connectivity SolutionMigrating Projects to New FSP Version
EK-RA2E1 Example Project BundleLow Power Application (Use of ADC, DTC and ELC at Snooze mode) for FPB-RA2E1 and FPB-RA2E2 – Application ProjectSecure Bootloader for RA2 MCU Series – Application ProjectConverting Applications from e² studio to IAR or Keil for RA – Application NoteRenesas RA Family Exception Handling - Application ProjectEK-RA2E1 Example Project Bundle
|
Software Package | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch SensorsIn developing embedded system using the capacitive touch sensor of RA family and RX family MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] Downloads: | Solution Toolkit | Renesas |
| RA Smart ConfiguratorThe Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain. | Solution Toolkit | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP53.60 MB Related Files:
Application: IoT Applications Compiler: CC-RX, CC-RL, ICCRX, ICCRL78, GNURL78, GNURX, ICCARM, GNU ARM Embedded Function: Communication Interface, Application Example IDE: e2 studio, IAR EWRX, IAR EWRL78, IAR EWARM |
Sample Code |
||
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP50.97 MB Related Files:
Application: IoT Applications Compiler: CC-RL, CC-RX, GNU ARM Embedded, GNURX, ICCARM, ICCRX, ICCRL78, GNURL78 Function: Communication Interface, Application Example IDE: CS+, e2 studio, IAR EWRX, IAR EWARM, IAR EWRL78 |
Sample Code |
||
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;] ZIP55.36 MB Related Files:
Application: IoT Applications Compiler: CC-RX, CC-RL, ICCRX, GNU ARM Embedded, ICCARM, GNURX, ICCRL78, GNURL78 Function: Communication Interface, Application Example IDE: e2 studio, IAR EWRX, IAR EWARM, IAR EWRL78 |
Sample Code |
||
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP179.17 MB Related Files:
Application: IoT Applications Compiler: CC-RX, CC-RL, ICCRX, ICCRL78, GNURL78, GNURX, ICCARM, GNU ARM Embedded Function: Communication Interface, Application Example IDE: e2 studio, IAR EWRX, IAR EWRL78, IAR EWARM |
Sample Code |
||
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v3.6.0] [Board=EK-RA2E1] ZIP3.70 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
ZIP1.42 MB Related Files:
|
Sample Code |
||
ZIP6.86 MB Related Files:
|
Sample Code |
||
Related Files:
|
Sample Code |
||
This application project discusses the considerations for securing Data at Rest in an embedded system and
provides guidelines on how to use the Security MPU hardware feature of the RA Family MCUs to implement
a secure Data at Rest solution. ZIP3.45 MB Related Files:
Compiler: ARMCC IDE: e2 studio |
Sample Code |
||
[Toolchains=GCC Arm Embedded|10.3.1.20210824] [Software=RA FSP|v3.7.0] [Board=FPB-RA2E1;FPB-RA2E2] ZIP2.89 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
The application project uses the Flexible Software Package (FSP) of
the RA family|| the GNU GCC compiler|| and the integrated development environment e2 studio IDE to
demonstrate an exception handling flow for multiple possible faults. ZIP2.69 MB Related Files:
Compiler: GNU ARM Embedded IDE: e2 studio, Keil |
Sample Code |
||
[Toolchains=GCC Arm Embedded|9.3.1.20200408] [Software=RA FSP|v3.4.0] [Board=EK-RA2E1] ZIP5.60 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
[Toolchains=GCC Arm Embedded|8.3.1.20190703] [Software=RA FSP|v3.4.0] [Board=FPB-RA2E1] ZIP2.20 MB Related Files:
Compiler: GNU Arm Embedded IDE: e2 studio |
Sample Code |
||
ZIP2.55 MB Related Files:
|
Sample Code |
||
ZIP9.12 MB |
Sample Code |
||
ZIP2.44 MB Related Files:
|
Sample Code |
||
ZIP2.44 MB Related Files:
|
Sample Code |
||
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v1.1.0] Related Files:
Compiler: GNU Arm Embedded, IAR Compiler for Arm Function: Security IDE: e2 studio, IAR EWARM |
Sample Code |
Boards & Kits
Boards & Kits
Evaluation Kit for RA2E1 MCU Group
The EK-RA2E1 evaluation kit enables users to effortlessly evaluate the features of the RA2E1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
RA2E1 Fast Prototyping Board
The RA2E1 Fast Prototyping Board comes equipped with a R7FA2E1A93CFM microcontroller and is an evaluation board specialized for prototype development for a variety of...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
PLP |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
Low-Power Analog Comparator (ch) (#) |
Bit Size |
CPU |
Temp. Range |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 128 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tape & Reel | ||
| N/A | 128 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | ||
| N/A | 32 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tape & Reel | ||
| N/A | 128 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | ||
| N/A | 128 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 64 | BGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tape & Reel | ||
| N/A | 128 | 4 | 16 | 64 | BGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 128 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tape & Reel | ||
| N/A | 64 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | Get Samples, | |
| N/A | 32 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 64 | BGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | ||
| N/A | 64 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tray | ||
| N/A | 64 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 105°C | Tape & Reel | ||
| N/A | 32 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 25 | S-UFBGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 21 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 8-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tape & Reel | ||
| N/A | 64 | 4 | 16 | 36 | LGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 30 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 12-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | ||
| N/A | 64 | 4 | 16 | 64 | BGA | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | ||
| N/A | 64 | 4 | 16 | 32 | QFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 48 | HWQFN | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 48 | LFQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 40 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| N/A | 64 | 4 | 16 | 64 | LQFP | 1.6 - 5.5 | 48 | Yes | Yes | DTC | 56 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 13-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray | Get Samples, | |
| 2037 Dec | 32 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | No | No | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tray (Full Carton) | ||
| 2037 Dec | 32 | 4 | 16 | 32 | LQFP | 1.6 - 5.5 | 48 | No | No | DTC | 26 | 16-bit Asynchronous Timer x 2, 16-bit x 6-ch, 32-bit x 1-ch | 12-bit x 10-ch | 2 | 32 | ARM CM23 | -40 to 85°C | Tape & Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
RA2E1 IO-Link Pressure Sensor Solution
Video List
News & Blog Posts
| RA2E1 IO-Link Pressure Sensor Solution Enables Application Miniaturization | Blog Post | Feb 15, 2023 | |
| Would You Like to Use a LoRa®-Based Solution from Renesas to Develop IoT Applications with Low Power Consumption? | Blog Post | Oct 25, 2022 | |
| Achieve Ultra-Lower Designs Using the RA2E1 MCU and FSP | Blog Post | Dec 1, 2021 | |
| Get Where You’re Going with the Official Renesas RA Family Guide | Blog Post | Jun 29, 2021 | |
| New Entry-Level RA Family RA2E1 MCU Group for Low-Cost, Low Power and Space-Constrained Applications | Blog Post | Jan 23, 2021 |
Pin Count / Memory Size
| Flash: 128kB RAM: 16kB |
● | ● | ● | ● | ● | ● | ● | ● | ● |
|---|---|---|---|---|---|---|---|---|---|
| Flash: 64kB RAM: 16kB |
● | ● | ● | ● | ● | ● | ● | ● | ● |
| Flash: 32kB RAM: 16kB |
● | ● | ● | ● | ● | ● | |||
| Pin Count Package Size Pitch |
25-pin WLBGA 2.14x2.27mm 0.4mm |
32-pin LQFP 7x7mm 0.8mm |
32-pin QFN 5x5mm 0.5mm |
36-pin LGA 4x4mm 0.5mm |
48-pin QFN 7x7mm 0.5mm |
48-pin LQFP 7x7mm 0.5mm |
64-pin BGA 4x4mm 0.4mm |
64-pin LQFP 14x14mm 0.8mm |
64-pin LQFP 10x10mm 0.5mm |
Lab on the Cloud
Renesas' Lab on the Cloud is an online environment where Renesas solutions, including popular evaluation boards, winning combinations and software, are hosted in a remote lab that customers access and test online.
Touchless Sensor Solution
This solution is suitable for home appliances and provides non-contact touch operation at various programmed distances using the RA2E1 32-bit MCU.
