Overview

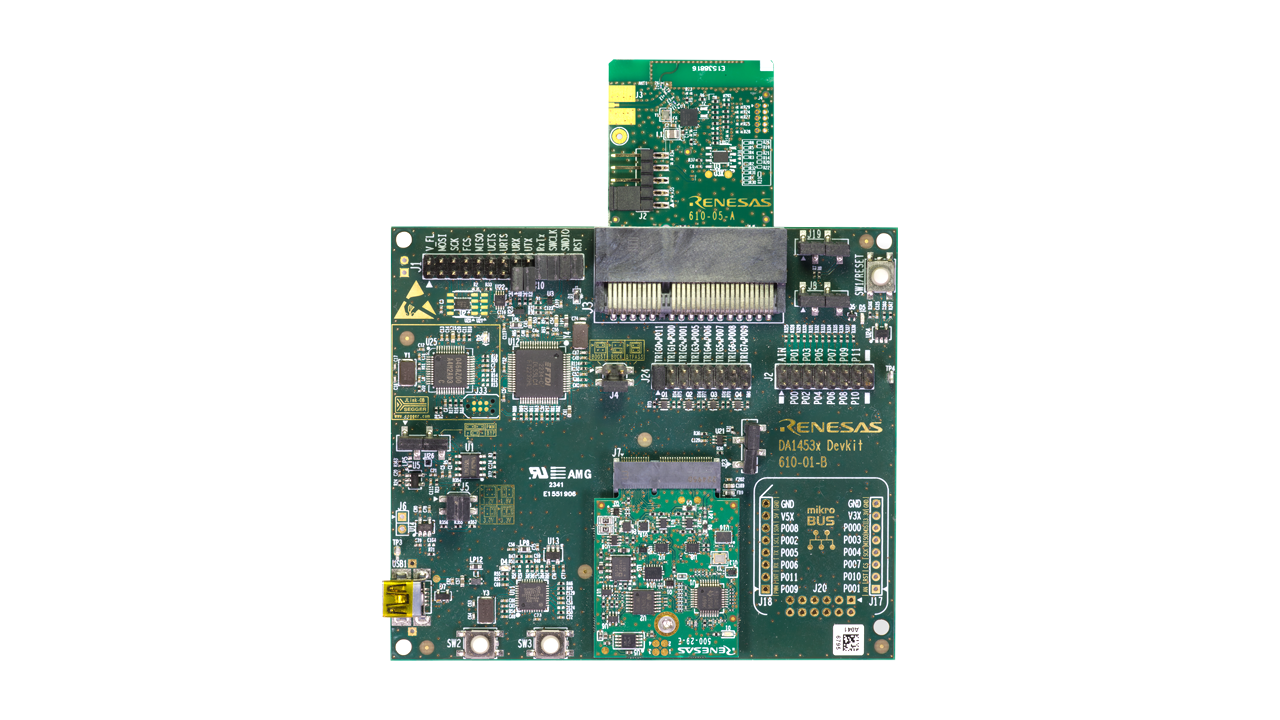

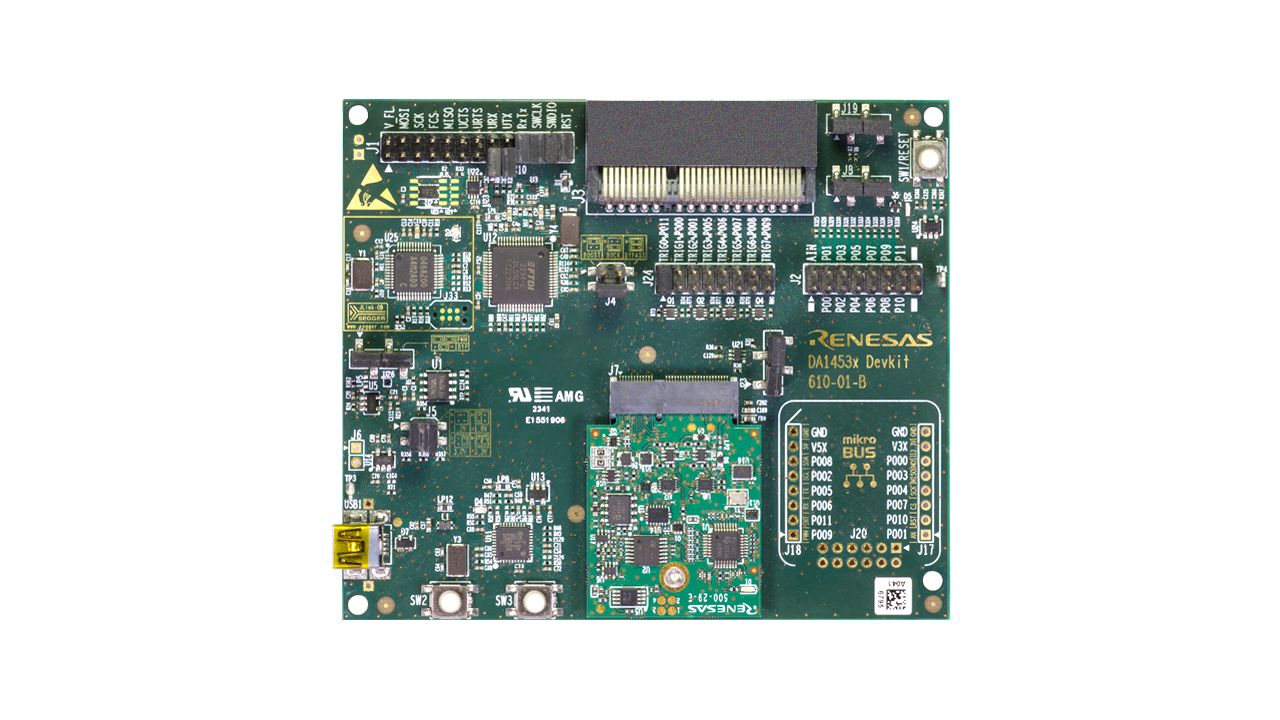

The DA14533-00RNDEVKT-P Bluetooth® Low Energy Development Kit Pro for the DA14533 SmartBond TINY™ SoC includes a motherboard, daughterboard, and cables.
This kit provides users with a comprehensive set of capabilities for development and testing. It supports software development and programming of the DA14533 via JTAG or UART using the DA1453x SDK. Users can perform RF characterization and hardware prototyping, as well as conduct power measurements using PMM2 and two auxiliary voltage/current measurement channels. The kit also enables monitoring of up to eight digital inputs ranging from 0.9V to 5V and supports connection to MikroBUS™ modules for expanded functionality.
The DA14533 is an ultra-low power, AEC-Q100 Grade 2 qualified system-on-chip (SoC) that integrates a 2.4GHz transceiver and an Arm® Cortex®-M0+ MCU with 64kB of RAM and 12kB of one-time programmable (OTP) memory.
Features
- Motherboard, SoC daughterboard, USB cable, and quick start guide
- Easily attached/detached daughterboards
- Integrated power measurement module
- Can be powered from a USB power bank
- DC/DC buck or low-dropout regulator (LDO) mode operation
- MikroBUS™ and Pmod™ headers
- SEGGER J-Link debugger
Applications
Vehicle Control Systems
Sample & Buy
DA14533-00RNDEVKT-P
Active| SPQ: | 1 |
| Pb (Lead) Free: | Yes |
| Carrier Type: | Box |
Add-on Hardware
SmartBond TINY DA14533 Bluetooth Low Energy SoC Development Kit Pro Daughterboard
Application Block Diagrams
 | Wireless EV Battery Management System Renesas' wireless BMS removes wire harnesses, boosts flexibility, and uses Bluetooth LE for standardization. |
