RBE093N08R1SZN2

Features

VDSS = 80V
Standard-level gate drive voltage: V_GS(th) = 2.0V ~ 4.0V
Super low on-state resistance: R_DS(on) = 9.3mΩ max
ID = 50A
Low input capacitance
Low thermal resistance
Package: μSO8-FL (3x3)
100% Avalanche tested
Pb-free lead plating: RoHS compliant
MSL1 classified according to IPC/JEDEC J-STD-020

Description

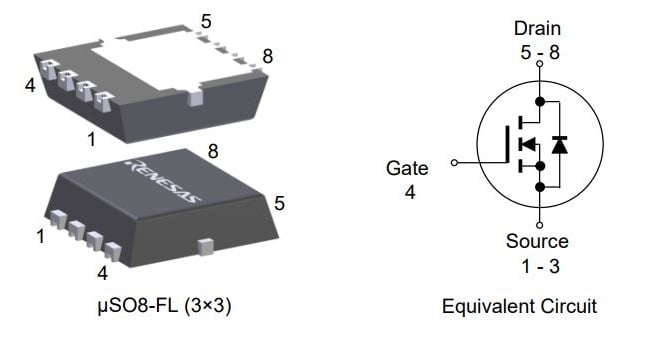

The RBE093N08R1SZN2 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a 3x3 μSO8-FL package. The μSO8-FL package features ultra compact, leadless designs with Wettable Flanks to support enhanced thermal performance, reliability, and ease of assembly.

Renesas' REXFET-1 split-gate technology is well-suited for applications that require low R_DS(on) and switching capability, making it ideal for high-power and high-frequency applications.

Parameters

Attributes	Value
Qualification Level	Industrial
Nch/Pch	Nch
Channels (#)	1
Standard Pkg. Type	μSO8-FL 3x3 BSC
Gate Level	Standard
VDSS (Max) (V)	80
ID (A)	50
RDS (ON) (Max) @10V (mohm)	9.3
Pch (W)	57
Ciss (Typical) (pF)	1800
Qg typ (nC)	28
Series Name	REXFET-1

Package Options

Pkg. Type	Pkg. Dimensions (mm)	Lead Count (#)
uSO8-FL	3.3 x 3.3 x 0.85	8

Product Comparison

	RBE093N08R1SZN2	RBA50N08EANS-5UA09	RBE056N08R1SZN6	RBE172N08R1SZN2
VDSS (Max) (V)	80	80	80	80
RDS (ON) (Max) @10V (mohm)	9.3	9.3	5.6	17.2
ID (A)	50	50	90	30
Standard Pkg. Type	μSO8-FL 3x3 BSC	μSO8-FL 3x3 BSC	SO8-FL 5x6 BSC	μSO8-FL 3x3 BSC
Qualification Level	Industrial	Automotive	Industrial	Industrial

Application Block Diagrams

	3-Phase RISC-V Motor Controller 3-phase motor controller with pre-programmed 32-bit RISC-V ASSP.
	Motor Control with Resolver Resolvers enhance motor control precision, reliability, and reduce costs in stepper and BLDC motor systems.
	Resolver Motor Control for Small Industrial Robots Compact robotic system offers precise motion control, robust design, and reduced development time.
