RBE056N08R1SZN6

Active

80V, 90A, 5.6mΩ, REXFET-1 N-Channel Power MOSFET in SO8-FL (5×6)

Order Now

Features

  • VDSS = 80V
  • Standard-level gate drive voltage: VGS(th) = 2.0V ~ 4.0V
  • Super low on-state resistance: RDS(on) = 5.6mΩ max
  • ID = 90A
  • Low input capacitance
  • Low thermal resistance
  • Package: SO8-FL (5x6)
  • 100% Avalanche tested
  • Pb-free lead plating: RoHS compliant
  • MSL1 classified according to IPC/JEDEC J-STD-020
Find Other Products in Power MOSFETs

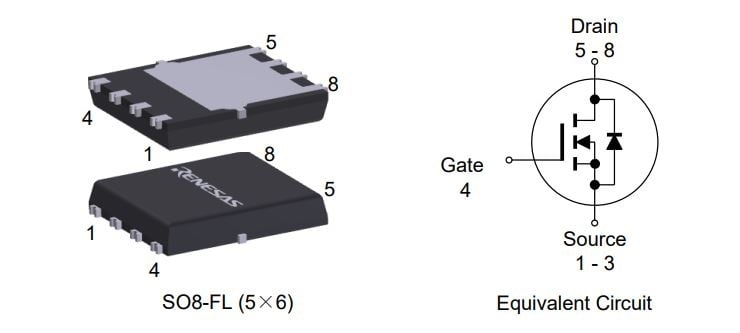

RBE056N08R1SZN6 Outline

Description

The RBE056N08R1SZN6 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a 5x6 SO8-FL package. The SO8-FL package features ultra-compact, leadless designs with Wettable Flanks to support enhanced thermal performance, reliability, and ease of assembly.

Renesas' REXFET-1 split-gate technology is well-suited for applications that require low RDS(on) and switching capability, making it ideal for high-power and high-frequency applications.

Parameters

AttributesValue
Qualification LevelIndustrial
Nch/PchNch
Channels (#)1
Standard Pkg. TypeSO8-FL 5x6 BSC
Gate LevelStandard
VDSS (Max) (V)80
ID (A)90
RDS (ON) (Max) @10V (mohm)5.6
Pch (W)100
Ciss (Typical) (pF)2900
Qg typ (nC)44
Series NameREXFET-1

Package Options

Pkg. TypePkg. Dimensions (mm)Lead Count (#)
SO8-FL5.15 x 6.10 x 1.008

Product Comparison

RBE056N08R1SZN6RBA90N08EANS-4UA06RBE024N08R1SZN6RBE031N08R1SZN6
VDSS (Max) (V)80808080
RDS (ON) (Max) @10V (mohm)5.65.62.43.1
ID (A)9090175140
Standard Pkg. TypeSO8-FL 5x6 BSCSO8-FL 5x6 BSCSO8-FL 5x6 BSCSO8-FL 5x6 BSC
Qualification LevelIndustrialAutomotiveIndustrialIndustrial

Application Block Diagrams

Humanoid battery management system block diagram features cell balancing and monitoring, charge and discharge protection, pack voltage and current sensing, battery pack control, communications, auxiliary power, and active cooling.
Humanoid Battery Management System
Integrated humanoid robot BMS enabling safe, real-time power management, protection, and battery-state control.
140W charger battery management block diagram features a 30V buck-boost design for 3- to 4-cell battery packs and supports USB PD EPR.
USB PD Charger Battery Management
High-efficiency USB PD charger battery management system supports up to 240W, multi-cell packs, and fuel gauging.
9-axis industrial motor control block diagram features an MPU with dual Arm Cortex-R52 and quad Arm Cortex-A55 cores and supports major industrial Ethernet protocols.
6‑ and 9‑Axis Industrial Motor Control with Ethernet
High-precision and efficient 6- and 9-axis motor control designed for robotics and industrial applications.
Block diagram of the torque control system features an MCU with a high-precision AFE, low-noise, high power supply rejection ratio, and stable high-quality power supply.
Torque Control System
Precision torque control ensures product quality using MCUs with high-precision AFE and reliable sensors.
Motor Control for Power Tools Block Diagram
Versatile Motor Control for Power Tools
MCU-powered motor control boosts performance, simplifies design, and enhances power tool efficiency.

Additional Applications

  • Motor control
  • Data center
  • Energy infrastructure
  • Industrial automation
  • DC/DC power conversion
  • Power tools
  • Robotics
