Overview
Description

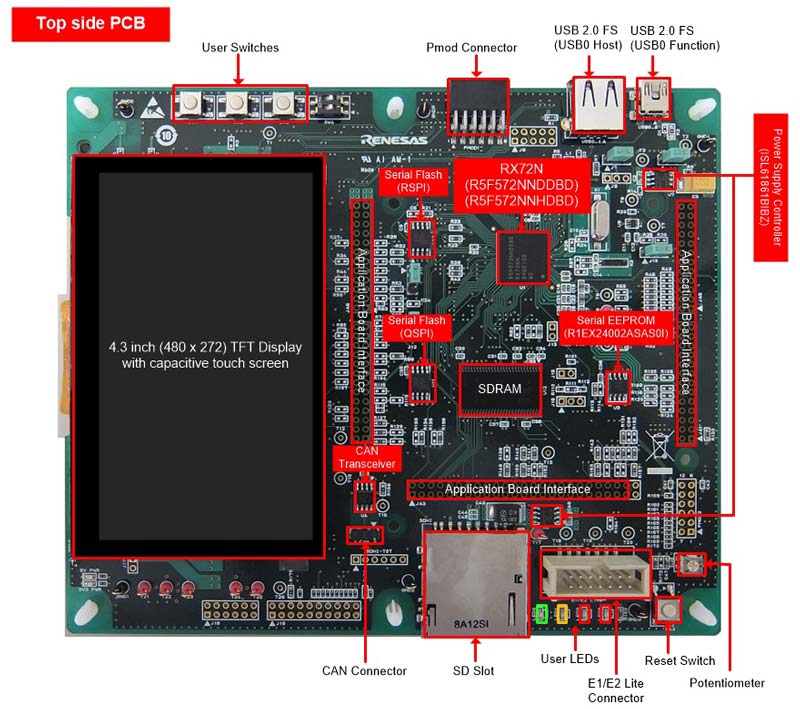

Renesas Starter Kit+ for RX72N is the perfect starter kit for getting started with RX72N (code flash 4MB, pin number 224-pin). LCD display module and on-chip debugging emulator are attached. The integrated development environment is provided on Renesas Web, so you can start evaluating the RX72N immediately after opening the package. Please experience the performance and functions of the RX72N with this product.
Features
- Installed device: RX72N (R5F572NNDDBD: No encryption function, code flash 4MB, pin number 224-pin), or RX72N (R5F572NNHDBD: Encryption function, code flash 4MB, pin number 224-pin)
- Equipped with a TFT display, it is possible to evaluate graphic LCD controllers.
- PHY, Ethernet can be evaluated.
- Equipped with RX72N with Trusted Secure IP built-in, it is possible to evaluate AES encryption and strong key management. (The product model name (order model name) differs depending on the presence of encryption function.)
- Equipped with an SD slot, SDHI can be evaluated. Wireless LAN evaluation is possible by combining with optional wireless LAN expansion board package for RSK (RTK0ZZZZZZP00000BR#WS).
- Equipped with one channel of USB for host and function evaluation.
- RSPI (Renesas Serial Peripheral Interface), QSPI (Quad Serial Peripheral Interface), etc. can be evaluated.
- The sample code makes it easy to understand the programming points. (Sample code is available on the website.)
- Operating environment is IBM-PC compatible (USB interface required, processor 1GHz or more), OS is Windows 10/8.1 (other than the listed OS is not supported).
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 451 KB 日本語 | |
| Manual - Development Tools | PDF 637 KB 日本語 | |
| Manual - Development Tools | PDF 1.44 MB 日本語 | |
| Application Note |
PDF
3.99 MB
日本語
The MCUboot FIT module is a FIT module created on the basis of MCUboot. When users create a bootloader, they can easily embed MCUboot into it by using this FIT module.
In addition, MCUboot FIT uses Renesas security IP (TSIP and RSIP), which enable secure user key concealment and faster decryption.
|
|
| Application Note |
PDF
12.71 MB
日本語
By using the FIT module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
The firmware update module provides middleware that functions as a component when adding firmware update functionality to the user's system.
|
|
| Tool News - Release |
PDF
153 KB
日本語
This is the Tool News announcing the revision upgrade to QE for Display [RX,RA] V3.7.0, Development Assistance Tool for Display Applications.
QE for Display [RX,RA] is a development assistance tool that supports the development of embedded systems using the LCD display functions of display controllers from Renesas.
With this revision upgrade, the tool now supports the new device RA8D2.
|
|
| Tool News - Release | PDF 152 KB 日本語 | |
| Tool News - Release | PDF 335 KB 日本語 | |
| Tool News - Release | PDF 169 KB 日本語 | |
| Application Note |
PDF
531 KB
AI-generated Summary:
Sample code for the RX72N Group Renesas Starter Kit+ supports development using CS+ IDE and CC-RX compiler. It provides peripheral initialization examples and multiple projects tailored for specific peripherals. Users can install the software, open sample projects, and explore source files grouped by type. Each project includes a description and main C source file. Updated development environment versions are CS+ V8.12.00 and CC-RX v3.06.00. Support and inquiries are available via Renesas website.
|
|
| Application Note |
PDF
637 KB
AI-generated Summary:
The document details the setup and usage of sample code for the RX72N Group using the Renesas Starter Kit+ and e2 studio IDE with the CC-RX compiler. It guides through installation, project workspace creation, importing sample projects, and navigating source files. The sample code demonstrates peripheral initialization and includes main C source files. The package includes application note zip files but does not specify PCB design files such as BOM, schematics, or Gerber files.
|
|
| Tool News - Release | PDF 176 KB 日本語 | |
| Tool News - Release | PDF 266 KB 日本語 | |
| Tool News - Note | PDF 139 KB 日本語 | |
| Tool News - Release | PDF 210 KB 日本語 | |
| Tool News - Release | PDF 236 KB 日本語 | |
| PCB Design Files | RSK+RX72N Design Data
|
|
| Tool News - Note | PDF 190 KB 日本語 | |
| Application Note |
PDF
2.17 MB
日本語
AI-generated Summary:
The document provides a comprehensive guide for developing embedded systems with graphical displays using QE for Display [RX] and Renesas RX microcontrollers. It details initializing and configuring the graphics LCD controller (GLCDC) through a sample program, enabling quick setup without deep GLCDC specification knowledge. The workflow includes project creation, Smart Configurator settings, program development, real-time display adjustment, and header file generation. It supports RX65N, RX651, RX72N, RX72M, and RX66N groups and covers hardware configuration, software settings, and integration with the Smart Configurator and Firmware Integration Technology (FIT). The document also explains adapting the sample program to different environments and provides step-by-step procedures for execution and adjustment.
|
|
| Application Note |
PDF
340 KB
日本語
AI-generated Summary:
The document explains how to develop and operate a system bootloader on the RX72N microcontroller using the Renesas Starter Kit+ platform. It covers key precautions for handling microcontroller units, including electrostatic discharge prevention, proper power-on procedures, signal input restrictions during power-off, and clock signal stability requirements. The document also details the intended use environment, safety disclaimers, and electromagnetic compatibility considerations. It provides references to related manuals and tutorials for hardware, software setup, and bootloader application development, enabling users to effectively implement and debug bootloader functionality on RX72N-based systems.
|
|
| Manual - Development Tools | PDF 177 KB | |
| Manual - Development Tools | PDF 3.03 MB 日本語 | |
| Manual - Development Tools | PDF 1.24 MB 日本語 | |
| Manual - Development Tools | PDF 2.45 MB 日本語 | |
| Manual - Development Tools | PDF 1.17 MB 日本語 | |
|
25 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Simulator for CS+ of RX Family Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Simulator for e² studio of RX Family Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
|
Simulator | Renesas |
3 items
|
||
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Board Description File | ZIP 2 KB | |
| Board Description File | ZIP 2 KB | |
| Software & Tools - Other | Product Software for the RX72N Renesas Starter Kit (Installer: CS+ version)
|
|
| Software & Tools - Other | Product Software for the RX72N Renesas Starter Kit (Web installer: e² studio version)
|
|
4 items
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | RX Family MCUboot Firmware Integration Technology Application Notes Rev.1.02 - Sample Code
[Software=RX Driver Package|V1.49],[Toolchains=CC-RX|V3.07.00;GNURX|V8.3.0.202411;IAR Compiler for RX|v.5.10.1]
ZIP
92.22 MB
Application:
Appliances, Building Automation
Compiler:
CC-RX, GNURX, ICCRX
Function:
Driver or Library
IDE:
e² studio, IAR EWRX
|
|
| Sample Code | RX Family Firmware Update module Using Firmware Integration Technology Application Notes Rev.2.06 - Sample Code
[Software=RX Driver Package|V1.48],[Toolchains=CC-RX|V3.07.00;GNURX|14.2.0.202505;IAR Compiler for RX|v.5.20.1]
ZIP
156.61 MB
Application:
Consumer Electronics
Compiler:
CC-RX, ICCRX
Function:
Driver or Library
IDE:
e2 studio, GCC EWRX, IAR EWRX
By using the FIT module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
The firmware update module provides middleware that functions as a component when adding firmware update functionality to the user's system.
|
|
| Sample Code | RX72N Renesas Starter Kit Sample Code (CS+ for CC-RX) Rev.2.00 - Sample Code
[Toolchains=CC-RX|V3.06.00]
ZIP
47.97 MB
Compiler:
CC-RX
Function:
Starter Kit
IDE:
CS+
|
|
| Sample Code | RX72N Renesas Starter Kit Sample Code (e² studio for CC-RX) Rev.2.00 - Sample Code
[Toolchains=CC-RX|V3.06.00]
ZIP
47.71 MB
Compiler:
CC-RX
Function:
Starter Kit
IDE:
e2 studio
|
|
| Sample Code | RX Family QE for Display [RX] V1.1.0 Sample Program - Sample Code
|
|
|
5 items
|
||
Product Options
| Part Number | Status | Stock | Description | Regional Availability | Debugger supplied | Encrypt Function |
|---|---|---|---|---|---|---|
| RTK5572NNDS00000BE | Active | Out of Stock | Renesas Starter Kit+ for RX72N (Kit with CS+ & e² studio) | US, EU, CN, BR, IN, KR, SG, TW | E2 Lite | None |
| RTK5572NNDS10000BE | Active | Out of Stock | Renesas Starter Kit+ for RX72N (Kit with CS+ & e² studio) | JP | E2 Lite | None |
| RTK5572NNHS00000BE | Active | Out of Stock | Renesas Starter Kit+ for RX72N (Kit with CS+ & e² studio) | US, EU, CN, BR, IN, KR, SG, TW | E2 Lite | Support |
| RTK5572NNHS10000BE | Active | Out of Stock | Renesas Starter Kit+ for RX72N (Kit with CS+ & e² studio) | JP | E2 Lite | Support |
