Overview
Description

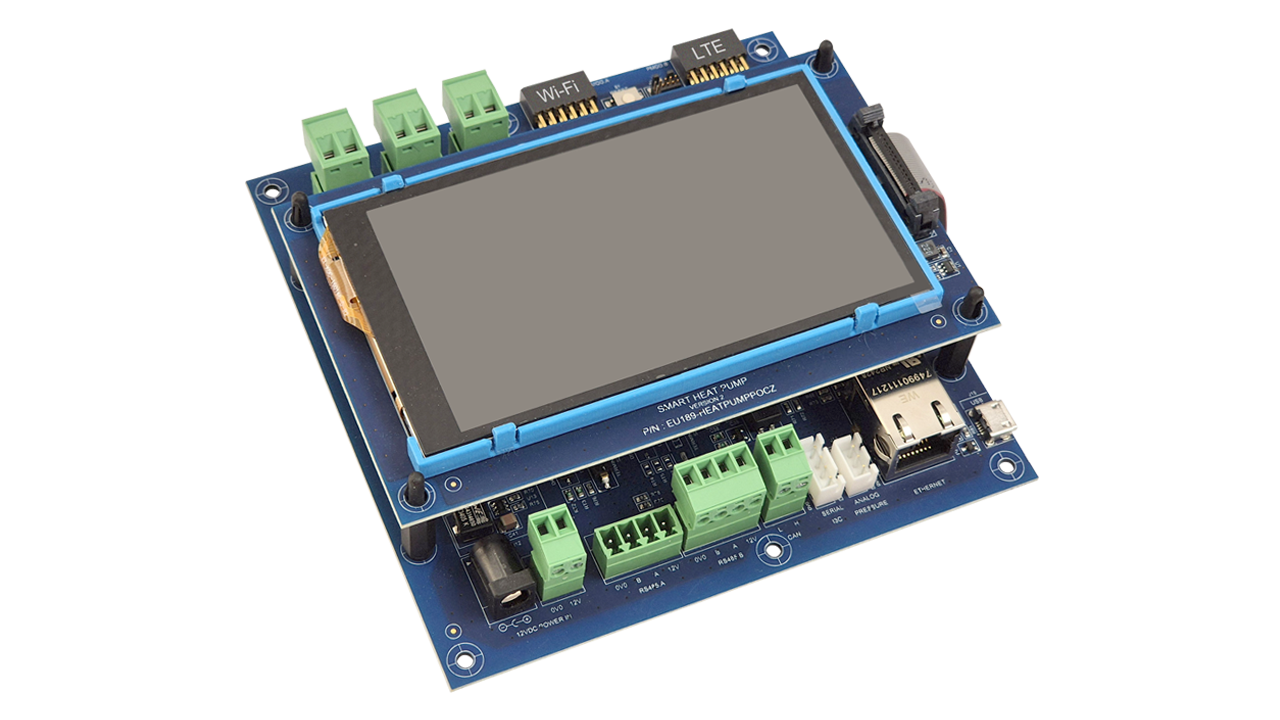

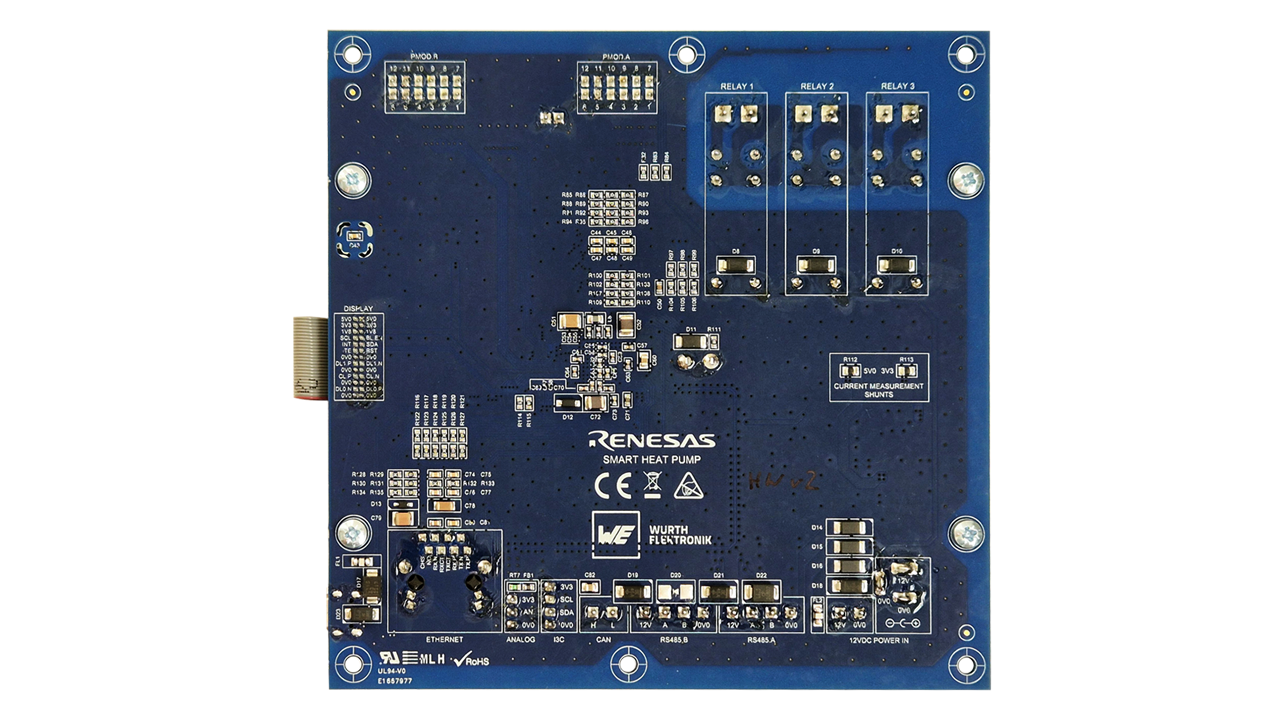

The EU189-HEATPUMPPOCZ reference design provides an e-AI-ready system controller with integrated HMI capabilities. It manages system-level functions by processing data from environmental and motor sensors and coordinating commands to external motor control boards responsible for driving fans and compressors. With a responsive touch GUI and versatile communication interfaces, it enables intuitive user interaction and easy integration into appliances and industrial systems. The system is prepared to run e-AI for predictive maintenance and optimized system performance by monitoring live feedback from the connected sensors.
Features
- Capacitive touchscreen and web-based UI offer intuitive, flexible control and system configuration.
- Built-in relays allow direct external load control, reducing system complexity and enhancing reliability.
- Versatile connectivity with RS-485, Ethernet, Wi-Fi, Bluetooth®, and LTE ensures easy integration to both local and cloud-based systems.
Applications
|
e-AI-Ready GUI Controller for Appliances and Industrial Systems
The e-AI-ready HMI controller offers smart control with AI, predictive maintenance, and rich connectivity.
|
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| PCB Design Files | EU189-HEATPUMPPOCZ Design Files
|
|
| Manual - Hardware | EU189-HEATPUMPPOCZ Hardware Manual
|
|
| Manual - Software | EU189-HEATPUMPPOCZ Software Manual
|
|
| Quick Start Guide | PDF 473 KB | |
4 items
|
||
