Overview
Description

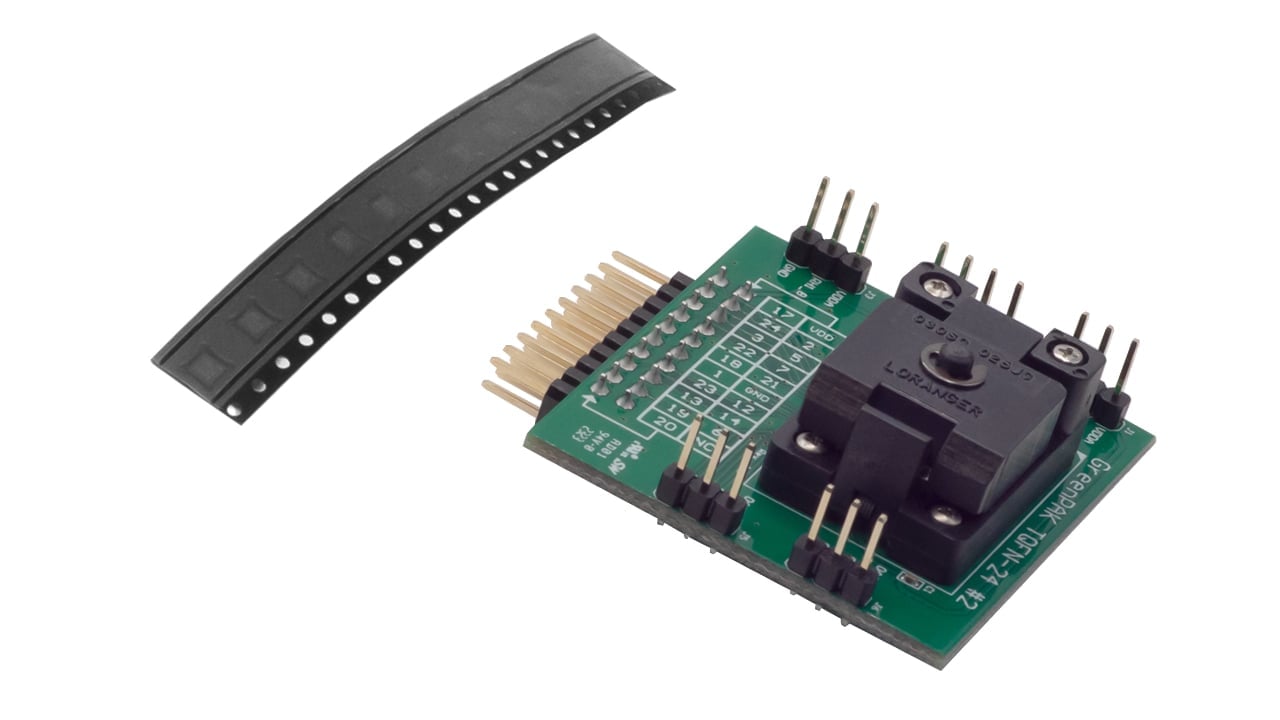

The SLG47003EV-SKT is a socket adapter kit for use with the SLG4DVKADV GreenPAK™ Advanced Development Board or SLG4DVKLITE GreenPAK Lite Development Board. The SLG47003EV-SKT kit includes the SLG4SA24AL-30x30 socket adapter and 50 SLG47003-EV AnalogPAK™ programmable mixed-signal matrix IC samples.
Used with SLG46xxxV-SKT and SLG47xxxV-SKT socket kits, the GreenPAK Advanced and Lite Development Boards provide full programming, emulation, and testing functions for GreenPAK devices.
The SLG47003-E AnalogPAK programmable mixed-signal IC with extended temperature range provides a small, low-power component for commonly used analog signal processing and mixed-signal functions.
Features
- TQFN-24 socket for the SLG47003-E AnalogPAK programmable mixed-signal matrix
- Connector for GreenPAK Advanced Development Board
- SLG4SA24AL-30x30 socket adapter
- 50 SLG47003-EV (TQFN-24) IC samples
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 2.35 MB | |
| Manual - Hardware | PDF 485 KB | |
| Quick Start Guide | PDF 197 KB | |
| Manual - Development Tools | PDF 1.32 MB | |
4 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Related Boards & Kits
Development
SLG4DVKADV
Active
GreenPAK Advanced Development Board
The GreenPAK™ Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK devices - for use with SLG46xxxX-SKT/SLG47xxxV-SKT socket kits.
It works in tandem with the GreenPAK Designer software (built into the Go Configure™ Software Hub), and it allows...
Recommended Documents:
Test This Board Remotely
Available on Lab on the Cloud, use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Development
SLG4DVKLITE
Active
GreenPAK Lite Development Board
The GreenPAK™ Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in conjunction with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
Recommended Documents:
