Overview
Description

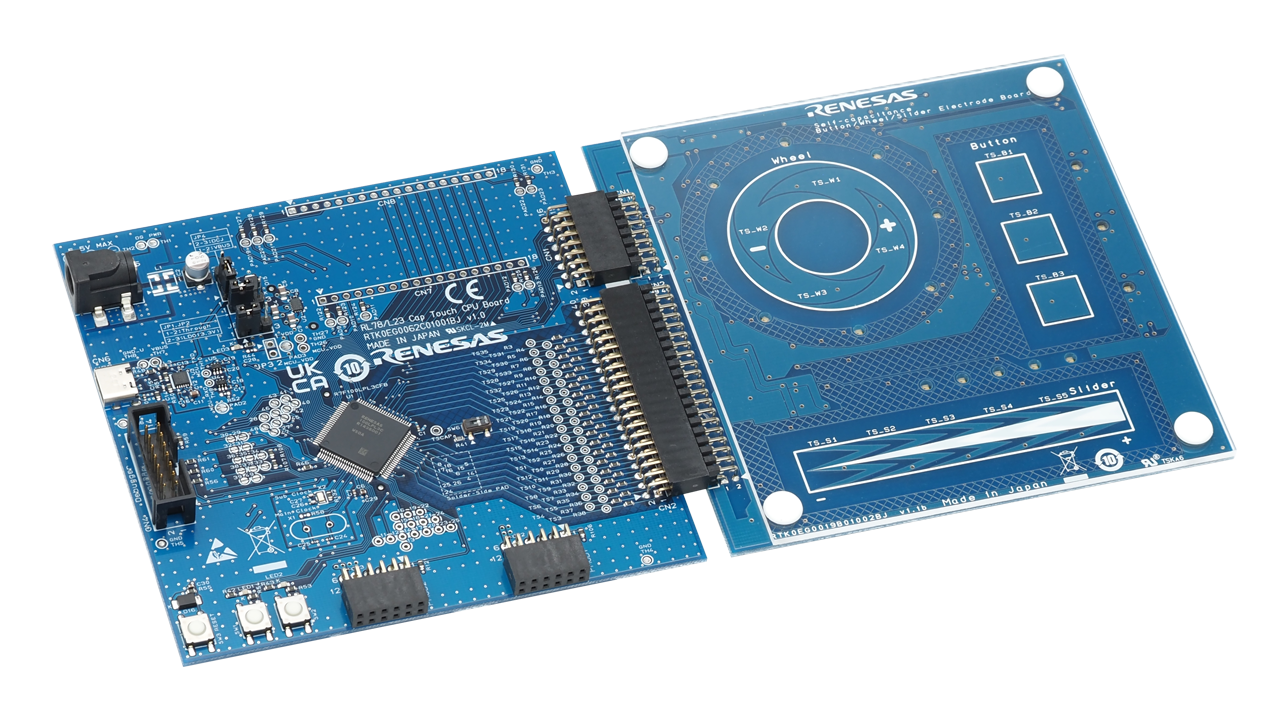

The RL78/L23 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
This evaluation system has an optional circuit enabling the connection of a 16-segment, 8-digit LCD panel. To make the LCD panel removable by pin sockets, prepare pin sockets that match the pin size of the LCD panel you are using.
Features
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy to develop touch interfaces even for beginners with GUI
- Easy operation with intuitive interface
- Automatically output adjusted source code
- RL78/L23 MCU (R7F100LPL3CFB) mounted
- Capacitive touch sensor (CTSU2La) terminal 36 channels available
- 16 segments and 8 digits can be connected (LCD not included)
Applications
Design & Development
Software & Tools
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code |
ZIP
2.35 MB
Application:
Human Machine Interface (HMI)
Compiler:
CC-RL, ICCRL78
Function:
HMI, RL78 Software Integration System, Software Package
IDE:
e2 studio, IAR EWRL78
|
|
| Sample Code |
ZIP
1.80 MB
Application:
Human Machine Interface (HMI)
Compiler:
CC-RL, ICCRL78
Function:
HMI, RL78 Software Integration System, Software Package
IDE:
e2 studio, IAR EWRL78
|
|
| Sample Code |
[Software=RX Driver Package|V2.20;RA Flexible Software Package|v5.3.0],[Toolchains=CC-RL|V1.13.00;CC-RX|V3.06.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
16.10 MB
日本語
Application:
Consumer Electronics
Compiler:
CC-RL, CC-RX, GNU ARM Embedded
Function:
Application Example, HMI
IDE:
e2 studio
|
|
| Sample Code |
[Toolchains=CC-RL|V1.12.01;LLVM for Renesas RL78|10.0.0.202310;IAR Compiler for RL78|v.5.10.3]
ZIP
3.52 MB
Application:
Consumer Electronics, Industrial
Compiler:
CC-RL, ICCRL78, LLVM
Function:
BSP, Clock, Software Package
IDE:
e2 studio, IAR EWRL78
|
|
4 items
|
||
