Overview

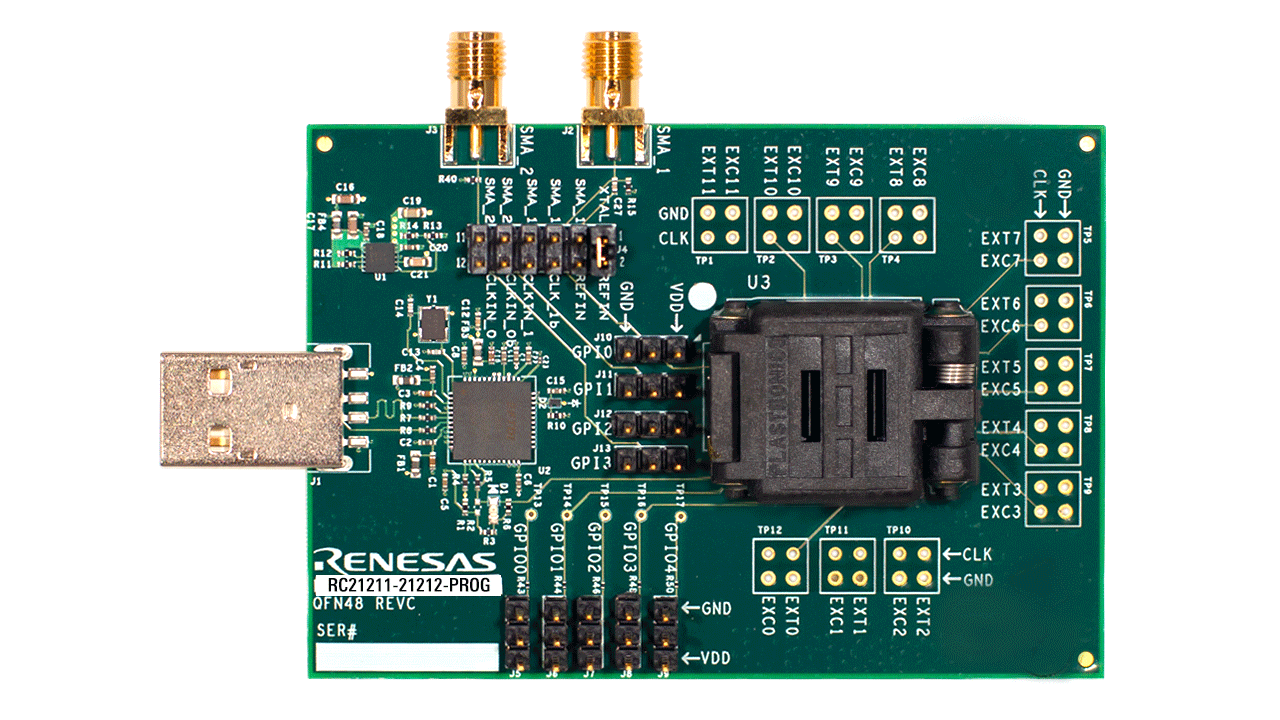

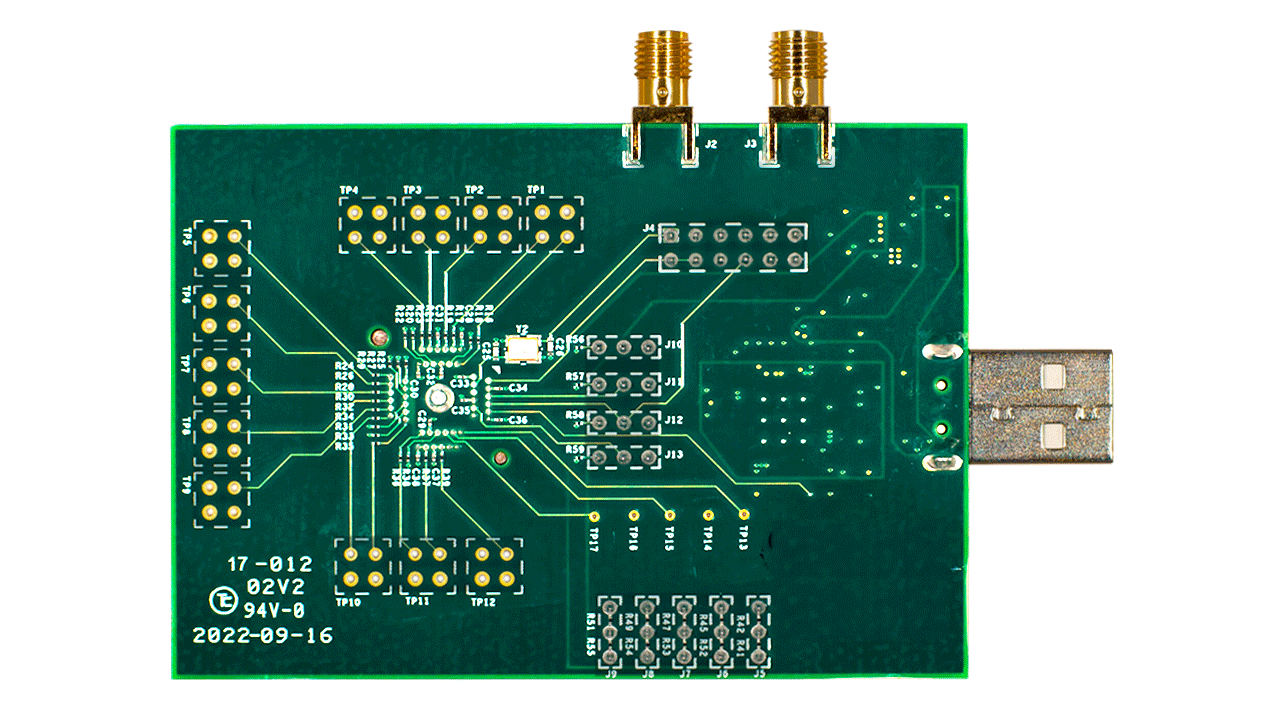

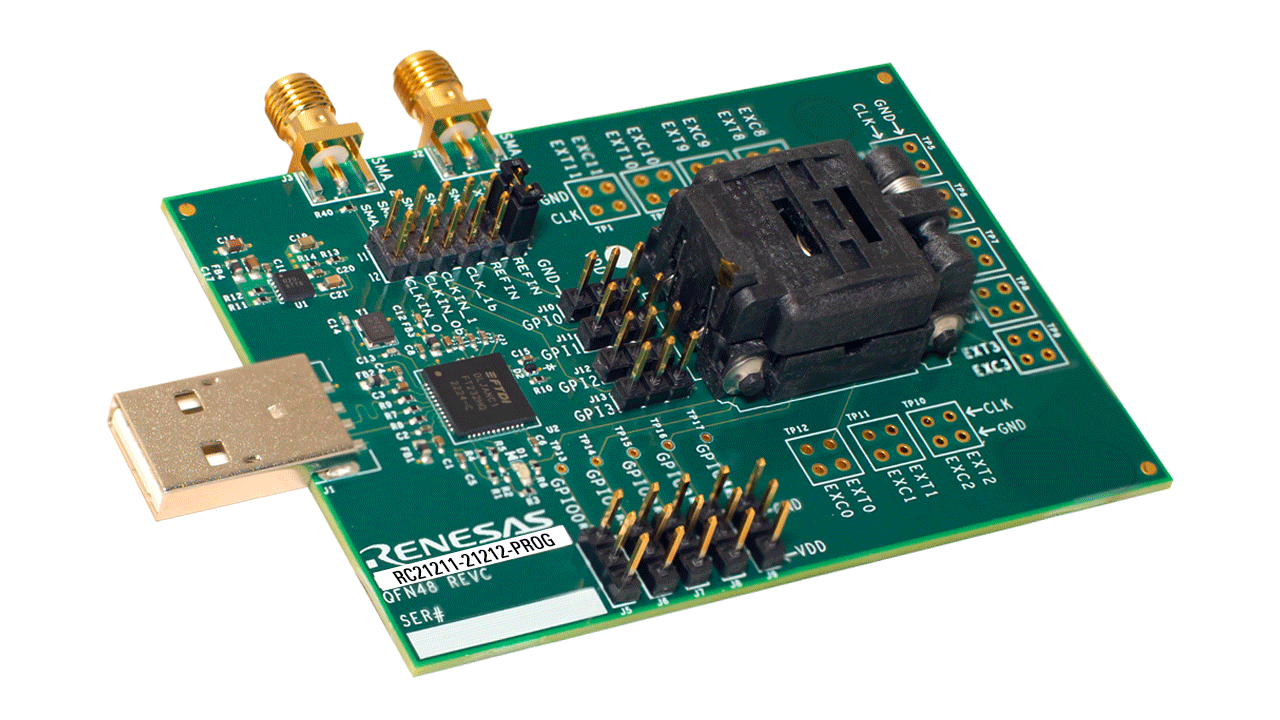

The AutoClock programming board eases the programming of the RC21211 and RC21212 programmable clock generator blank devices. With the on-board USB interface, the Renesas Integrated Circuit Toolbox (RICBox™) graphical user interface (GUI) software can be used to communicate with the blank device in the socket for configuration and programming.
Features
- Programmer board is powered using a USB port
- Programmer board uses the RICBox™ GUI for programming the blank parts
- Program AutoClock using RC21211/RC21212 blank device in socket
Sample & Buy
12-Output AutoClock Programming Board
RC21211-21212-PROG Active
| Description: | 12-Output AutoClock Programming Board |
| Pb (Lead) Free: | No |
| ECCN (US): | EAR99 |
| HTS (US): | 8542.39.0090 |
1u | $250.00Budgetary Price
Add-on Hardware
Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.
12-Output AutoClock Programmable Clock Generator Evaluation Board
RC21212-EVB Active
Evaluate automotive‑grade clock generation and synthesis using a configurable 12‑output AutoClock platform.
Recommended Documents:
8-Output AutoClock Programmable Clock Generator Evaluation Board
RC21214-EVB Active
Evaluate compact, automotive‑qualified clock generation using an 8‑output AutoClock evaluation platform.
Recommended Documents:
8-Output AutoClock Programming Board
RC21213-21214-PROG Active
Enable USB‑based programming of 8‑output AutoClock devices using a compact programming board.
Recommended Documents:
