Overview
Description

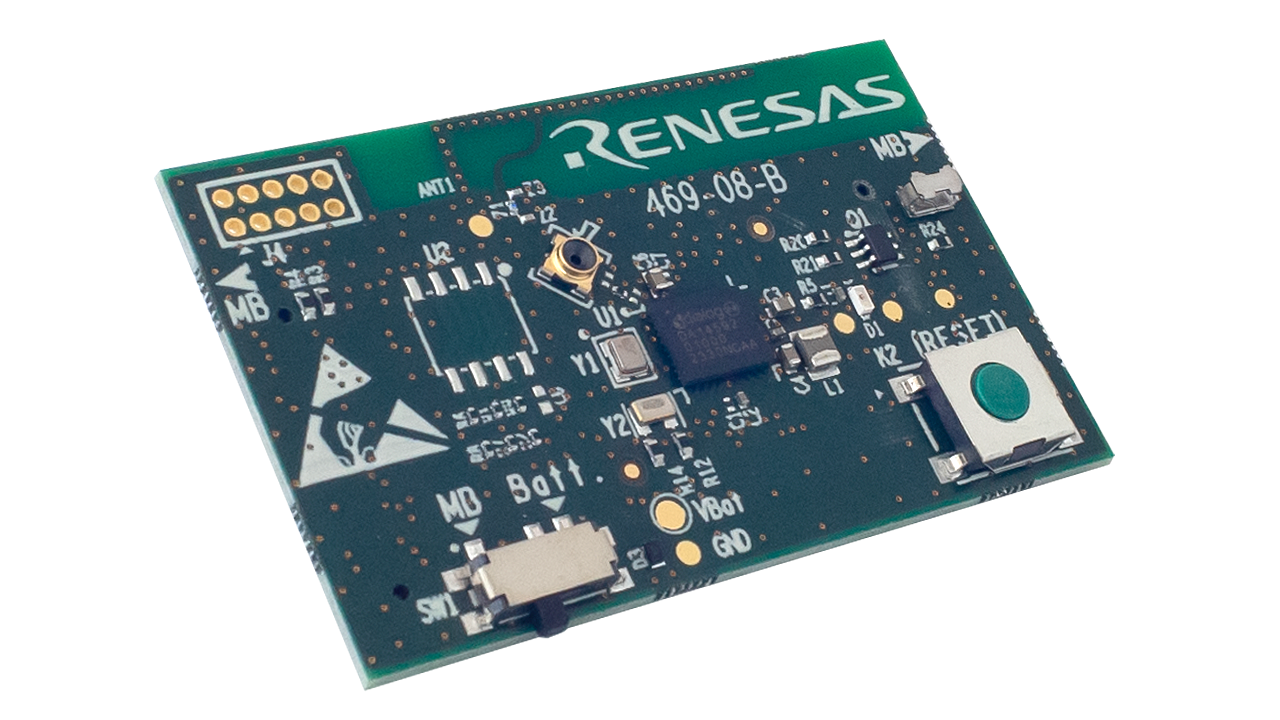

The DA14594-006FDB-P is a daughterboard for use with the DA14594-006FDEVKT-P development kit. The daughterboard can be easily attached to the motherboard of either the DA14594-006FDEVKT-P or the DA14592-016FDEVKT-P. The daughterboard is mounted with a FCQFN packaged DA14594 Bluetooth SoC.
Features
- Flexible battery options for stand-alone asset tracking tag
- Embedded printed antenna
- Flexible alternative RF output
- JTAG debugger and connectivity to PC
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 6.59 MB | |
| Manual - Development Tools | ||
| Schematic | PDF 614 KB | |
3 items
|
||
