The Target Board for RX660 provides an entry point to evaluation, prototyping and developing for the RX660 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides through-holes for pin headers that allow access to all MCU signal pins, allowing an easy prototyping with a breadboard. In addition, this board has a Pmod connector, so you can enhance functionality by connecting Wi-Fi module, sensor module, etc.

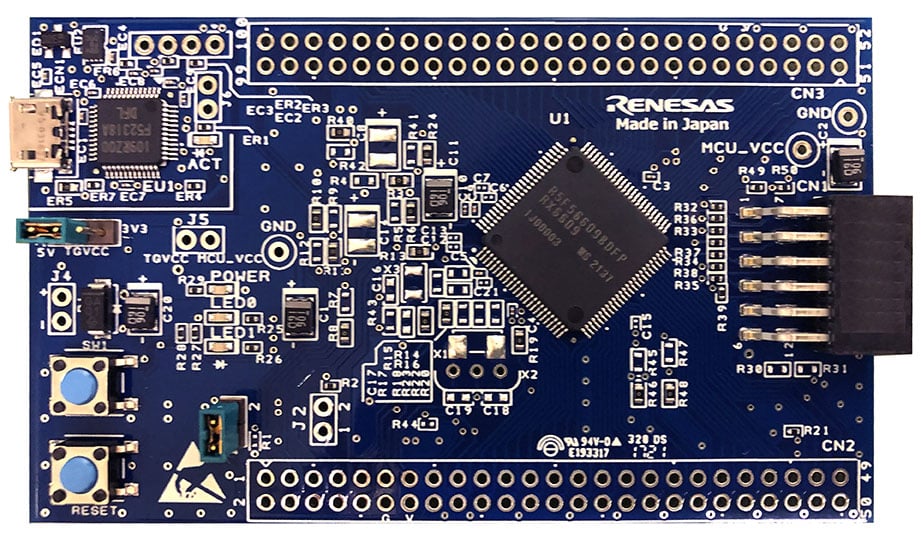

Target Board for RX660
Target Board for RX660
  • On-board RX660 MCU
  • Excellent choice for basic evaluation and development of selected MCU
  • Full access to all MCU pins by provided header through-hole connections
  • A Pmod connector for enhancing functionality
  • Wide operating voltage range: 2.7V-5.5V
  • Included on-chip debugging can be used for own development
  • USB connector to power and debug the MCU (no USB cable included)
  • Development environment like e² studio can be downloaded for free
Title Category Buy/Sample
RX66032-bit Microcontrollers with High Performance and Excellent Noise Tolerance for 5V Power Supply
RX660 Group Datasheet
 RX 32-Bit Performance / Efficiency MCUs, MCU Selection Table Buy/Quote

Documentation

Design & Development

Software Downloads

Title Type Date
Target Board for RX660 Design Data
ZIP459 KB
PCB Design Files

Sample Code

Title Type Date
RX660 Group Target Board for RX660 LED Blink Control Program Rev.1.00 - Sample Code
[Toolchains=CC-RX|v3.04.00]
ZIP6.16 MB
Related Files:
Compiler: CC-RX
Function: Timer, Application Example, Clock, I/O or Pin, Initial Setting
IDE: e2 studio
Sample Code
