Overview

Description

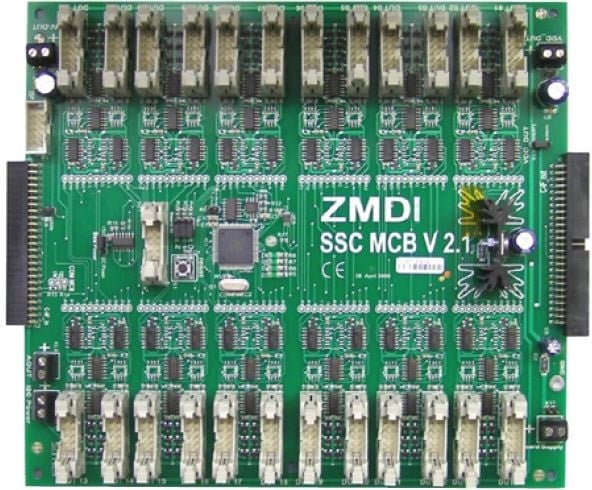

The ZSC31150 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSC31150 Sensor Signal Conditioner (SSC) ICs. The user's PC can communicate via the SSC Communication Board with multiple ZSC31150 ICs (DUTs) mounted on either the user's modules or ZSC31150 Mass Calibration Reference Boards, which are connected through the Mass Calibration Board (MCB). Each MCB allows connection of up to 24 DUTs. The system can operate with up to 8 MCBs, allowing connection of up to 192 DUTs.

For further information and support for the SSC Communication Board, visit the SSC-CB product page.

The Evaluation Kit Software is available on-line for free download. Additional boards can be ordered separately.
To enable product comparisons, this modular kit is compatible with other select IDT devices. Contact your local sales representative for more information.

Features

Features

  • 4 Mass Calibration Boards
  • SSC Communication Board
  • 4 ZSC31150 Mass Calibration Reference Boards with 1 sample ZSC31150 mounted
  • USB Cable
  • SSC Flat Cable: 30m of 10-wire flat cable and 100 connectors
