Industrial multi-protocol implementation made easy.

RZ/N1 is a family of scalable and performant Arm® based communication devices that support multiple industrial network protocols and redundant network technologies on a single device. The RZ/N1 contains a dual/single Arm® Cortex®-A7, up to 6MB of SRAM, and a 5-port Gigabit switch with advanced networking features, on-chip security, and leverages the industry proven Renesas R-IN engine (“R-IN engine”) that improves network performance.

The RZ/N1 is ideal for many industrial applications such as intelligent gateways and protocol converters, programmable logic controllers (PLCs), remote IO units, and networked intelligent endpoints for the Industry 4.0/Industrial IoT realm of applications.

To simplify protocol implementation, the RZ/N1 features a unified protocol communication abstraction layer that allows the user to quickly switch from one protocol to another, all in the same platform.

Features

  • Dual/Single Arm® Cortex®-A7 500MHz
  • SRAM Max. 6MB
  • Gigabit Ethernet Switch Max. 5 ports
  • R-IN enginge Supported

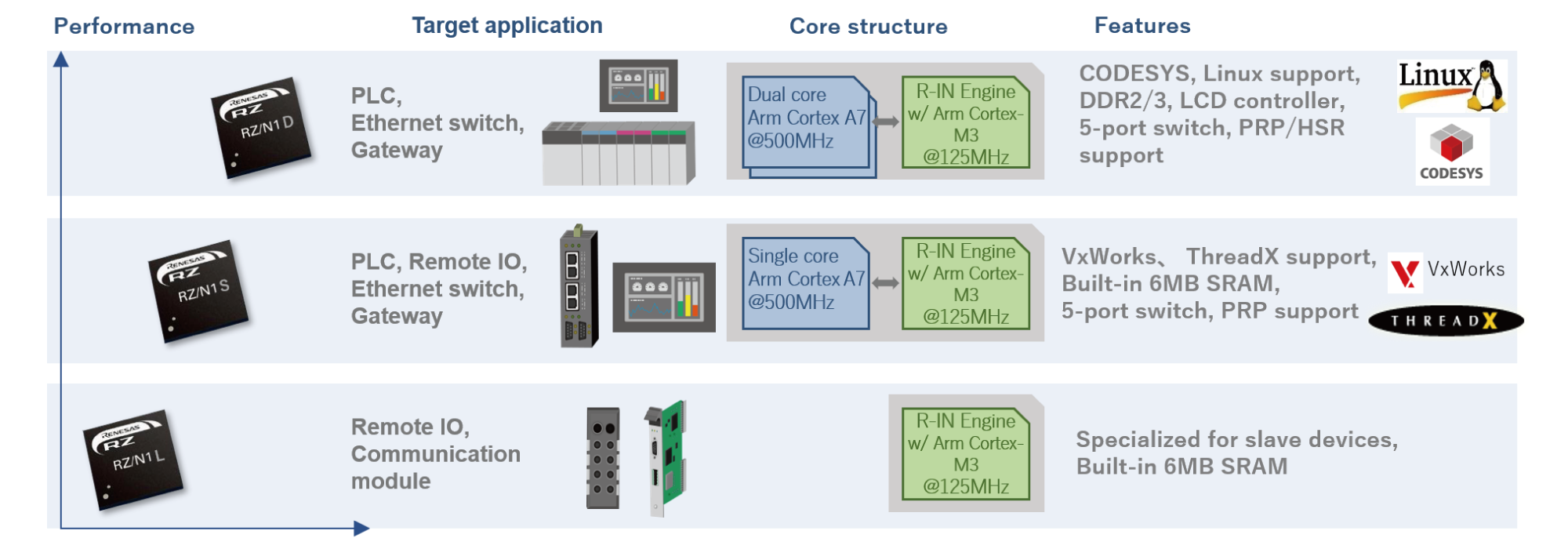

Product lineup

Product lineup

See here for details of the RZ/N1D >>
See here for details of the RZ/N1S >>
See here for details of the RZ/N1L >>

Product Info

ITEM RZ/N1D RZ/N1S RZ/N1L
Product Name R9A06G032NGBG R9A06G032PGBG R9A06G032VGBG R9A06G032EGBG R9A06G032VGBA R9A06G032EGBA R9A06G033NGBG R9A06G033PGBG R9A06G033VGBA R9A06G033EGBA R9A06G034VGBA
Power Supply Voltage 3.3 V for I/O, 1.15V for CPU 3.3 V for I/O, 1.15 V for CPU 3.3 V for I/O, 1.15V for CPU
1.5 V/1.8 V for DDR3 or DDR2
CPU Core Dual Arm® Cortex®-A7 + Arm® Cortex®-M3 (R-IN engine) Arm® Cortex®-A7 + Arm® Cortex®-M3 (R-IN engine) Arm® Cortex®-M3 (R-IN engine)
Maximum Operating Frequency 500 MHz (Cortex®-A7) / 125 MHz (Cortex®-M3) 500 MHz (Cortex®-A7) / 125 MHz (Cortex®-M3) 125 MHz
SRAM with ECC 2 MB 6 MB 6 MB
External Memory DDR2/DDR3 Controller Supported N/A N/A
NAND Flash Controller Supported Supported Supported
Quad-I/O SPI 1 channel 2 channels 1 channel 1 channel
SDIO-eMMC 2 channels 2 channels 2 channels
Display Function LCD Controller LCD Controller N/A N/A
Network Function R-IN engine Supported Supported Supported
Ethernet Port 5 ports（4＋1） 3 ports（2＋1） 5 ports（4＋1） 3 ports（2＋1） 3 ports（2＋1）
Selectable from GMAC、EtherCAT®、Sercos® Ⅲ Selectable from GMAC、EtherCAT®、Sercos® Ⅲ Selectable from GMAC、EtherCAT®、Sercos® Ⅲ
Independent GMAC Up to 2 ports N/A Up to 2 ports Up to 1 port Up to 1 port
GMAC2 is available via A5PSW
EtherCAT Slave Controller Up to 3 ports Up to 2 ports Up to 3 ports Up to 2 ports Up to 2 ports
SercosIII Slave Controller Up to 2 ports Up to 2 ports Up to 2 ports
HSR Switch (Option) Supported (Option) N/A N/A N/A
Timer Function General Timers (16-bit x 6 channels + 32-bit 2 channels) × 2 (16-bit x 6 channels + 32-bit 2 channels) × 2 (16-bit x 6 channels + 32-bit 2 channels) × 2
Real Timer Clock (RTC) Supported Supported N/A
Watchdog For ARM® Cortex®-A7 core and For ARM® Cortex®-M3 core For ARM® Cortex®-A7 core and For ARM® Cortex®-M3 core Supported
Analog Function (12-bit resolution A/D Converter) 8 channels x 2 units 8 channels x 1 unit 8 channels x 1 unit 8 channels x 1 unit
Communication Interface UART 8 channels 8 channels 8 channels
I2C 2 channels 2 channels 2 channels
MSEBI Master and Slave Master and Slave Slave
(Parallel Bus Interface)
USB 2.0 2 channels (Host + Host/Function) 2 channels (Host + Host/Function) 2 channels (Host + Host/Function)
Mailbox Supported Supported N/A
SPI Master 4 channels + Slave 2 channels Master 4 channels + Slave 2 channels Master 4 channels + Slave 2 channels
CAN 2 channels 2 channels 2 channels
I/O Port Max. 170 Max. 132 Max. 160 Max. 95 Max. 95
Package 400-pin LFBGA 324-pin LFBGA 324-pin LFBGA 196-pin LFBGA 196-pin LFBGA
(17 x 17 mm, 0.8mm pitch) (15 x 15 mm, 0.8 mm pitch) (15 x 15 mm, 0.8 mm pitch) (12 x 12 mm, 0.8 mm pitch) (12 x 12 mm, 0.8 mm pitch)
Operating Temperature Tj = -40℃ to +110℃ Tj = -40℃ to +110℃ Tj = -40℃ to +110℃
Security Function (Option) N/A Supported N/A Supported N/A Supported N/A Supported N/A Supported N/A
Secure Boot/JTAG Lock/64bit Chip-ID

Applications

Related Boards & Kits

CONNECT IT! ETHERNET RZ/N

RZ/N-YConnect-It

Reference
Order Now

CONNECT IT! ETHERNET RZ/N

CONNECT IT! ETHERNET RZ/N is the perfect solution kit for developers new to developing with the RZ/N1. The kit comes with not only an evaluation board, but also a JTAG emulator and various sample software.
Featured Documents:
CONNECT IT! ETHERNET RZ/N1x Getting Started

Videos

RZ/N1 Solution Kit – Fast prototyping for Multi-protocol Industrial Ethernet

The RZ/N1D solution kit is an all-in-the-box package for fast evaluation and rapid prototyping of multiple industrial Ethernet protocols.

RZ/N1 is a family of scalable Arm® based industrial Ethernet switches. The performant Arm® Cortex®-A7 CPU on board, makes them an ideal choice for building Programmable Logic Controllers (PLC), industrial switches, gateways or operator terminals. Due to the unique combination of hardware and software, developers can easily exchange various industrial Ethernet protocols and focus only on developing the application software.
