Best-in-class PROFINET IRT solution with lowest possible implementation effort.
Jump to Page Section:
Overview
Description
The new TPS-1 low-cost Solution Kit allows a simple and efficient PROFINET IRT device design using the market-proven TPS-1 PROFINET IRT device chip that combines easy integration, extraordinary robustness and an outstandingly low power dissipation.

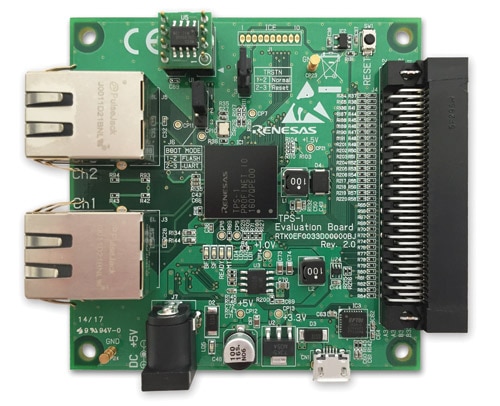

TPS-1 Development Board

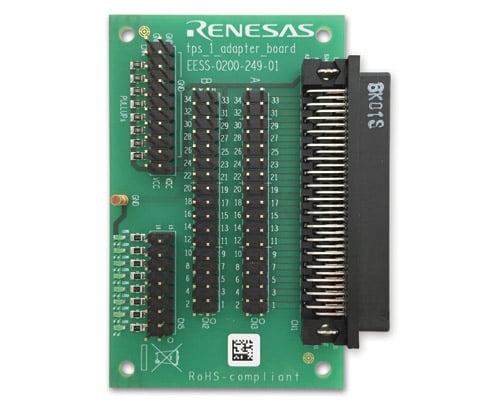

Passive Adaptor Board
Package Content
- TPS-1 Development Board
- Passive Adapter Board
- USB cable
- Ethernet cable
- CD-ROM
Evaluation using this solution kit requires PROFINET technology components. Please obtain if necessary.
Ordering Information
| Product Name | Part Number | Status | Buy |
|---|---|---|---|
| TPS-1 Low-cost Solution Kit | YCONNECT-IT-TPS-1L | Available | Contact |
Features
- Basic TPS-1 design for optimized cost
- Single 5 V supply via USB (alternative ext. power supply connector)
- GPIOs, host CPU interface and additional control signals (reset, watchdog, interrupt) available on standard multipoint connectors
- Easy connection to Renesas (and competition) μC evaluation boards
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 624 KB | Manual - Development Tools | ||
| PDF 3.62 MB | Application Note | ||
| PDF 922 KB | Datasheet | ||
| PDF 915 KB | Flyer | ||
| PDF 2.24 MB | Manual - Development Tools | ||
| PDF 2.31 MB | Manual - Development Tools | ||
| PDF 2.17 MB | Manual - Development Tools | ||
| PDF 2.50 MB | Manual - Development Tools | ||
| PDF 1.65 MB | Manual - Hardware | ||
9 items
|
|||
