Overview

RX23W microcontrollers incorporate security functions that are vital for Bluetooth^® 5.0 Low Energy (LE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long-range and mesh networking, and provide excellent reception performance.

In addition, the RX23W lineup includes a module with a built-in antenna and oscillator. It enables the use of many MCU peripheral function pins while having the industry’s smallest footprint for a module. This module has obtained Radio Law (Japan), FCC/ISED (North America), and CE (Europe) certifications, saving users the trouble of designing an RF circuit or obtaining certifications on their own, shortening time to market.

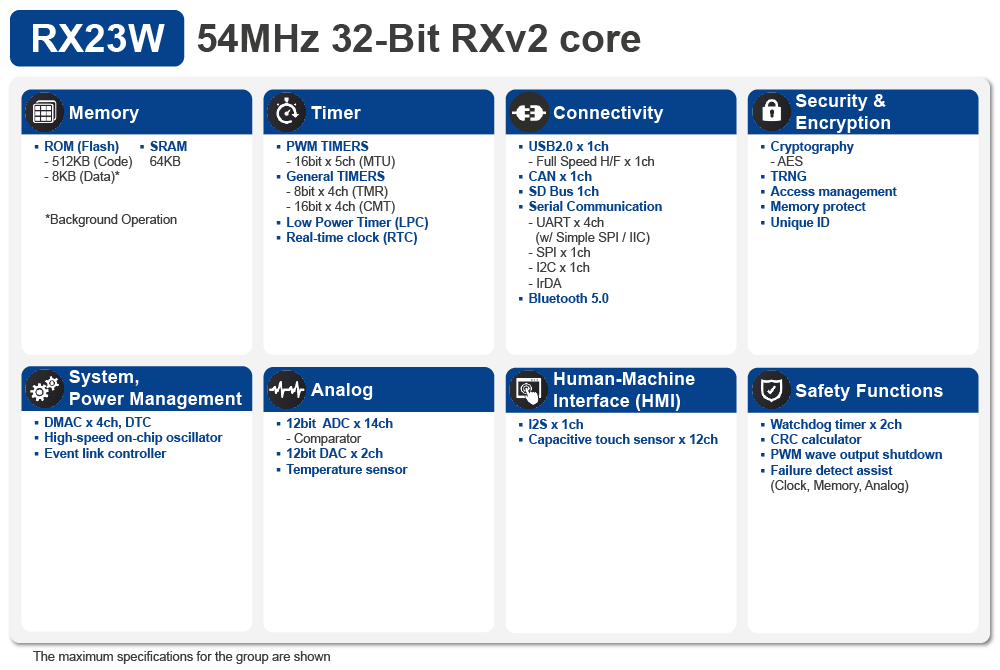

Pin-Memory Diagram of RX23W stanndard products

RXv2 core 54MHz operation (4.33 CoreMark/MHz), single-precision FPU
Operating voltage: 1.8V to 3.6V
Operating temperature: -40 °C to 85 °C
Program Flash up to 512KB, SRAM up to 64KB
Communications
- Bluetooth Low Energy (one channel)
  - Built-in Bluetooth 5.0-compliant RF transceiver and link layer
  - Supports LE 1M PHY, LE 2M PHY, LE Coded PHY (125kbps, 500kbps), LE Advertising Extensions
  - Built-in Bluetooth dedicated AES-CCM (128-bit) encryption circuit
- USB 2.0 Host/Function/OTG (one channel)
  - Full speed (12Mbps), low speed (1.5Mbps), isochronous transfer
  - BC (battery charger) support
- CAN (one channel)
  - ISO11898-1 compliant CAN, up to 1Mbps transfer
- SD Host I/F (on channel)
  - SD memory/SDIO 1- or 4-bit SD bus support
Capacitive Touch Sensing
- Self-capacitive method: Up to 12 keys supported in a 1-terminal 1-key configuration
- Mutual capacitive method: Supports up to 36 keys in a 12-terminal matrix configuration
Enhanced analog
- Enhanced analog: 12-bit A/D converter (14 channels), 12-bit D/A converter (2 channels)
Trusted Secure IP Lite (AES/TRNG)

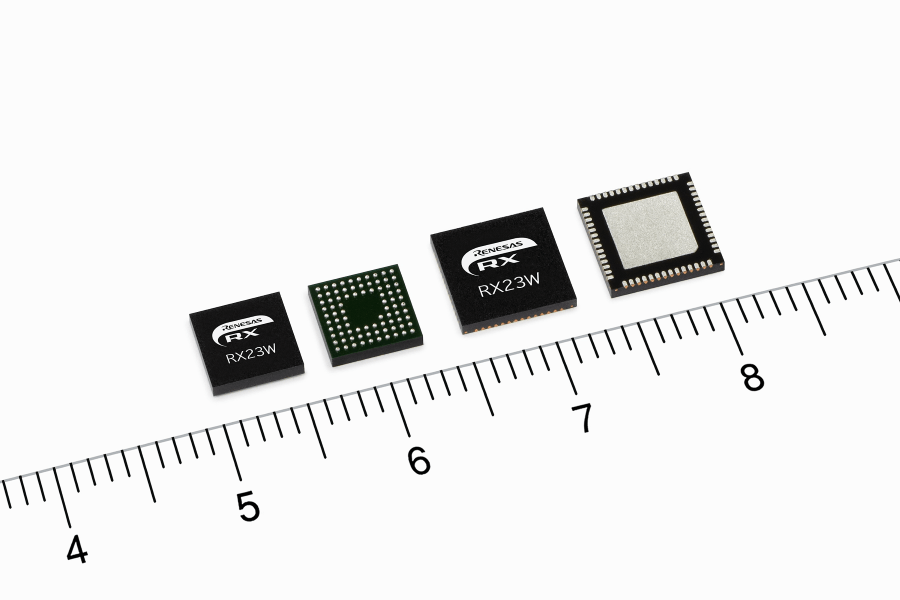

Module package size
- 6.1mm × 9.5mm, 0.5mm pitch (83-pin LGA)

	Electronic Drug Delivery System
	Ventilator System
	Drug Delivery with ISO 12207 Software
	48V Mobility Solution
	Master Actuator for Automatic Home or Building HVAC System
	Slave Actuator for Automatic Home or Building HVAC System
	IP Gateway for Automatic Home or Building HVAC System
	Medical Patch
	AC/DC Non-Isolated Capacitive Touch Wall Switch
	Bluetooth® Low Energy for RX Family
	Network Gateway for Bluetooth® Low Energy Mesh

Applications
