RL78/G13

Renesas MCU Guide

Download the mobile app

Overview

The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to industrial equipment.

CPU: RL78 core, Max. 32MHz
Voltage: 1.6V to 5.5V
Package: 64-pin HTFQFP, 24 to 48-pin HWQFN, 48 to 128-pin LFQFP, 44 to 100-pin LQFP, 20 to 30-pin LSSOP, 64-pin VFBGA, 25 to 36-pin WFLGA
Memory: SRAM Max. 32KB, Program Flash Max. 512KB
Timer: 16-bit Timer (ch) x 8, 8-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, Interval Timer x 1 ch
PWM: PWM Output x 7
Analog function: 10-bit A/D Converter (ch) x 9
On-chip Oscillator Freq. (MHz): High-Speed: 32, 24, 16, 12, 8, 4, 1MHz
Low-speed: 15kHz
Others: RTC, Power-On Reset, Low Voltage Detection

	Home Energy Management System with Power Line Communication
	Smart Grid Fault Indicator Unit
	Tankless Gas Water Heater with Remote Control
	Smart Earbuds Case Charger
	Household Water Pump
	Bathroom Odor Detector
	Air Duct System
	Critical Power Monitoring System
	Body Temperature Measurement in Access Control Systems
	Multi-Purpose Air Quality Sensor Solution
	Personal Safety Tracker
	DTDS LoRa®-based Module for IoT Connectivity
	Smart Water Purifier System
	HVAC Environment Monitor Module for Public Buildings
	Heat Pump Control System
	DALI Solutions
	Unified Speed Control Solution for BLDC Ceiling Fans
	LoRaWAN Street Light Controller for AC Load

Applications

Office Automation
Home Appliance
Healthcare
Security

Documentation

Document title Title		Document type Type	Date Date
	RL78/G13 Data Sheet Rev.3.60 PDF 3.28 MB	Datasheet	Jun 30, 2023
	RL78/G13 User's Manual: Hardware Rev.3.60 PDF 8.93 MB 日本語 Related Files: RL78 FAMILY HARDWARE MANUAL GUIDE -ELECTRICAL CHARACTERISTICS EDITION	Manual - Hardware	Jun 30, 2023
	HS300x Sample application - Sample Code PDF 3.64 MB 日本語 Related Files: Sample Code	Application Note	Sep 7, 2023
	ZMOD4xxx Sample application - Sample Code PDF 4.84 MB 日本語 Related Files: Sample Code	Application Note	Sep 7, 2023
	RL78 Family Reality AI Control Modules Software Integration System Rev.1.00 PDF 667 KB	Application Note	Aug 25, 2023
	RL78 Family Reality AI Data Acquisition Module ( Data Collector / Data Shipper ) - Sample Code Rev.1.00 PDF 1.42 MB Related Files: Sample Code	Application Note	Aug 25, 2023
	RL78 Family Reality AI Data Collector Control Module Software Integration System Rev.1.00 PDF 128 KB Related Files: Sample Code	Application Note	Aug 25, 2023
	RL78 Family Reality AI Data Shipper Control Module Software Integration System Rev.1.00 PDF 127 KB Related Files: Sample Code	Application Note	Aug 25, 2023
	RL78 Family Reality AI UART Communication Module Software Integration System Rev.1.00 PDF 117 KB Related Files: Sample Code	Application Note	Aug 25, 2023
	RL78 Family Sensor Control Modules Software Integration System Rev.1.50 PDF 1.61 MB	Application Note	Jul 4, 2023
	RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22 PDF 127 KB Related Files: Sample Code	Application Note	Jul 4, 2023
	RL78/G13 Handshake-based SPI Master Transmission/Reception Rev.1.00 PDF 861 KB 日本語 Related Files: Sample Code	Application Note	Jun 15, 2023
	RL78/G13 Handshake-based SPI Slave Transmission/Reception Rev.1.00 PDF 781 KB 日本語 Related Files: Sample Code	Application Note	Jun 15, 2023
	RL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12 PDF 126 KB Related Files: Sample Code	Application Note	Apr 26, 2023
	RL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02 PDF 129 KB Related Files: Sample Code	Application Note	Apr 26, 2023
	RL78 Family FS1015 Sensor Control Module Software Integration System PDF 182 KB Related Files: Sample Code	Application Note	Mar 3, 2023
	RL78 Family OB1203 Sensor Control Module Software Integration System PDF 188 KB Related Files: Sample Code	Application Note	Mar 3, 2023
	RL78 Family Sensor I2C Communication Middleware Control Module Software Integration System PDF 190 KB Related Files: Sample Code	Application Note	Mar 3, 2023
	RL78 Flash Programmer (RL78 Protocol B) Rev.1.00 PDF 797 KB 日本語 Related Files: Sample Code	Application Note	Feb 16, 2023
	RL78 Flash Programmer (RL78 Protocol C) Rev.1.00 PDF 823 KB 日本語 Related Files: Sample Code	Application Note	Feb 16, 2023
	RL78 Flash Programmer (RL78 Protocol A) Rev.1.00 PDF 820 KB 日本語 Related Files: Sample Code	Application Note	Feb 15, 2023
	RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 PDF 890 KB 日本語 Related Files: Sample Code	Application Note	Aug 4, 2022
	RL78 Family RL78 Hardware CRC Functions PDF 1.49 MB Related Files: Sample Code	Application Note	Jun 24, 2022
	RL78 Family RL78 Internal Temperature Sensor Calibration (Using IAR Toolchain) PDF 542 KB Related Files: Sample Code	Application Note	Jun 24, 2022
	RL78 Family Real-Time-Clock Watch Error Correction function Rev.1.10 PDF 711 KB Related Files: Sample Code	Application Note	Jun 23, 2022
	RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges)) CC-RL Rev.1.00 PDF 625 KB 日本語 Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges) CC-RL Rev.2.00 - Sample Code	Application Note	Aug 16, 2021
	RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.2.00 PDF 563 KB 日本語 Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.3.00 - Sample Code	Application Note	Aug 16, 2021
	RL78/G13 Safety Function (A/D Test) CC-RL Rev.1.01 PDF 571 KB 日本語 Related Files: Sample Code	Application Note	Jun 2, 2021
	RL78/G13, RL78/G23: Migration Guide from RL78/G13 to RL78/G23 Rev.1.00 PDF 469 KB 日本語	Application Note	Apr 13, 2021
	RL78/G14 Modbus ASCII/RTU (R01AN5380EJ0102) Rev.1.02 PDF 1.76 MB 日本語 Related Files: RL78/G14 Modbus ASCII/RTU Rev.1.02 - Sample Code	Application Note	Apr 5, 2021
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: 14-Bit PWM Rev.1.00 PDF 304 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: A/D Converter Rev.1.00 PDF 419 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Band-Gap Regulator, Power-On Reset & Low-Voltage Detection Circuits Rev.1.00 PDF 264 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: CPU architecture Rev.1.00 PDF 290 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Clock Pulse Generators Rev.1.00 PDF 383 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Exception Handling Rev.1.00 PDF 378 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: I/O Ports Rev.1.00 PDF 216 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: IIC2 Rev.1.00 PDF 261 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Power supply circuit Rev.1.00 PDF 224 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Power-Down Modes Rev.1.00 PDF 501 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: ROM (Flash memory) Rev.1.00 PDF 283 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Realtime Clock (RTC) Rev.1.00 PDF 380 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: SCI3 Rev.1.00 PDF 439 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer V Rev.1.00 PDF 481 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Watchdog Timer Rev.1.00 PDF 248 KB 日本語	Application Note	Dec 21, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer B1 Rev.1.00 PDF 323 KB 日本語	Application Note	Dec 18, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer RC Rev.1.00 PDF 413 KB 日本語	Application Note	Dec 18, 2020
	RL78/G14, H8/36109 Migration Guide from H8 to RL78: Timer RD Rev.1.00 PDF 551 KB 日本語	Application Note	Dec 7, 2020
	RL78/G13 Serial Interface IICA (for Master Transmission/Reception) CC-RL Rev.2.01 PDF 598 KB 日本語 Related Files: Sample Code	Application Note	Nov 25, 2020
	RL78/G13 Group Environmental sensor module control sample software Rev.1.10 PDF 428 KB 日本語 Related Files: Sample Code	Application Note	Aug 31, 2020
	7-Segment LED Lighting Control (Arduino API) Rev.1.00 PDF 951 KB 日本語 Related Files: RL78/G14 7-Segment LED Lighting Control (Arduino API) Rev.1.00	Application Note	Jul 10, 2020
	Arduino API Introduction Guide Rev.1.00 PDF 1.65 MB 日本語	Application Note	Jun 30, 2020
	IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes (R01AN4823EJ0110) Rev.1.10 PDF 2.36 MB 日本語 Related Files: IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes - Sample Code (r01an4823ej0110)	Application Note	Oct 9, 2019
	IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes (R01AN4819EJ0110) Rev.1.10 PDF 2.09 MB 日本語 Related Files: IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes - Sample Code (r01an4819ej0110)	Application Note	Oct 9, 2019
	RL78/G13 DALI-2 Communication driver Application Notes Rev.1.01 PDF 1.23 MB Related Files: Sample Code	Application Note	Sep 26, 2019
	RL78/G13 Group Sensirion environmental sensor module control sample software Rev.2.00 PDF 536 KB 日本語 Related Files: Sample Code	Application Note	Jul 31, 2019
	RL78/G13 CPU Clock Changing and Standby Settings (Assembly) CC-RL Rev.1.11 PDF 961 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 CPU时钟切换和待机设定（汇编语言篇） CC-RL Rev.1.00 - Sample Code	Application Note	May 20, 2019
	RL78/G13 CPU Clock Changing and Standby Settings (C Language) CC-RL Rev.1.11 PDF 976 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 CPU时钟切换和待机设定（C语言篇） CC-RL Rev.1.00 - Sample Code	Application Note	May 20, 2019
	CAN Controller Usage: Applications and Frequently Asked Questions Rev.2.03 PDF 1.81 MB	Application Note	May 15, 2019
	RL78/G13 Software UART CC-RL Rev.1.00 PDF 443 KB 日本語 Related Files: Sample Code	Application Note	May 7, 2019
	Random Number Generator Rev.1.02 PDF 560 KB	Application Note	Nov 28, 2018
	IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU Application Notes (R01AN4822EJ0210) PDF 3.59 MB 日本語 Related Files: Sample Code	Application Note	Feb 8, 2018
	RL78 Software Migration Guide Source Code Migration from Assembly Language to C Language CC-RL Rev.1.01 PDF 1.64 MB 日本語 , 简体中文	Application Note	Jan 23, 2018
	Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00 PDF 2.07 MB 日本語	Application Note	Jul 16, 2017
	Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00 PDF 1.91 MB 日本語	Application Note	Jul 16, 2017
	IAR Embedded Workbench for RL78 Programming Techniques Rev.1.00 PDF 701 KB	Application Note	Apr 14, 2017
	RL78 Family C compiler CC-RL Programming Techniques Rev.1.10 PDF 1.21 MB 日本語	Application Note	Apr 10, 2017
	Replacement Guide for R8C Family to RL78 Family (CcnvNC30) Rev.1.00 PDF 987 KB 日本語 , 简体中文 Related Files: Sample Code R8CファミリからRL78ファミリへの置き換えガイド(CcnvNC30) Rev.1.00 - Sample Code 从R8C转至RL78的迁移指南（CcnvNC30） Rev.1.00 - Sample Code	Application Note	Dec 22, 2016
	Replacement Guide from 78K0 Family to RL78 Family (CcnvCA78K0) Rev.1.00 PDF 1.47 MB 日本語 , 简体中文 Related Files: Sample Code 从78K0转至RL78的迁移指南（CcnvCA78K0） Rev.1.00 - Sample Code	Application Note	Nov 8, 2016
	RL78 Software Migration Guide Migrating from CA78K0R to CC-RL (CS+) Rev.1.00 PDF 3.19 MB 日本語 , 简体中文	Application Note	Feb 26, 2016
	RL78/G13 A/D converter One-shot conversion mode(Low power) Rev.1.00 PDF 1.30 MB 日本語 , 简体中文 Related Files: Sample Code	Application Note	Feb 5, 2016
	RL78/G13 A/D Converter (Software Trigger and Sequential Conversion Modes) [for CubeSuite+, IAR, and e2 studio] Rev.2.01 PDF 213 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 A/Dコンバータ（ソフトウエア・トリガ、連続変換モード）【開発環境：CubeSuite+、IAR、e2 studio】 Rev.3.01 - Sample Code RL78/G13 群A/D 转换器（软件触发、连续转换模式） Rev.1.00 - Sample Code	Application Note	May 16, 2014
	RL78/G13 Initialization [for CubeSuite+, IAR, and e2 studio] Rev.2.01 PDF 293 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 初期設定【開発環境：CubeSuite+、IAR、e2 studio】 Rev.3.01 - Sample Code RL78/G13 群初始设定 Rev.1.00 - Sample Code	Application Note	May 16, 2014
	Application execution in RAM (RL78) Rev.1.00 PDF 792 KB	Application Note	Apr 2, 2014
	RL78/G13 Real-Time Clock Rev.2.00 PDF 214 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 リアルタイム・クロック Rev.3.00 - Sample Code RL78/G13群实时时钟 Rev.1.00 - Sample Code	Application Note	Dec 27, 2013
	RL78 Family CubeSuite+ Startup Guide Rev.1.00 PDF 1.04 MB 日本語	Application Note	Aug 24, 2012
	RL78 Minimizing Power Consumption when Sensing Switch Inputs Rev.1.00 PDF 104 KB	Application Note	Jan 12, 2012
	RL78 Family Notes and Countermeasures Against Noise Rev.1.00 PDF 230 KB 日本語 , 简体中文	Application Note	Oct 4, 2011
	RL78/G13 Voltage Detector (Reset Mode) Rev.1.00 PDF 379 KB 日本語 , 简体中文 Related Files: Sample Code RL78/G13 電圧検出回路（リセット・モード） Rev.2.00 - Sample Code	Application Note	Sep 30, 2011
	RL78 Bootloader - One Image (R11AN0470EU0100) Rev.1.00 PDF 690 KB Related Files: RL78 Bootloader - One Image (D6004601) Rev.1.00 - Sample Code	Application Note	Aug 31, 2010
	RL78 Family Microcontrollers Brochure PDF 11.44 MB 日本語	Brochure	Mar 24, 2023
	RL78 Family Selection Guide PDF 8.04 MB 日本語	Brochure	Mar 24, 2023
	Building Automation Brochure PDF 19.79 MB 日本語	Brochure	Dec 20, 2022
	Smart Meter Solutions Catalog PDF 1.79 MB 日本語	Brochure	Sep 12, 2017
	RL78 Microcontrollers PDF 5.80 MB	Brochure	Jun 15, 2017
	Powered Up and Ready to Go Renesas/Intersil Joint Brochure PDF 5.27 MB	Brochure	May 24, 2017
	RL78The True Low Power Microcontroller Platform PDF 1.10 MB	Brochure	Mar 15, 2017
	Renesas General-Purpose Microcontrollers/Microprocessors Lineup Catalog PDF 6.12 MB 日本語	Brochure	Oct 30, 2015
	Renesas RL78 Family MCU PDF 4.62 MB	Brochure	Apr 30, 2014
	End Of Life Notice [SAF-B-22-0004] PDF 1.32 MB 日本語	End Of Life Notice	Jun 14, 2022
	[Flyer] E2Emulator[RTE0T00020KCE00000R] PDF 303 KB 日本語 , 简体中文	Flyer	Mar 24, 2022
	Renesas Software and Tools Flash Memory Programmer PG-FP6 PDF 417 KB 日本語 , 简体中文	Flyer	Mar 16, 2020
	Wireless M-Bus Stack for Automatic Meter Reading PDF 1.23 MB	Flyer	Nov 10, 2014
	RL78 - The Ultimate Low Power Microcontroller Platform PDF 3.57 MB	Flyer	Feb 1, 2012
	Semiconductor Reliability Handbook PDF 14.70 MB 日本語	General Reliability Literature	Jan 30, 2017
	RL78 Family Product Part Number Guide PDF 188 KB	Guide	Jul 12, 2023
	RL78 Software Migration Guide CS+ to e2 studio Migration (CC-RL) PDF 3.23 MB 日本語	Guide	Feb 29, 2016
	Code Generator User's Manual: RL78 API Reference PDF 6.30 MB 日本語	Manual - Development Tools	Oct 15, 2021
	EEPROM Emulation Library Type T02 (Tiny), European Release Rev.1.10 PDF 887 KB	Manual - Development Tools	Sep 13, 2019
	Data Flash Access Library Type T04 (Pico), European Release Rev.1.20 PDF 594 KB	Manual - Development Tools	Aug 29, 2019
	RL78 Family EEPROM Emulation Library Pack01 Japanese Release user's manual Rev.1.03 PDF 2.16 MB 日本語	Manual - Development Tools	Jan 29, 2016
	RL78 FAMILY HARDWARE MANUAL GUIDE -ELECTRICAL CHARACTERISTICS EDITION PDF 13.59 MB 日本語 Related Files: RL78/G10 User's Manual: Hardware Rev.3.20 RL78/G11 User's Manual: Hardware Rev.2.50 RL78/G12 User's Manual: Hardware Rev.2.31 RL78/G13 User's Manual: Hardware Rev.3.60 RL78/G13A User's Manual Hardware Rev.1.10 RL78/G14 User's Manual: Hardware Rev.3.50 RL78/G15　User's Manual: Hardware RL78/G16 User's Manual: Hardware RL78/G1A User's Manual: Hardware Rev.2.20 RL78/G1C User's Manual: Hardware Rev.1.30 RL78/G1D User's Manual: Hardware Rev.1.30 RL78/G1F User's Manual: Hardware Rev.1.20 RL78/G1G User's Manual: Hardware Rev.1.31 RL78/G1H User's Manual: Hardware Rev.1.30 RL78/G1M, G1N User's Manual Hardware Rev.1.00 RL78/G1P User's Manual Hardware Rev.1.00 RL78/G22 User's Manual: Hardware RL78/G23 User's Manual: Hardware Rev.1.21 RL78/H1D User's Manual: Hardware Rev.1.10 RL78/I1A User's Manual: Hardware Rev.3.30 RL78/I1B User's Manual: Hardware Rev.2.20 RL78/I1C User's Manual: Hardware Rev.2.20 RL78/I1D User's Manual: Hardware Rev.2.40 RL78/I1E User's Manual: Hardware Rev.1.20 RL78/L12 User's Manual: Hardware RL78/L13 User's Manual: Hardware Rev.2.30 RL78/L1A User's Manual: Hardware Rev.1.20 RL78/L1C User's Manual: Hardware Rev.2.30 RL78/G24 User's Manual: Hardware Rev.1.00 View more	Manual - Hardware	Jul 20, 2023
	RL78 Family User's Manual: Software Rev.2.30 PDF 1.30 MB 日本語	Manual - Hardware	Apr 21, 2022
	RL78/G11 Promotion Board User's Manual Rev.1.00 PDF 1.84 MB	Manual - Hardware	Jun 5, 2017
	RL78/G13 Stick(YRPBRL78G13) Rev.0.00 PDF 3.46 MB	Manual - Hardware	Mar 25, 2011
	RL78 Family DALI-2 Control Gear Library User's Manual: Basic (102) PDF 1.14 MB 日本語	Manual - Software	Oct 31, 2022
	RL78 Family DALI-2 Control Gear Library User's Manual: Colour control (209Tc) PDF 878 KB 日本語	Manual - Software	Oct 31, 2022
	RL78 Family DALI-2 Control Gear Library User's Manual: LED (207) PDF 1.21 MB 日本語	Manual - Software	Oct 31, 2022
	RL78 Family DALI-2 Input Device Library User's Manual: Basic (103) PDF 1.35 MB 日本語	Manual - Software	Oct 31, 2022
	Data Flash Access Library Type T02 (Tiny), European Release Rev.1.30 PDF 705 KB	Manual - Software	Sep 13, 2019
	Data Flash Access Library FDL-T01 RL78 Series, European Release Rev.1.10 PDF 498 KB	Manual - Software	Sep 10, 2019
	EEPROM Emulation Library Type T01, European Release, RL78 Family Rev.1.10 PDF 923 KB	Manual - Software	Sep 9, 2019
	Flash Self-programming Library Type T01, European Release Rev.1.10 PDF 806 KB	Manual - Software	Aug 29, 2019
	Notices of supplier addition to mold compound list PDF 994 KB 日本語	Other	Apr 26, 2023
	IAR Embedded Workbench® for RL78 V2.xx/V3.xx/V4.xx/V5.xx Operating Precautions Rev.1.39 PDF 850 KB	Other	Mar 28, 2023
	Semiconductor Package Mount Manual PDF 10.28 MB 日本語 , 简体中文	Other	Dec 27, 2018
	RL78/G13 GROUP SOLDERING CONDITIONS TABLE PDF 1.46 MB	Other	Apr 16, 2018
	LGA Mounting Manual PDF 1.02 MB 日本語	Other	Mar 19, 2014
	RL78/G13:VOH-IOH (Drive Current) PDF 200 KB	Other	Dec 20, 2013
	RL78/G13:VOL-IOL (Drive Current) PDF 219 KB	Other	Dec 20, 2013
	RL78/G13:Supply current characteristics (IDD-VDD) Flash ROM: 16 KB to 64 KB of 20-pin to 64-pin products PDF 406 KB	Other	Nov 25, 2013
	RL78/G13:Supply current characteristics (IDD-VDD) Flash ROM: 96 KB to 256 KB of 30-pin to 100-pin products PDF 388 KB	Other	Nov 25, 2013
	RL78/G13:Supply current characteristics (IDD-VDD) 128-pin products, and Flash ROM: 384 KB to 512 KB of 44-pin to 100-pin products PDF 337 KB	Other	Nov 15, 2012
	RL78/G10, G11, G12, G13, G14, G1C, G1D, G1F, G1G, G1H, L12, L13, I1A, I1B, I1C, I1E, H1D: A/D converter characteristics (overall error) PDF 7.61 MB	Other	Mar 31, 2008
	Addition of production site for RL78/G13 (MCO-AC-23-0023) PDF 87 KB 日本語	Product Change Notice	Jul 19, 2023
	Addition of factory for 40pin/48pin HWQFN products of RL78 family (MCO-AC-23-0012) PDF 1.36 MB 日本語	Product Change Notice	May 18, 2023
	Addition of production sites for RL78/G11(24pin), G1F, G13, G14, G1C (MCP-AC-22-0034) PDF 1.32 MB 日本語	Product Change Notice	Nov 1, 2022
	Factory addition and assembly materials change for RL78 family LQFP package products (MCP-AC-22-0004) PDF 923 KB 日本語	Product Change Notice	Jan 20, 2022
	Assembly materials change for RL78 family LQFP package products. PDF 596 KB 日本語	Product Change Notice	Jan 20, 2022
	Assembly factory addition and assembly materials addition & change for RL78 family LQFP package products (MCP-AC-21-0010) PDF 1.02 MB 日本語	Product Change Notice	Dec 28, 2021
	Assembly & sorting factory addition, assembly materials addition & change and wafer process factory addition for RL78 family LQFP package products (MCP-AC-21-0018) PDF 550 KB 日本語	Product Change Notice	Dec 26, 2021
	Unification of a JEDEC tray and a embossed carrier tape for LQFP package (Additional Information & Correction) PDF 4.86 MB 日本語	Product Change Notice	Jan 23, 2018
	Unification of a JEDEC tray and a embossed carrier tape for LQFP package ( PC-WRP-A001B/E ) PDF 3.74 MB 日本語	Product Change Notice	Mar 8, 2017
	Unification of a JEDEC tray and a embossed carrier tape for LQFP package ( PC-WRP-A001A/E ) PDF 1.46 MB 日本語	Product Change Notice	Jul 1, 2016
	R5F100XXX Reliability Report PDF 594 KB	Product Reliability Report	Jul 14, 2022
	R5F101XXX Reliability Report PDF 545 KB	Product Reliability Report	Jul 14, 2022
	RL78/G11 Promotion Board - Quick Start Guide PDF 816 KB	Quick Start Guide	Jun 5, 2017
	Code Generator for RL78 CS+ Code Generator for RL78 (CS+ for CC/CA,CX) V2.21.00, e2 studio Code Generator Plug-in V2.18.0, AP4 for RL78 V1.20.00, Applilet3 for RL78 V1.20.00 Release Note PDF 1.06 MB 日本語	Release Note	Oct 15, 2021
	RL78/G11 Promotion Board - Schematics PDF 62 KB	Schematic	Jun 5, 2017
	RL78/G13 Descriptions in the User's Manual: Hardware Rev.3.51 Changed PDF 880 KB 日本語	Technical Update	Jan 19, 2023
	Restriction regarding reading data Flash memory PDF 213 KB 日本語	Technical Update	Apr 10, 2020
	Restriction regarding Watchdog timer interrupt PDF 154 KB 日本語	Technical Update	Apr 3, 2018
	Restriction regarding Watchdog timer (TN-RLx-A069A/E) PDF 186 KB 日本語	Technical Update	Nov 21, 2016
	Precaution of using REAL-TIME CLOCK (TN-RLx-A046A/E) PDF 266 KB 日本語	Technical Update	Jul 6, 2015
	Inner box change according to dampproof bag change and dampproof bag change PDF 3.10 MB 日本語	Technical Update	Aug 20, 2013
	QB-RL78G13 In-Circuit Emulator for RL78/G13 - Upgrade PDF 74 KB 日本語	Technical Update	Apr 18, 2011
	QB-RL78G13 In-Circuit Emulator for RL78/G13 - Usage Restrictions PDF 68 KB 日本語	Technical Update	Apr 18, 2011
Add 325 hidden items 147 items

Design & Development

Software & Tools

Software title	Software type	Company

FFT Library Fast Fourier Transform (FFT) Library	DSP / FFT	Renesas
FAT File System [M3S-TFAT-Tiny] for the RL78 Family FAT file system for RL78 Family	File System	Renesas
RI78V4 V1 Real-time OS for RL78 Family and 78K0R μITRON4.0 Specification real-time OS for RL78 Family and 78K0R [Required IDE : CS+]	ITRON OS	Renesas
RI78V4 V2 Real-time OS for RL78 Family μITRON Specification real-time OS for RL78 Family [Required IDE : CS+] Downloads [Trial Software] RI78V4 V2.00.00 Real-time OS for RL78 Family (supported by CS+)	ITRON OS	Renesas
Crypto Library Robust encode library to ensure security for all types of system developments	Security / Crypto	Renesas
Sound Playback/Compression System [M3S-S2-Tiny] for RL78 Family Sound playback system for RL78 Family	Sound / Voice	Renesas
AP4, Applilet Peripheral I/O driver generator compatible with third-party compilers and GNU compiler (for RZ, V850, RX, RL78, and 78K) Downloads Code Generator User's Manual: RL78 API Reference Code Generator for RL78 CS+ Code Generator for RL78 (CS+ for CC/CA,CX) V2.21.00, e2 studio Code Generator Plug-in V2.18.0, AP4 for RL78 V1.20.00, Applilet3 for RL78 V1.20.00 Release Note	Code Generator	Renesas
Code Generator Plug-in Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX] Downloads Code Generator User's Manual: RL78 API Reference RL78/G13 Group Sensirion environmental sensor module control sample software Rev.2.00 RL78/G13 CPU Clock Changing and Standby Settings (Assembly) CC-RL Rev.1.11 RL78/G13 CPU Clock Changing and Standby Settings (C Language) CC-RL Rev.1.11 RL78/G13 Software UART CC-RL Rev.1.00 Code Generator Common (CS+ for CA,CX) V1.16.00 Code Generator for RL78 CS+ Code Generator for RL78 (CS+ for CC/CA,CX) V2.21.00, e2 studio Code Generator Plug-in V2.18.0, AP4 for RL78 V1.20.00, Applilet3 for RL78 V1.20.00 Release Note RL78/G13 Safety Function (A/D Test) CC-RL Rev.1.01 RL78/G13 Safety Function (A/D Test) CC-RL Rev.1.01 - Sample Code	Code Generator	Renesas
C Compiler Package for RL78 Family [CC-RL] C Compiler Package for RL78 Family [IDE: CS+, e² studio]	Compiler/Assembler	Renesas
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] Downloads [Flyer] E2Emulator[RTE0T00020KCE00000R]Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00 Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00	Emulator	Renesas
E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]	Emulator	Renesas
PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]	Programmer (Unit/SW)	Renesas
Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]	Programmer (Unit/SW)	Renesas
Code Flash Libraries (Flash Self Programming Libraries) Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products Downloads Flash Self-programming Library Type T01, European Release Rev.1.10 Flash Self Programming Library Type01 Package Ver.3.00 for the RL78 Family	Self Programming Library (Flash Library)	Renesas
Data Flash Libraries Libraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products Downloads Data Flash Access Library Type T02 (Tiny), European Release Rev.1.30 EEPROM Emulation Library Type T02 (Tiny), European Release Rev.1.10 Data Flash Access Library FDL-T01 RL78 Series, European Release Rev.1.10 EEPROM Emulation Library Type T01, European Release, RL78 Family Rev.1.10 Data Flash Access Library Type T04 (Pico), European Release Rev.1.20 Data Flash Library Type04 Package Ver.2.00 for the RL78 Family EEPROM Emulation Library Pack01 Package Ver.2.10 for RL78 Family EEPROM Emulation Library Pack02 Package Ver.2.00 for RL78 Family RL78 Family EEPROM Emulation Library Pack01 Japanese Release user's manual Rev.1.03	Self Programming Library (Flash Library)	Renesas
Simulator for e² studio of RL78 Family Simulator for RL78 Family [Support IDE: e2 studio] (Note: This product is included in the Renesas IDE "e2 studio" and is not available separately.)	Simulator	Renesas
RL78 Web Simulator Right online tools to support initial evaluation of the low power consumption RL78 Family. Lineup: MCU Simulator Online and Current Consumption Calculator. Free of charge.	Simulator	Renesas
QE for Current Consumption: A Dedicated Tool for Current Measurement Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78] Downloads Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00 Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00	Solution Toolkit	Renesas
CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)	IDE and Coding Tool	Renesas
Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. Downloads HS300x Sample application - Sample Code HS300x Sample application - Sample Code RL78 Family Sensor Control Modules Software Integration System Rev.1.50 RL78 Family Sensor I2C Communication Middleware Control Module Software Integration System RL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12 RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22 RL78 Family Sensor I2C Communication Middleware Control Module Software Integration System RL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12 RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22 - Sample Code FS2012 Sample application - Sample Code RL78 Family OB1203 Sensor Control Module Software Integration System RL78 Family OB1203 Sensor Control Module Software Integration System RL78 Family FS1015 Sensor Control Module Software Integration System RL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02 RL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02 ZMOD4xxx Sample application - Sample Code	Sensor	Renesas
e² studio - information for RL78 Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory Downloads RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 - Sample Code RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04	Serial Memory	Renesas
Add 8 hidden items 22 items

Software Downloads

Software title Title	Software type Type	Date Date
End Of Life Notice [SAF-B-22-0004] PDF 1.32 MB 日本語	End Of Life Notice	Jun 14, 2022
RL78/G13 Oscillation circuit characteristics PDF 137 KB 日本語	Software & Tools - Other	Aug 30, 2018
Software for Floating License Management V1.00.00 EXE 134.85 MB 日本語	Upgrade - Compiler	Apr 25, 2016
Renesas Tool License Manager V1.25.00 EXE 3.35 MB 日本語	Upgrade - Compiler	Apr 20, 2016
RL78,78K0R Compiler CA78K0R V1.72 EXE 18.81 MB 日本語	Upgrade - Compiler	Mar 7, 2016
Upgrade tool (Firmware V2.03) for QB-RL78G13 ZIP 1.97 MB 日本語	Upgrade - Debugger	Oct 20, 2016
Code Generator Common (CS+ for CA,CX) V1.16.00 ZIP 7.85 MB 日本語	Upgrade - IDE	Oct 20, 2020
CS+ QE V9.04.00 ZIP 4.02 MB 日本語	Upgrade - IDE	Jul 20, 2020
CS+ for CA,CX Device Information for RL78 V8.04.00 ZIP 15.81 MB 日本語	Upgrade - IDE	Jul 20, 2020
CS+ for CA,CX Emulator Utilities V1.03.00 ZIP 12.67 MB 日本語	Upgrade - IDE	Jul 20, 2020
CS+ for CC Device Information for RL78 V8.04.00 ZIP 15.80 MB 日本語	Upgrade - IDE	Jul 20, 2020
CS+ Partner OS Aware Debugging Plug-in V3.01.00 ZIP 2.47 MB 日本語	Upgrade - OS	Jun 22, 2015
[Trial Software] RI78V4 V2.00.00 Real-time OS for RL78 Family (supported by CS+) ZIP 14.06 MB 日本語	Upgrade - OS	Jun 5, 2015
CubeSuite+ Partner OS Aware Debugging Plug-in V2.01.00 ZIP 2.54 MB 日本語	Upgrade - OS	Jul 22, 2013
Firmware for PG-FP5 V2.17 ZIP 289 KB 日本語	Upgrade - Programmer	Apr 22, 2019
Programming GUI for PG-FP5 V2.17 ZIP 56.45 MB 日本語	Upgrade - Programmer	Apr 22, 2019
Data Flash Library Type04 Package Ver.2.00 for the RL78 Family ZIP 1.64 MB 日本語	Upgrade - Programmer	Jan 21, 2019
Flash Self Programming Library Type01 Package Ver.3.00 for the RL78 Family ZIP 1.74 MB 日本語	Upgrade - Programmer	Jan 21, 2019
EEPROM Emulation Library Pack01 Package Ver.2.10 for RL78 Family ZIP 1.67 MB 日本語	Upgrade - Programmer	Jan 22, 2018
EEPROM Emulation Library Pack02 Package Ver.2.00 for RL78 Family ZIP 7.57 MB 日本語	Upgrade - Programmer	Sep 21, 2017
Programming GUI for PG-FP5 V2.13 EXE 58.78 MB 日本語	Upgrade - Programmer	Mar 5, 2015
FPGA data for PG-FP5 V4 ZIP 162 KB 日本語	Upgrade - Programmer	Jul 15, 2011
Add 11 hidden items 22 items

Sample Code

Filters
Title Title	Type	Date Date Date
	FS2012 Sample application - Sample Code [Software=FSP\|v4.5.0;RX Driver Package\|v1.35],[Toolchains=GNU ARM Embedded\|v10.3.1.20210824;CC-RX\|v3.02.00;GNURX\|8.3.0.202004;CC-RL\|v1.10.00;GNURL\|4.9.2.202103;] ZIP 64.91 MB Application: IoT Applications Compiler: CC-RL, CC-RX, GNU ARM Embedded, GNURL78, GNURX, ICCARM, ICCRL78, ICCRX Function: Application Example, Communication Interface IDE: e2 studio, IAR EWARM, IAR EWRL78, IAR EWRX Related Files: Application Note	Sample Code	Sep 7, 2023
	HS300x Sample application - Sample Code [Software=FSP\|v4.5.0;RX Driver Package\|v1.35],[Toolchains=GNU ARM Embedded\|v10.3.1.20210824;CC-RX\|v3.02.00;GNURX\|8.3.0.202004;CC-RL\|v1.10.00;GNURL\|4.9.2.202103;] ZIP 58.03 MB Application: IoT Applications Compiler: CC-RL, CC-RX, GNU ARM Embedded, GNURL78, GNURX, ICCARM, ICCRL78, ICCRX Function: Application Example, Communication Interface IDE: e2 studio, IAR EWARM, IAR EWRL78, IAR EWRX Related Files: Application Note	Sample Code	Sep 7, 2023
	RL78 Family Reality AI Data Acquisition Module ( Data Collector / Data Shipper ) - Sample Code Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 5.13 MB Application: Consumer Electronics, Industrial Compiler: CC-RL Function: Application Example IDE: e2 studio Related Files: Application Note	Sample Code	Aug 25, 2023
	RL78 Family Reality AI Data Collector Control Module Software Integration System Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 1.29 MB Application: Consumer Electronics, Industrial Compiler: CC-RL Function: Other IDE: e2 studio Related Files: Application Note	Sample Code	Aug 25, 2023
	RL78 Family Reality AI Data Shipper Control Module Software Integration System Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 1.28 MB Application: Consumer Electronics, Industrial Compiler: CC-RL Function: Other IDE: e2 studio Related Files: Application Note	Sample Code	Aug 25, 2023
	RL78 Family Reality AI UART Communication Module Software Integration System Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 1.27 MB Application: Consumer Electronics, Industrial Compiler: CC-RL Function: Communication Interface IDE: e2 studio Related Files: Application Note	Sample Code	Aug 25, 2023
	RL78 Family ZMOD4410, ZMOD4450 and ZMOD4510 Sensor Control Module Software Integration System Rev.1.22 - Sample Code ZIP 3.06 MB Application: IoT Applications Function: Application Example, Communication Interface, Driver or Library Related Files: Application Note	Sample Code	Jul 4, 2023
	RL78/G13 Handshake-based SPI Master Transmission/Reception Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 4.12 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications Compiler: CC-RL, ICCRL78 Function: Application Example, Communication Interface IDE: CS+ for CC, e2 studio, IAR EWRL78 Related Files: Application Note	Sample Code	Jun 15, 2023
	RL78/G13 Handshake-based SPI Slave Transmission/Reception Rev.1.00 [Toolchains=CC-RL\|V1.12.00] ZIP 3.94 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications Compiler: CC-RL, ICCRL78 Function: Application Example, Communication Interface IDE: CS+ for CC, e2 studio, IAR EWRL78 Related Files: Application Note	Sample Code	Jun 15, 2023
	RL78 Family FS2012 Sensor Control Module Software Integration System Rev.1.12 ZIP 3.60 MB Application: IoT Applications Function: Application Example, Communication Interface, Driver or Library Related Files: Application Note	Sample Code	Apr 26, 2023
	RL78 Family HS400X Sensor Control Module Software Integration System Rev.1.02 ZIP 3.60 MB Application: IoT Applications Function: Application Example, Communication Interface, Driver or Library Related Files: Application Note	Sample Code	Apr 26, 2023
	RL78 Family OB1203 Sensor Control Module Software Integration System ZIP 3.77 MB Application: IoT Applications Compiler: CC-RL, CC-RX, ICCRL78 Function: Application Example, Communication Interface, Driver or Library IDE: CS+, e2 studio, IAR EWRL78 Related Files: Application Note	Sample Code	Mar 3, 2023
	RL78 Family Sensor I2C Communication Middleware Control Module Software Integration System ZIP 3.74 MB Application: IoT Applications Function: Application Example, Communication Interface, Driver or Library Related Files: Application Note	Sample Code	Mar 3, 2023
	RL78 Flash Programmer (RL78 Protocol B) Rev.1.00 ZIP 18.57 MB 日本語 Function: Programmer Related Files: Application Note	Sample Code	Feb 16, 2023
	RL78 Flash Programmer (RL78 Protocol C) Rev.1.00 ZIP 26.69 MB 日本語 Function: Programmer Related Files: Application Note	Sample Code	Feb 16, 2023
	RL78 Flash Programmer (RL78 Protocol A) Rev.1.00 ZIP 18.63 MB 日本語 Function: Programmer Related Files: Application Note	Sample Code	Feb 15, 2023
	RX Family, RL78 Family, 78K0R/Kx3-L Macronix International MX25/66L Family Serial NOR Flash Memory Control Software Rev.1.04 - Sample Code [Toolchains=CC-RL\|v1.10.00;ICCRL78\|4.21.1.2409;LLVM for Renesas RL78\|10.0.0.202203] ZIP 2.00 MB Application: Consumer Electronics, Industrial Compiler: CC-RL, ICCRL78, LLVM Function: Driver or Library IDE: CS+, e2 studio, IAR EWRL78 Related Files: Application Note	Sample Code	Aug 4, 2022
	RL78 Family RL78 Hardware CRC Functions ZIP 2.43 MB Application: Consumer Electronics, Industrial, IoT Applications Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78 Related Files: Application Note	Sample Code	Jun 24, 2022
	RL78 Family RL78 Internal Temperature Sensor Calibration (Using IAR Toolchain) ZIP 637 KB Application: Consumer Electronics, Industrial, IoT Applications Compiler: ICCRL78 IDE: IAR EWRL78 Related Files: Application Note	Sample Code	Jun 24, 2022
	RL78 Family Real-Time-Clock Watch Error Correction function Rev.1.10 ZIP 868 KB Application: Consumer Electronics, Industrial, IoT Applications Compiler: ICCRL78 Function: Application Example, Other peripherals IDE: IAR EWRL78 Related Files: Application Note	Sample Code	Jun 23, 2022
	RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges) CC-RL Rev.2.00 - Sample Code ZIP 692 KB 日本語 Compiler: CC-RL Function: Timer IDE: CS+, e2 studio Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement (Both edges)) CC-RL Rev.1.00	Sample Code	Aug 16, 2021
	RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.3.00 - Sample Code ZIP 636 KB 日本語 Compiler: CC-RL Function: Timer IDE: CS+, e2 studio Related Files: RL78/G13 Timer Array Unit (Pulse Interval Measurement) CC-RL Rev.2.00	Sample Code	Aug 16, 2021
	RL78/G13 Safety Function (A/D Test) CC-RL Rev.1.01 - Sample Code ZIP 1.47 MB 日本語 Compiler: CC-RL Function: Security IDE: CS+, e2 studio Related Files: Application Note	Sample Code	Jun 2, 2021
	RL78/G14 Modbus ASCII/RTU Rev.1.02 - Sample Code ZIP 3.09 MB Application: Industrial Compiler: CC-RL Function: Communication Interface IDE: CS+ for CC, e2 studio Related Files: RL78/G14 Modbus ASCII/RTU (R01AN5380EJ0102) Rev.1.02	Sample Code	Apr 5, 2021
	RL78/G13 Serial Interface IICA (for Slave Transmission/Reception) CC-RL Rev.2.01 - Sample Code ZIP 2.49 MB Compiler: CC-RL Related Files: Application Note	Sample Code	Dec 4, 2020
	RL78/G13 Group Environmental sensor module control sample software Rev.1.10 - Sample Code ZIP 858 KB Compiler: CC-RL IDE: e2 studio Related Files: Application Note	Sample Code	Aug 31, 2020
	IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes - Sample Code (r01an4823ej0110) ZIP 2.37 MB 日本語 Compiler: CA78K0R IDE: CS+ Related Files: IEC60730/60335 Self Test Library of CARL78 for RL78 MCU extended Application Notes (R01AN4823EJ0110) Rev.1.10	Sample Code	Oct 9, 2019
	IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes - Sample Code (r01an4819ej0110) ZIP 14.12 MB 日本語 Compiler: CC-RL IDE: CS+ Related Files: IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU extended Application Notes (R01AN4819EJ0110) Rev.1.10	Sample Code	Oct 9, 2019
	RL78/G13 DALI-2 Communication driver Application Notes Rev.1.01 - Sample Code ZIP 1.29 MB Compiler: CC-RL IDE: CS+ Related Files: Application Note	Sample Code	Sep 26, 2019
	RL78/G13 Group Sensirion environmental sensor module control sample software Rev.2.00 - Sample Code ZIP 1.17 MB Compiler: CC-RL IDE: e2 studio Related Files: Application Note	Sample Code	Jul 31, 2019
	RL78/G13 CPU Clock Changing and Standby Settings (Assembly) CC-RL Rev.1.11 - Sample Code ZIP 2.01 MB Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	May 20, 2019
	RL78/G13 CPU Clock Changing and Standby Settings (C Language) CC-RL Rev.1.11 - Sample Code ZIP 2.11 MB Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	May 20, 2019
	RL78/G13 Software UART CC-RL Rev.1.00 - Sample Code ZIP 1.19 MB Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	May 7, 2019
	IEC60730/60335 Self Test Library of CCRL78 for RL78 MCU Application Notes (r01an4822ej0210) - Sample Code ZIP 3.52 MB 日本語 Compiler: CC-RL IDE: CS+ Related Files: Application Note	Sample Code	Feb 8, 2018
	Replacement Guide for R8C Family to RL78 Family (CcnvNC30) Rev.1.00 - Sample Code ZIP 1.42 MB Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	Dec 22, 2016
	Replacement Guide from 78K0 Family to RL78 Family (CcnvCA78K0) Rev.1.00 - Sample Code ZIP 2.08 MB 日本語 Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	Nov 8, 2016
	RL78/G12 Self-Programming (Received Data via UART) Rev.1.10 - Sample Code ZIP 403 KB 日本語 Compiler: CA78K0R IDE: CS+ for CA, CX Related Files: Application Note	Sample Code	Jun 1, 2016
	RL78/G13 Self-Programming (Received Data via CSI) Rev.1.10 - Sample Code ZIP 350 KB 日本語 Compiler: CA78K0R IDE: CS+ for CA, CX Related Files: Application Note	Sample Code	Jun 1, 2016
	RL78/G13 Self-Programming (Received Data via IIC) Rev.1.10 - Sample Code ZIP 366 KB 日本語 Compiler: CA78K0R IDE: CS+ for CA, CX Related Files: Application Note	Sample Code	Jun 1, 2016
	RL78/G13 Self-Programming (Received Data via UART) Rev.1.10 - Sample Code ZIP 356 KB 日本語 Compiler: CA78K0R IDE: CS+ for CA, CX Related Files: Application Note	Sample Code	Jun 1, 2016
	RL78/G13 Self-Programming (Received Data via IIC) CC-RL Rev.1.00 - Sample Code ZIP 510 KB 日本語 Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	Feb 8, 2016
	RL78/G13 Self-Programming (Received Data via CSI) CC-RL Rev.1.00 - Sample Code ZIP 514 KB 日本語 Compiler: CC-RL IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	Jan 29, 2016
	RL78/G13 Self-Programming (Received Data via UART) CC-RL Rev.1.00 - Sample Code ZIP 433 KB 日本語 Compiler: CC-RL IDE: CS+, e2 studio Related Files: Application Note	Sample Code	May 28, 2015
	RL78/G13 Boot Loader through SCI Rev.1.00 - Sample Code ZIP 1.17 MB IDE: CS+ Related Files: Application Note	Sample Code	Jan 22, 2013
	RL78 Bootloader - One Image (D6004601) Rev.1.00 - Sample Code ZIP 22.37 MB Compiler: CC-RL IDE: e2 studio Related Files: RL78 Bootloader - One Image (R11AN0470EU0100) Rev.1.00	Sample Code	Aug 31, 2010
Add 143 hidden items 45 items

Boards & Kits

QB-R5F100LE-TB

Evaluation

Order Now

RL78/G13 (R5F100LE) Target Board

As a CPU board usable in connection with the on-chip debugging emulator E2, E2 Lite, E1(discontinued product), this product achieves simple and easy evaluation of the...

QB-R5F100SL-TB

Evaluation

Order Now

RL78/G13 (R5F100SLAFB) Target Board

As a CPU board usable in connection with the on-chip debugging emulator E2, E2 Lite, E1(discontinued product), this product achieves simple and easy evaluation of the...

RL78/G13-Starter-Kit

Starter

Order Now

Renesas Starter Kit for RL78/G13

The Renesas Starter Kit for RL78/G13 is intended as a user-friendly introductory and evaluation tool for the RL78/G13 microcontroller. The board also provides a useful...

Featured Documents:

RTK0EE0007D02001BJ

Evaluation

Order Now

CPX3 Evaluation Kit for DC under 48V (J80D2 with RL78/G13)

This power line communication evaluation kit for direct current (DC) power lines can be used to carry out software development and system evaluation using the R9A06G037...

Featured Documents:

Smart-Medicine-Box

Reference

Order Now

Smart Medicine Box Reference Design

The Smart Medicine Box is designed to ensure consistent medicine intake by patients. Using a dedicated smartphone app, users can setup their phones to display...

Featured Documents:

Smart-Medicine-Box-with-BLE

Reference

Order Now

Smart Medicine Box with BLE Reference Design

The Smart Medicine Box is designed to ensure consistent medicine intake by patients. Using a dedicated smartphone app, users can setup their phones to display...

Featured Documents:

Wi-Fi-Smart-Power-Strip

Reference

Order Now

Wi-Fi Smart Power Strip Reference Design

A smart power strip is a popular household appliance, which is widely used in intelligent linkage control and power saving of connected devices, such as a mainframe...

Featured Documents:

YRDKRL78G13

Demonstration

Order Now

YRDKRL78G13 Demonstration Kit for RL78/G13

The Renesas Demonstration Kit (RDK) for RL78/G13 is an evaluation and demonstration tool for Renesas RL78/G13 microcontrollers. The goal is to provide the user with a...

Featured Documents:

YRPBRL78G13

Evaluation

Order Now

YRPBRL78G13 Promotion Board for RL78/G13

The YRPBRL78G13 is a promotion board for the new Renesas RL78 microcontroller family. It supports on-board debugging, flash programming, and is pre-programmed to work...

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title Title	Type Type	Date Date
IBIS Data for RL78/G13 microcontroller ZIP 356 KB 日本語	Model - IBIS	Jul 27, 2016
1 item

Product Options

Processing table

	PLP	Bit Size	CPU	Program Memory (KB)	Data Flash (KB)	RAM (KB)	Lead Count (#)	Supply Voltage (V)	Operating Freq (Max) (MHz)	RTC	LVD	DMA	I/O Ports	Timer	ADC	DAC	Ethernet	USB	UART (#)	SPI (#)	I2C (#)	CAN (ch)	LIN (#)	Human Machine Interface	Pkg. Type	Temp. Range	Buy / Sample
(1213) Active (1360) Obsolete / NRND / LTB		16	RL78	16 32 48 64 96 128 192 256 384 512			20 24 25 30 32 36 40 44 48 52 64 80 100 128	1.6 - 5.5 2.4 - 5.5	32	Yes	Yes	Yes	16 20 21 26 28 32 36 40 44 48 58 74 92 120	12-bit x 1-ch 16-bit x 12-ch 16-bit x 16-ch 16-bit x 8-ch 8-bit x 4-ch	10-bit x 10-ch 10-bit x 12-ch 10-bit x 17-ch 10-bit x 20-ch 10-bit x 26-ch 10-bit x 6-ch 10-bit x 8-ch 10-bit x 9-ch		No		2 3 4	0	2 3 4 5 6 7 10		0 1		HWQFN LFQFP LQFP LSSOP TSSOP VFBGA WFLGA	-40 to 105°C -40 to 85°C	Buy / Quote Get Samples
Part Number	Logical Operator	Logical Operator	Logical Operator	Logical Operator			Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator
R5F101LEABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	64	0	4	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101LEABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	64	0	4	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1008CALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	4	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1008CALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	4	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1008AALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	4	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1008AALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	4	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1008DALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	4	3	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F100LCABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	32	4	2	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100LCABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	32	4	2	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100LFABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	96	8	8	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100LFABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	96	8	8	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1008DALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	4	3	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F101LHABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	192	0	16	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101LHABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	192	0	16	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1008EALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	4	4	25	1.6 - 5.5	32	Yes	Yes	Yes	21	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1008EALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	4	4	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F100CAALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	4	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101LJABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	256	0	20	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101LJABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	256	0	20	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100CAALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	4	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F100CDALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	4	3	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F100CDALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	4	3	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F100CCALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	4	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F100CCALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	4	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F1018AALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	0	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1018AALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	0	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F101LFABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	96	0	8	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101LFABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	96	0	8	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1018DALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	0	3	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1018DALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	0	3	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F100LGABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	128	8	12	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100LGABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	128	8	12	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1018CALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	0	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1018CALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	0	2	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F101LGABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	128	0	12	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101LGABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	128	0	12	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F1018EALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	0	4	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F1018EALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	0	4	25	1.6 - 5.5	32	Yes	Yes	Yes	21	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 6-ch		No		2	0	3		0		WFLGA	-40 to 85°C	Buy / Quote
R5F100LHABG#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	192	8	16	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F100LHABG#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2027 Dec	16	RL78	192	8	16	64	1.6 - 5.5	32	Yes	Yes	Yes	58	12-bit x 1-ch, 16-bit x 8-ch	10-bit x 12-ch		No		3	0	7		1		VFBGA	-40 to 85°C	Buy / Quote
R5F101CCALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	0	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CCALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	32	0	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CAALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	0	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CAALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	16	0	2	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CEALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	0	4	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CEALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	64	0	4	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CDALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	0	3	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CDALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	48	0	3	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CFALA#U0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	96	0	8	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote
R5F101CFALA#W0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	2028 Dec	16	RL78	96	0	8	36	1.6 - 5.5	32	Yes	Yes	Yes	32	8-bit x 4-ch, 16-bit x 8-ch	10-bit x 8-ch		No		3	0	5		1		WFLGA	-40 to 85°C	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Support

RL78 Forum

RL78 Family FAQs

Contact Technical Support

Get Samples

MCU / MPU Selection Tool

RL78 Family Development Guide

Contact a Sales Representative

Orderable Part ID	Sample
R5F1006AASP#30	Availability Add to request
R5F1006AGSP#30	Availability Add to request
R5F1006CASP#30	Availability Add to request
R5F1006CGSP#30	Availability Add to request
R5F1006DASP#30	Availability Add to request
R5F1006DGSP#30	Availability Add to request
R5F1006EASP#30	Availability Add to request
R5F1006EGSP#30	Availability Add to request
R5F100AAASP#30	Availability Add to request
R5F100AAGSP#30	Availability Add to request
R5F100ACASP#30	Availability Add to request
R5F100ACGSP#30	Availability Add to request
R5F100ADASP#30	Availability Add to request
R5F100ADGSP#30	Availability Add to request
R5F100AEASP#30	Availability Add to request
R5F100AEGSP#30	Availability Add to request
R5F100AFASP#30	Availability Add to request
R5F100AFGSP#30	Availability Add to request
R5F100AGASP#30	Availability Add to request
R5F100AGGSP#30	Availability Add to request
R5F100BAANA#00	Availability Add to request
R5F100BAANA#20	Availability Add to request
R5F100BAGNA#00	Availability Add to request
R5F100BAGNA#20	Availability Add to request
R5F100BCANA#00	Availability Add to request
R5F100BCANA#20	Availability Add to request
R5F100BCGNA#00	Availability Add to request
R5F100BCGNA#20	Availability Add to request
R5F100BDANA#00	Availability Add to request
R5F100BDANA#20	Availability Add to request
R5F100BDGNA#00	Availability Add to request
R5F100BDGNA#20	Availability Add to request
R5F100BEANA#00	Availability Add to request
R5F100BEANA#20	Availability Add to request
R5F100BEGNA#00	Availability Add to request
R5F100BEGNA#20	Availability Add to request
R5F100FAAFP#30	Availability Add to request
R5F100FAGFP#30	Availability Add to request
R5F100FCAFP#30	Availability Add to request
R5F100FCGFP#30	Availability Add to request
R5F100FDAFP#30	Availability Add to request
R5F100FDGFP#30	Availability Add to request
R5F100FEAFP#30	Availability Add to request
R5F100FEGFP#30	Availability Add to request
R5F100FFAFP#30	Availability Add to request
R5F100FFGFP#30	Availability Add to request
R5F100FGAFP#30	Availability Add to request
R5F100FGGFP#30	Availability Add to request
R5F100FHAFP#30	Availability Add to request
R5F100FHGFP#30	Availability Add to request
R5F100FJAFP#30	Availability Add to request
R5F100FJGFP#30	Availability Add to request
R5F100FKAFP#30	Availability Add to request
R5F100FKDFP#30	Availability Add to request
R5F100FLAFP#30	Availability Add to request
R5F100FLDFP#30	Availability Add to request
R5F100GAAFB#30	Availability Add to request
R5F100GAGFB#30	Availability Add to request
R5F100GCAFB#30	Availability Add to request
R5F100GCGFB#30	Availability Add to request
R5F100GDAFB#30	Availability Add to request
R5F100GDGFB#30	Availability Add to request
R5F100GEAFB#30	Availability Add to request
R5F100GEGFB#30	Availability Add to request
R5F100GFAFB#30	Availability Add to request
R5F100GFGFB#30	Availability Add to request
R5F100GGAFB#30	Availability Add to request
R5F100GGGFB#30	Availability Add to request
R5F100GHAFB#30	Availability Add to request
R5F100GHGFB#30	Availability Add to request
R5F100GJAFB#30	Availability Add to request
R5F100GJGFB#30	Availability Add to request
R5F100GKAFB#30	Availability Add to request
R5F100GKDFB#30	Availability Add to request
R5F100GLAFB#30	Availability Add to request
R5F100GLDFB#30	Availability Add to request
R5F100JCAFA#30	Availability Add to request
R5F100JCGFA#30	Availability Add to request
R5F100JDAFA#30	Availability Add to request
R5F100JDGFA#30	Availability Add to request
R5F100JEAFA#30	Availability Add to request
R5F100JEGFA#30	Availability Add to request
R5F100JFAFA#30	Availability Add to request
R5F100JFGFA#30	Availability Add to request
R5F100JGAFA#30	Availability Add to request
R5F100JGGFA#30	Availability Add to request
R5F100JHAFA#30	Availability Add to request
R5F100JHGFA#30	Availability Add to request
R5F100JJAFA#30	Availability Add to request
R5F100JJGFA#30	Availability Add to request
R5F100JKAFA#30	Availability Add to request
R5F100JKDFA#30	Availability Add to request
R5F100JLAFA#30	Availability Add to request
R5F100JLDFA#30	Availability Add to request
R5F100LCAFA#30	Availability Add to request
R5F100LCAFB#30	Availability Add to request
R5F100LCGFA#30	Availability Add to request
R5F100LCGFB#30	Availability Add to request
R5F100LDAFA#30	Availability Add to request
R5F100LDAFB#30	Availability Add to request
R5F100LDGFA#30	Availability Add to request
R5F100LDGFB#30	Availability Add to request
R5F100LEAFA#30	Availability Add to request
R5F100LEAFB#30	Availability Add to request
R5F100LEGFA#30	Availability Add to request
R5F100LEGFB#30	Availability Add to request
R5F100LFAFA#30	Availability Add to request
R5F100LFAFB#30	Availability Add to request
R5F100LFGFA#30	Availability Add to request
R5F100LFGFB#30	Availability Add to request
R5F100LGAFA#30	Availability Add to request
R5F100LGAFB#30	Availability Add to request
R5F100LGGFA#30	Availability Add to request
R5F100LGGFB#30	Availability Add to request
R5F100LHAFA#30	Availability Add to request
R5F100LHAFB#30	Availability Add to request
R5F100LHGFA#30	Availability Add to request
R5F100LHGFB#30	Availability Add to request
R5F100LJAFA#30	Availability Add to request
R5F100LJAFB#30	Availability Add to request
R5F100LJGFA#30	Availability Add to request
R5F100LJGFB#30	Availability Add to request
R5F100LKAFA#30	Availability Add to request
R5F100LKAFB#30	Availability Add to request
R5F100LKDFA#30	Availability Add to request
R5F100LKDFB#30	Availability Add to request
R5F100LLAFA#30	Availability Add to request
R5F100LLAFB#30	Availability Add to request
R5F100LLDFA#30	Availability Add to request
R5F100LLDFB#30	Availability Add to request
R5F100MFAFA#30	Availability Add to request
R5F100MFAFB#30	Availability Add to request
R5F100MFGFA#30	Availability Add to request
R5F100MFGFB#30	Availability Add to request
R5F100MGAFA#30	Availability Add to request
R5F100MGAFB#30	Availability Add to request
R5F100MGGFA#30	Availability Add to request
R5F100MGGFB#30	Availability Add to request
R5F100MHAFA#30	Availability Add to request
R5F100MHAFB#30	Availability Add to request
R5F100MHGFA#30	Availability Add to request
R5F100MHGFB#30	Availability Add to request
R5F100MJAFA#30	Availability Add to request
R5F100MJAFB#30	Availability Add to request
R5F100MJGFA#30	Availability Add to request
R5F100MJGFB#30	Availability Add to request
R5F100MKAFA#30	Availability Add to request
R5F100MKAFB#30	Availability Add to request
R5F100MKDFA#30	Availability Add to request
R5F100MKDFB#30	Availability Add to request
R5F100MLAFA#30	Availability Add to request
R5F100MLAFB#30	Availability Add to request
R5F100MLDFA#30	Availability Add to request
R5F100MLDFB#30	Availability Add to request
R5F100PFAFA#30	Availability Add to request
R5F100PFAFB#30	Availability Add to request
R5F100PFGFA#30	Availability Add to request
R5F100PFGFB#30	Availability Add to request
R5F100PGAFA#30	Availability Add to request
R5F100PGAFB#30	Availability Add to request
R5F100PGGFA#30	Availability Add to request
R5F100PGGFB#30	Availability Add to request
R5F100PHAFA#30	Availability Add to request
R5F100PHAFB#30	Availability Add to request
R5F100PHGFA#30	Availability Add to request
R5F100PHGFB#30	Availability Add to request
R5F100PJAFA#30	Availability Add to request
R5F100PJAFB#30	Availability Add to request
R5F100PJGFA#30	Availability Add to request
R5F100PJGFB#30	Availability Add to request
R5F100PKAFA#30	Availability Add to request
R5F100PKAFB#30	Availability Add to request
R5F100PKDFA#30	Availability Add to request
R5F100PKDFB#30	Availability Add to request
R5F100PLAFA#30	Availability Add to request
R5F100PLAFB#30	Availability Add to request
R5F100PLDFA#30	Availability Add to request
R5F100PLDFB#30	Availability Add to request
R5F100SHAFB#30	Availability Add to request
R5F100SHDFB#30	Availability Add to request
R5F100SJAFB#30	Availability Add to request
R5F100SJDFB#30	Availability Add to request
R5F100SKAFB#30	Availability Add to request
R5F100SKDFB#30	Availability Add to request
R5F100SLAFB#30	Availability Add to request
R5F100SLDFB#30	Availability Add to request
R5F1016AASP#30	Availability Add to request
R5F1016CASP#30	Availability Add to request
R5F1016DASP#30	Availability Add to request
R5F1016EASP#30	Availability Add to request
R5F101AAASP#30	Availability Add to request
R5F101ACASP#30	Availability Add to request
R5F101ADASP#30	Availability Add to request
R5F101AEASP#30	Availability Add to request
R5F101AFASP#30	Availability Add to request
R5F101AGASP#30	Availability Add to request
R5F101BAANA#00	Availability Add to request
R5F101BAANA#20	Availability Add to request
R5F101BCANA#00	Availability Add to request
R5F101BCANA#20	Availability Add to request
R5F101BDANA#00	Availability Add to request
R5F101BDANA#20	Availability Add to request
R5F101BEANA#00	Availability Add to request
R5F101BEANA#20	Availability Add to request
R5F101FAAFP#30	Availability Add to request
R5F101FCAFP#30	Availability Add to request
R5F101FDAFP#30	Availability Add to request
R5F101FEAFP#30	Availability Add to request
R5F101FFAFP#30	Availability Add to request
R5F101FGAFP#30	Availability Add to request
R5F101FHAFP#30	Availability Add to request
R5F101FJAFP#30	Availability Add to request
R5F101FKAFP#30	Availability Add to request
R5F101FKDFP#30	Availability Add to request
R5F101FLAFP#30	Availability Add to request
R5F101FLDFP#30	Availability Add to request
R5F101GAAFB#30	Availability Add to request
R5F101GCAFB#30	Availability Add to request
R5F101GDAFB#30	Availability Add to request
R5F101GEAFB#30	Availability Add to request
R5F101JEAFA#30	Availability Add to request
R5F101JFAFA#30	Availability Add to request
R5F101JGAFA#30	Availability Add to request
R5F101JHAFA#30	Availability Add to request
R5F101JJAFA#30	Availability Add to request
R5F101JKAFA#30	Availability Add to request
R5F101JKDFA#30	Availability Add to request
R5F101JLAFA#30	Availability Add to request
R5F101JLDFA#30	Availability Add to request
R5F101LCAFA#30	Availability Add to request
R5F101LCAFB#30	Availability Add to request
R5F101LDAFA#30	Availability Add to request
R5F101LDAFB#30	Availability Add to request
R5F101LEAFA#30	Availability Add to request
R5F101LEAFB#30	Availability Add to request
R5F101LFAFA#30	Availability Add to request
R5F101LFAFB#30	Availability Add to request
R5F101LGAFA#30	Availability Add to request
R5F101LGAFB#30	Availability Add to request
R5F101LHAFA#30	Availability Add to request
R5F101LHAFB#30	Availability Add to request
R5F101LJAFA#30	Availability Add to request
R5F101LJAFB#30	Availability Add to request
R5F101LKAFA#30	Availability Add to request
R5F101LKAFB#30	Availability Add to request
R5F101LKDFA#30	Availability Add to request
R5F101LKDFB#30	Availability Add to request
R5F101LLAFA#30	Availability Add to request
R5F101LLAFB#30	Availability Add to request
R5F101LLDFA#30	Availability Add to request
R5F101LLDFB#30	Availability Add to request
R5F101MFAFB#30	Availability Add to request
R5F101MGAFA#30	Availability Add to request
R5F101MGAFB#30	Availability Add to request
R5F101MHAFA#30	Availability Add to request
R5F101MHAFB#30	Availability Add to request
R5F101MJAFA#30	Availability Add to request
R5F101MJAFB#30	Availability Add to request
R5F101MKAFA#30	Availability Add to request
R5F101MKAFB#30	Availability Add to request
R5F101MKDFA#30	Availability Add to request
R5F101MKDFB#30	Availability Add to request
R5F101MLAFA#30	Availability Add to request
R5F101MLAFB#30	Availability Add to request
R5F101MLDFA#30	Availability Add to request
R5F101MLDFB#30	Availability Add to request
R5F101PFAFA#30	Availability Add to request
R5F101PFAFB#30	Availability Add to request
R5F101PGAFA#30	Availability Add to request
R5F101PGAFB#30	Availability Add to request
R5F101PHAFA#30	Availability Add to request
R5F101PHAFB#30	Availability Add to request
R5F101PJAFA#30	Availability Add to request
R5F101PJAFB#30	Availability Add to request
R5F101PKAFA#30	Availability Add to request
R5F101PKAFB#30	Availability Add to request
R5F101PKDFA#30	Availability Add to request
R5F101PKDFB#30	Availability Add to request
R5F101PLAFA#30	Availability Add to request
R5F101PLAFB#30	Availability Add to request
R5F101PLDFA#30	Availability Add to request
R5F101PLDFB#30	Availability Add to request
R5F101SHAFB#30	Availability Add to request
R5F101SHDFB#30	Availability Add to request
R5F101SJAFB#30	Availability Add to request
R5F101SJDFB#30	Availability Add to request
R5F101SKAFB#30	Availability Add to request
R5F101SKDFB#30	Availability Add to request
R5F101SLAFB#30	Availability Add to request
R5F101SLDFB#30	Availability Add to request

Language

Region

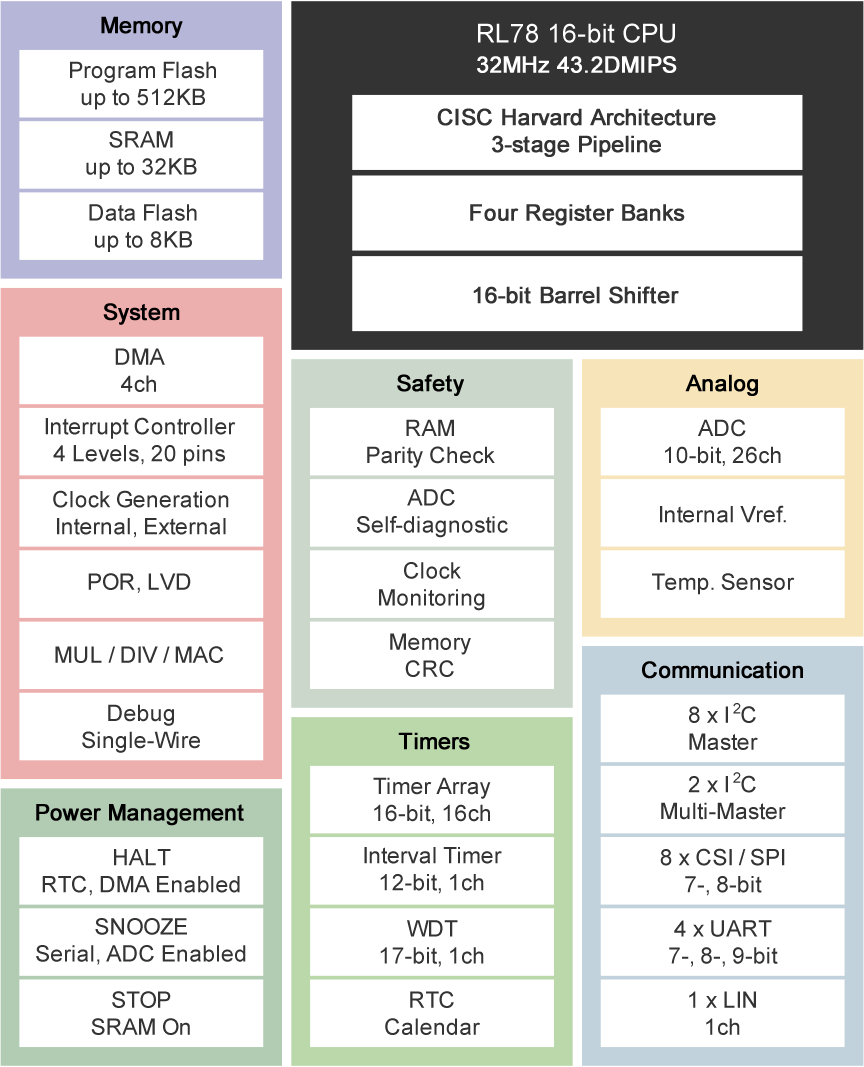

Low Power, High Function Microcontrollers for General Purpose Applications

featured_play_listOverview

Description

Features

Applications

Applications

Documentation
