Hybrid PLC and Sub-GHz Communication Evaluation Kit
Jump to Page Section:
Overview
Description
This product is an evaluation kit for developing software and evaluating systems compatible with Renesas' PLC modem IC R9A06G037 and Renesas’ Sub-GHz wireless IC RAA604S00. This kit can be configured to support many configurations, PLC only R9A06G037, Hybrid (PLC + RF) R9A06G037+ RAA604S00, RF only (RX651 + RAA604S00 or R9A06G061+ RAA604S00). This kit is therefore intended as an evaluation system for G3-PLC (inc. Hybrid), PRIME1.4 (inc. MultiPHY), and Wi-SUN. This product is a complete evaluation platform that includes the analog front end and control MCU required for AC-based power line communication and Sub-GHz wireless communication.
Features
- Supported MCU and Modem IC
- MCU group: RX651
- Part number of MCU mounted on board: R5F5651EDDFP
- PLC modem IC: R9A06G061
- Part number of PLC modem IC mounted board: R9A06G037GNP#AA0
- Sub-GHz RF modem IC: RAA604S00
- Part number of RF modem IC mounted board: RAA604S002GNP
- The kit contains the following.

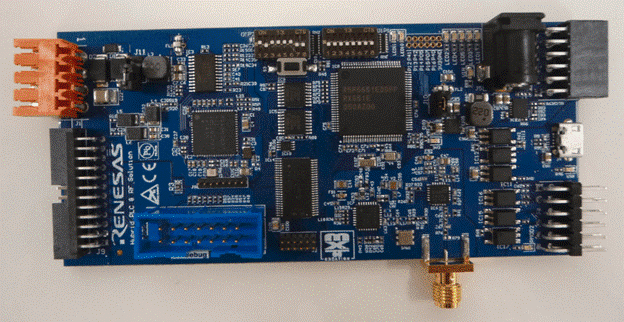

- Y-G-HYBRID-PLC-RF communication board
- Y-G-HYBRID-PLC-RF line coupler board boxed
- USB Micro-B cable
- 15V, 1.2A, 18W, international plug-in power supply (optional – dependent on order code)
- RF antenna 868MHz - 928MHz SMA male
- Y-G-HYBRID-PLC-RF communication board to Y-G-HYBRID-PLC-RF line coupler box connector cable
- 2-pin Euro plug to Figure 8 (C7) power cable Euro to IEC 60320 C7
- Supported standards/frequencies
- G3-PLC (inc. Hybrid):
- PLC: CENELEC A / CENELEC B / ARIB / FCC
- RF: IEEE 802.15.4 SUN FSK
- PRIME1.4 (inc MultiPHY):
- PLC: CENELEC A / CENELEC B / ARIB / FCC
- RF: IEEE 802.15.4 SUN FSK
- Wi-SUN:
- Wi-SUN FAN profile (IEEE 802.15.4 SUN FSK)
- G3-PLC (inc. Hybrid):
- Dimensions
- Y-G-HYBRID-PLC-RF communication board
- Board dimensions: 60 mm (width) x 120 mm (length) x 14 mm (thickness)
- Y-G-HYBRID-PLC-RF line coupler board boxed
- Box dimensions: 68 mm (width) x 123 mm (length) x 37 mm (depth)
- Y-G-HYBRID-PLC-RF communication board
