VersaClock® 7 Programmable Clock Generator Family
Jump to Page Section:
Overview
Description

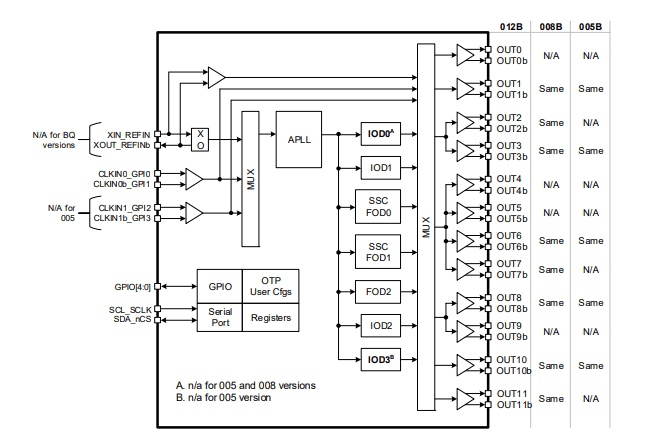

The RC21xxxA (RC21012A and RC21008A) is a member of Renesas's VersaClock® 7 programmable clock generator family. It is intended for high-performance compute, data-communications, and industrial applications, designed to be placed immediately adjacent to a PHY, switch, ASIC or FPGA that requires several reference clocks with jitter performance 150fs typical RMS.
Up to 27 configurations reusable across multiple designs may be stored in on-chip One-Time Programmable (OTP) memory or external I2C EEPROM. Redundant input available for backup and used as reference clock where needed.
Features
- 1.8V/2.5V/3.3V flexible power rails
- Typical 150fs RMS 12k-20MHz phase jitter
- 5/8/12 outputs with integrated crystal options
- 1kHz to 650MHz LVDS/LP-HCSL outputs
- 1kHz to 200MHz LVCMOS outputs
- Programmable hardware configuration select-pins
- PCIe Gen5/6 ready
- Space saving packages 4 x 4mm, 5x5 mm, 6x6 mm
- Integrated crystal option for space saving and BOM optimization
Applications
Applications
- High-performance computing
- Data center accelerators
- Switches / routers
- Synchronous Ethernet
- Industrial
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.27 MB
|
Datasheet
|
||
PDF1.15 MB
|
Guide
|
||
PDF116 KB
|
Application Note
|
||
PDF157 KB
|
Application Note
|
||
PDF208 KB
|
Application Note
|
||
PDF640 KB
|
Application Note
|
||
PDF600 KB
|
Application Note
|
||
PDF1.95 MB
|
Application Note
|
||
PDF1.16 MB
|
Application Note
|
||
PDF264 KB
|
Application Note
|
||
PDF552 KB
|
Application Note
|
||
PDF2.31 MB
|
Application Note
|
||
PDF425 KB
|
Application Note
|
||
PDF485 KB
|
Manual - Hardware
|
||
PDF1.73 MB
|
Manual - Software
|
||
XLSX809 KB
|
Other
|
||
PDF392 KB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF771 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Software & Tools
| Renesas IC Toolbox (RICBox)The Renesas IC Toolbox (RICBox) software platform enables customers to configure Renesas devices on evaluation kits when attached to the computer running the software.Downloads: | Software Package | Renesas |
Boards & Kits
Boards & Kits
Evaluation Kit for VersaClock® 7 Programmable Clock
The RC21008A Evaluation Board (EVB) is designed to support users evaluating the RC21008A using clock generation in synthesizer mode for PCIe Gen 1-6 compliance. When...
Featured Documents:
Evaluation Kit for VersaClock® 7 Programmable Clock
The RC21012A Evaluation Board (EVB) is designed to support users evaluating the RC21012A using clock generation in synthesizer mode for PCIe Gen 1-6 compliance. When...
Featured Documents:
Programming Boards for VersaClock® 7 Programmable Clock
The VersaClock 7 programmer board is made to ease the programming of RC21008, RC31008 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Programming Boards for VersaClock® 7 Programmable Clock
The VersaClock 7 programmer board is made to ease the programming of RC21012, RC31012 blank devices. With the on-board USB interface, RICBox™ GUI can be used to...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
This device is factory-configurable. Try the Custom Part Configuration Utility.
Processing table
Part Number |
Diff. Outputs |
Inputs (#) |
Input Type |
Diff. Inputs |
Pkg. Dimensions (mm) |
Pkg. Type |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | ||
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 8 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 0.9 | VFQFPN | Reel | ||
| 8 | 4 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Tray | Get Samples, | |
| 8 | 4 | LP-HCSL, LVCMOS, LVDS | 2 | 5.0 x 5.0 x 1.7 | LGA | Reel | ||
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel | ||
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Tray | Get Samples, | |
| 12 | 4 | Crystal, LP-HCSL, LVCMOS, LVDS | 2 | 6.0 x 6.0 x 0.9 | VFQFPN | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
VersaClock®7 Evaluation Board Demonstration
Learn more about how to configure the VersaClock®7 evaluation board using the supporting RICBox software. VersaClock®7 devices achieve any frequency-in, any frequency-out for high speed SerDes used in switches routers, accelerator cards, and server applications.
