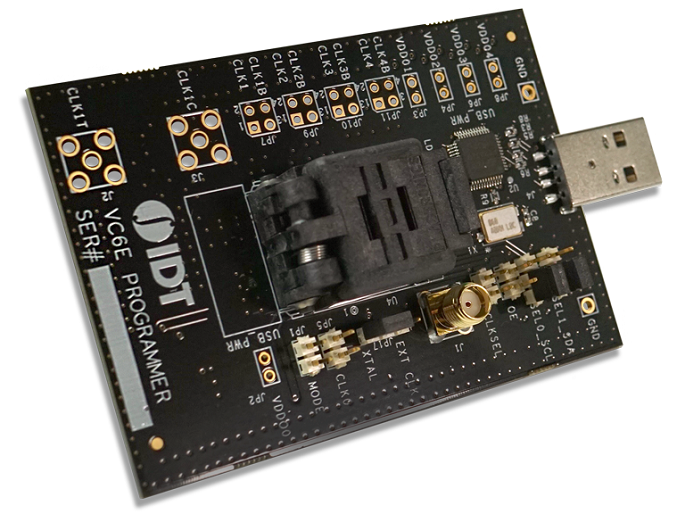

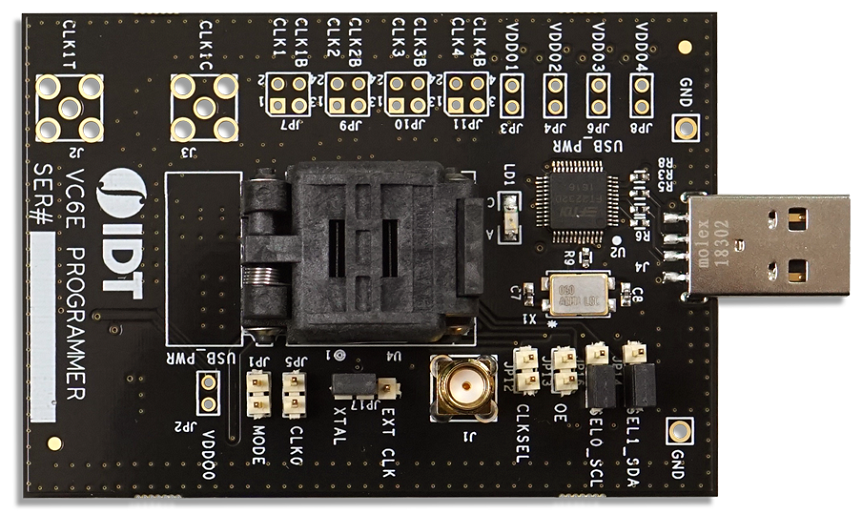

The VersaClock 6E programmer board is made to ease the programming of  5P49V6965, 5P49V6975 blank devices. With the on-board USB interface, Renesas Timing Commander™ GUI can be used to communicate with the blank device in the socket for configuration and programming. Board is compatible with older devices too including 5P49V6901, 5P49V6913, 5P49V6914, 5P49V5901, 5P49V5935, 5P49V5933.

Features

Applications

Documentation

Type Title Date
Application Note PDF 348 KB
Overview PDF 392 KB
Manual - Development Tools PDF 990 KB
Manual - Development Tools PDF 506 KB
4 items

Design & Development

Software & Tools

Software & Tools

Software title
Software type
Company
Timing Commander
Timing Commander™ is an innovative Windows™-based software platform enabling system design engineers to configure, program, and monitor sophisticated timing devices with an intuitive and flexible graphical user interface (GUI).
Code Generator Renesas
1 item

Software Downloads

Type Title Date
Software & Tools - Other Log in to Download ZIP 5.88 MB
Software & Tools - Software Log in to Download ZIP 18.02 MB
2 items
VersaClock® 6E - High-performance Programmable Clock Generator

The VersaClock® 6E programmable clock generator devices offer a combination of low power, flexibility and performance for a wide range of applications. These features make it ideal for simplifying system design by replacing multiple discrete timing components and reducing bill of materials (BOM). The VersaClock 6E supports operating voltages from 1.8 to 3.3 V, differential (LVPECL/HCSL/LVDS/LP-HCSL) and LVCMOS output types, and fractional dividers to accurately generate virtually any frequency. Products satisfy system requirements from oscillator replacement to PCIe® Gen 1/2/3 and to communications applications, while consuming very little power.

For more information about VersaClock 6E, visit https://www.idt.com/versaclock.
