1.2A High Efficiency Buck-Boost Regulators
ページセクションへ移動：
概要
説明
The ISL9110 and ISL9112 are highly-integrated Buck-Boost switching regulators that accept input voltages either above or below the regulated output voltage. Unlike other Buck-Boost regulators, these regulators automatically transition between operating modes without significant output disturbance.
Both parts are capable of delivering up to 1.2A output current, and provide excellent efficiency due to their fully synchronous 4-switch architecture. No-load quiescent current of only 35µA also optimizes efficiency under light-load conditions. Forced PWM and/or synchronization to an external clock may also be selected for noise sensitive applications.

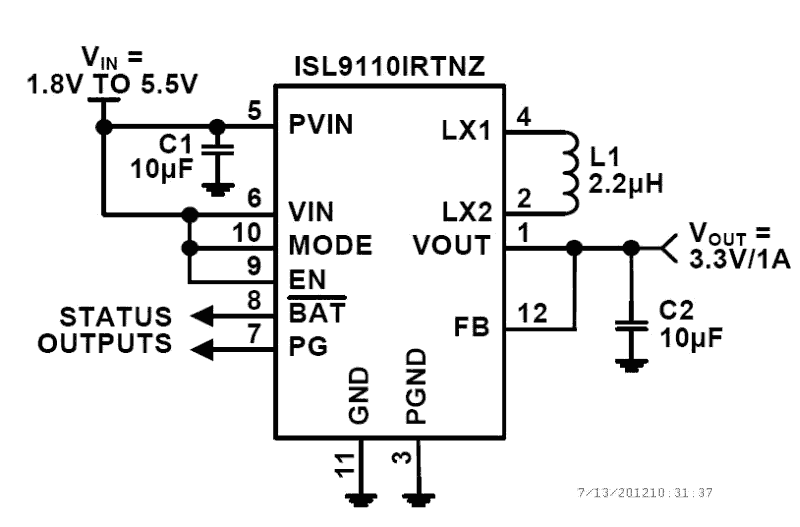

The ISL9110 is designed for standalone applications and supports 3.3V and 5V fixed output voltages or variable output voltages with an external resistor divider. Output voltages as low as 1V, or as high as 5.2V are supported using an external resistor divider.
The ISL9110 and ISL9112 require only a single inductor and very few external components. Power supply solution size is minimized by a tiny 3mmx3mm package and a 2.5MHz switching frequency, which further reduces the size of external components.
特長
- Accepts Input Voltages Above or Below Regulated Output Voltage
- Automatic and Seamless Transitions Between Buck and Boost Modes
- Input Voltage Range: 1.8V to 5.5V
- Output Current: Up to 1.2A
- High Efficiency: Up to 95%
- 35µA Quiescent Current Maximizes Light-load Efficiency
- 2.5MHz Switching Frequency Minimizes External Component Size
- Selectable Forced-PWM Mode and External Synchronization
- I2C Interface (ISL9112)
- Fully Protected for Overcurrent, Over-temperature and Undervoltage
- Small 3mmx3mm TDFN Package
製品比較
アプリケーション
アプリケーション
- Regulated 33V from a Single Li-Ion Battery
- Smart Phones and Tablet Computers
- Handheld Devices
- Point-of-Load Regulators
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート | PDF 1.10 MB 英語 | |
| カタログ | PDF 5.63 MB 英語 | |
| 製品変更通知 | PDF 169 KB | |
| 製品変更通知 | PDF 202 KB | |
| 製品変更通知 | PDF 326 KB | |
| アプリケーションノート | PDF 592 KB | |
| 製品変更通知 | PDF 151 KB | |
| 製品変更通知 | PDF 223 KB | |
| 製品変更通知 | PDF 106 KB | |
| 製品変更通知 | PDF 183 KB | |
| 製品変更通知 | PDF 173 KB | |
| 製品変更通知 | PDF 169 KB | |
| アプリケーションノート | PDF 509 KB | |
| アプリケーションノート | PDF 397 KB | |
14 items
|
||
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Software title
|
Software type
|
会社名
|
|---|---|---|
| iSim:PE Offline Simulation Tool iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
|
Simulator | ルネサス |
1 item
|
||
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Carrier Type |
MOQ |
ご購入 / サンプル |
|
|---|---|---|---|---|
| 型名 | ||||
| TDFN | Tray | 1470 | サンプルを入手, | |
| TDFN | Reel | 6000 | サンプルを入手, | |
| TDFN | Tray | 1470 | サンプルを入手, | |
| TDFN | Reel | 6000 | サンプルを入手, | |
| TDFN | Reel | 250 | サンプルを入手, | |
| TDFN | Tray | 1470 | サンプルを入手, | |
| TDFN | Reel | 6000 | サンプルを入手, | |
| TDFN | Reel | 250 | サンプルを入手, | |
| TDFN | Tube | 1000 | サンプルを入手, | |
| TDFN | Reel | 6000 | サンプルを入手, | |
| TDFN | Reel | 250 | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
Renesas Samples
注文可能な製品番号を選択
| 発注型名 | サンプル |
|---|---|
| ISL9110BIRTAZ | Availability |
| ISL9110BIRTAZ-T | Availability |
| ISL9110IRT7Z | Availability |
| ISL9110IRT7Z-T | Availability |
| ISL9110IRT7Z-T7A | Availability |
| ISL9110IRTAZ | Availability |
| ISL9110IRTAZ-T | Availability |
| ISL9110IRTAZ-T7A | Availability |
| ISL9110IRTNZ | Availability |
| ISL9110IRTNZ-T | Availability |
| ISL9110IRTNZ-T7A | Availability |
