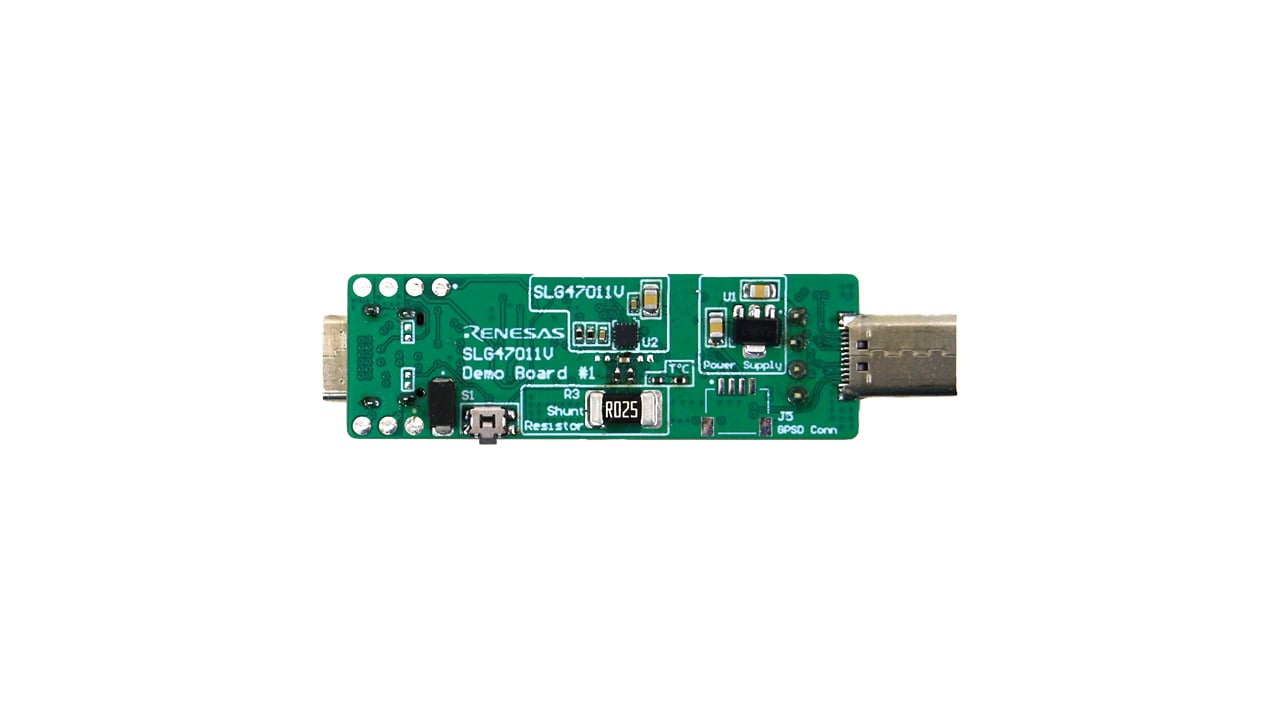

概要
説明
特長
- Power Delivery対応(最大20V、5A)
- 電圧、電流、電力、温度の測定
- 両方向の測定(プラグとレセプタクル接続)

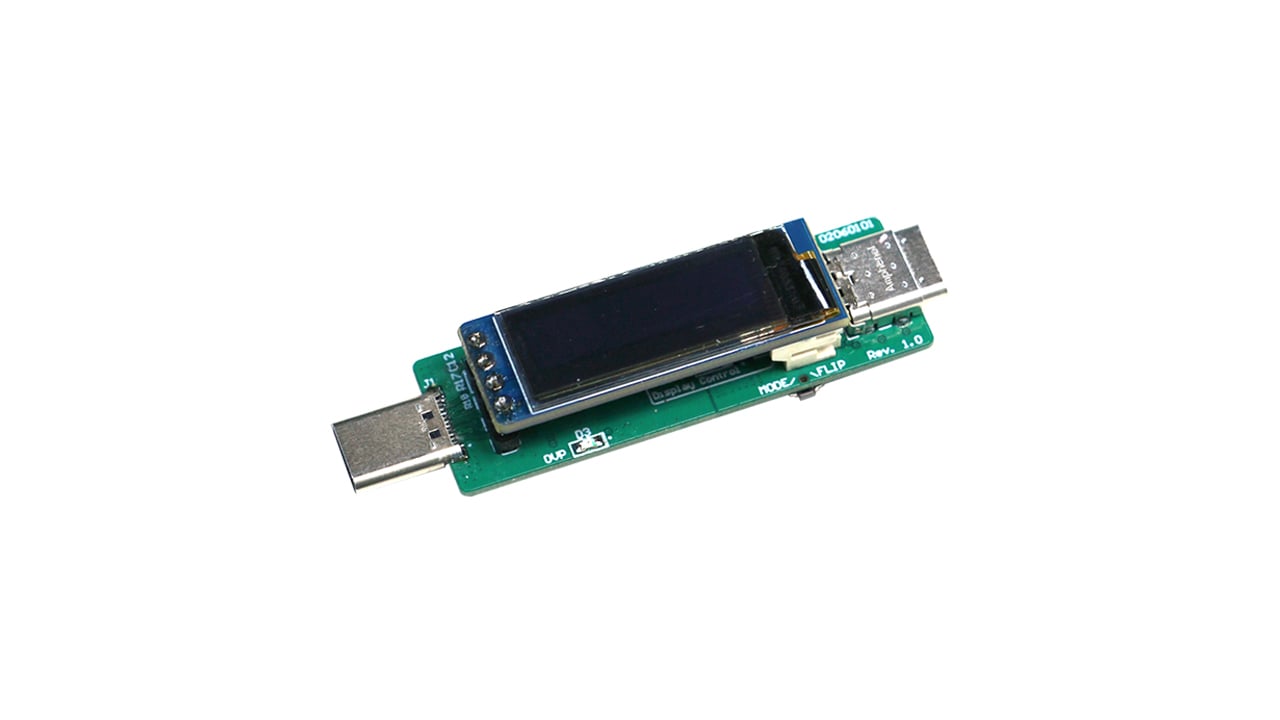

- 128x32 OLEDモノクロディスプレイ
- 表示を反転したり、画面を変更したりするためのボタン
- GreenPAKシリアルデバッガ コネクタ(SLG47011Vデザイン変更用)
- ESD保護用TVSダイオード
アプリケーション
サポート
ビデオ&トレーニング
This video showcases a Power Meter Demo Board using the AnalogPAK SLG47011 IC. It highlights how the solution measures current, voltage, power, and temperature. For full details and the design file, refer to the complete application note.
