900V Off-Line Flyback Regulator
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

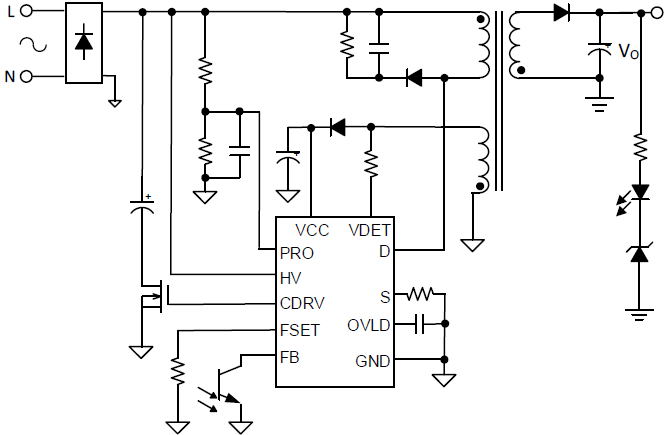

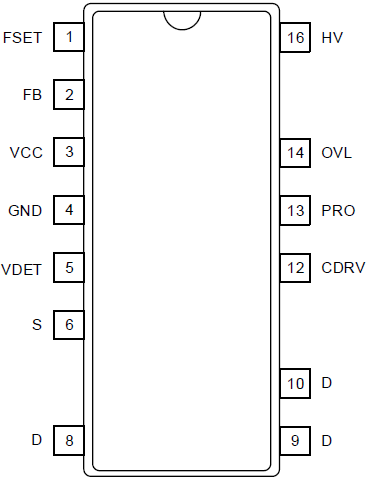

The RAA223181 is an off-line Flyback regulator with a 900V integrated MOSFET, designed for high input voltage and high reliability application of smart meter power supplies and other general isolated power supplies.
Features
- Flyback regulator with 900V 10Ω MOSFET
- Single 400V input capacitor for input up to 450VAC
- Frequency doubling for heavy load operation (up to 12W), with programmable duration < 100ms
- Valley switching to reduce switching losses
- Programmable constant frequency DCM operation (recommended range 50kHz ~100kHz)
- Burst mode operation at light load
- Protection features: Short-Circuit Protection (SCP), Overload Protection (OLP), Input Undervoltage Lockout (VinUV), Input OVP, VCC Overvoltage Protection (VccOV), VCC Undervoltage Lockout (VccUV) and Over-Temperature Protection (OTP)
Applications
Applications
- Smart Meter
- Large appliances
- Industry control
Design & Development
Boards & Kits
Boards & Kits
Dual Output 6W Universal Input Flyback Evaluation Board using RAA223181
The RTKA223181DE0010BU dual output 6W universal input Flyback evaluation board, featuring the RAA223181 900V
regulator, is designed to demonstrate a low-cost high...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
RAA2231814GSP#HA0 Active Samples Available |
SOICN | Reel | 2500 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

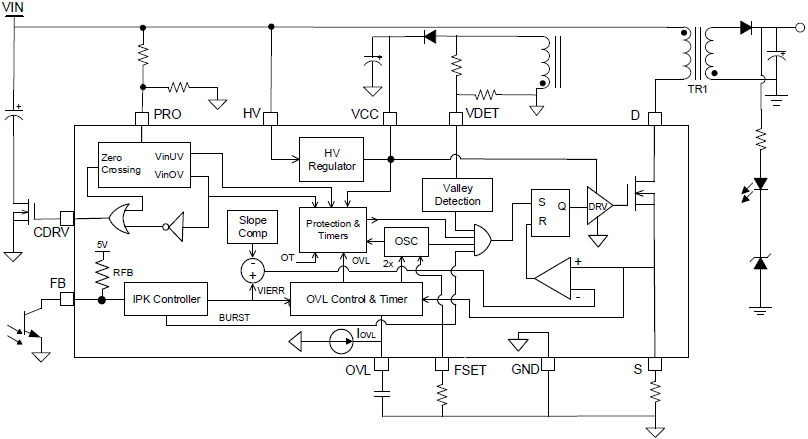

- Chip icon next to the right of the document icon in row: View the block diagram for this product
