Precision Digital Power Monitor
Jump to Page Section:
Overview

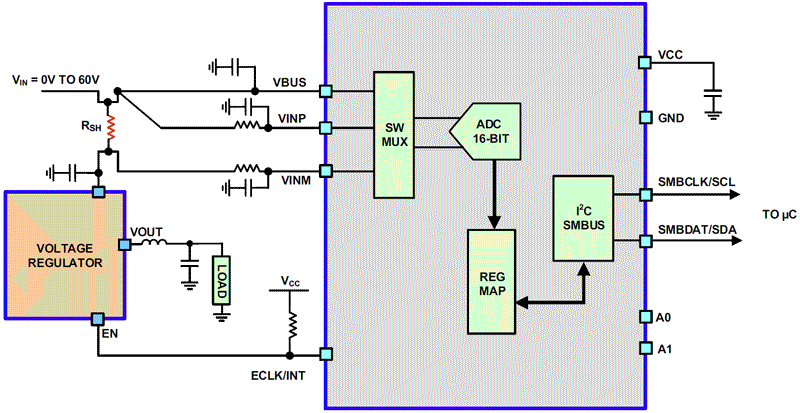

Description
The ISL28022 is a bidirectional high-side and low-side digital current sense and voltage monitor with serial interface. The device monitors current and voltage and provides the results digitally along with calculated power. The ISL28022 provides tight accuracy of less than 0. 3% for both voltage and current monitoring over the entire input range. The digital power monitor has configurable fault thresholds and measurable ADC gain ranges. The ISL28022 handles common-mode input voltage ranging from 0V to 60V. The wide range permits the device to handle telecom, automotive and industrial applications with minimal external circuitry. Both high- and low-side ground sensing applications are easily handled with the flexible architecture. The ISL28022 consumes an average current of just 700μA and is available in a 10 Ld MSOP package. The ISL28022 is also offered in a space saving 16 Ld QFN package. The part operates across the extended temperature range from -40°C to +125°C
Features
- Bus voltage sense range: 0V to 60V
- 16-bit ΣΔADC monitors current and voltage
- Voltage measuring error: <0.3%
- Current measuring error: <0.3%
- Handles negative system voltage
- Overvoltage/undervoltage and current fault monitoring
- I2C/SMBus interface
- Wide VCC range: 3V to 5.5V
- ESD (HBM): 8kV
- Supports high speed I2C: 3.4MHz
Comparison
| ISL28022 | ISL28023 | ISL28025 | |
| VS (Min) (V) | 3 V | 3.0 V | 3.0 V |
| VS (Max) (V) | 5.5 V | 5.5 V | 5.5 V |
| PSRR (db) | 105 | 127 | 127 |
| CMRR (dB) | 130 | 136 | 134 |
| Common Mode Input Range | 0 - 60 | 0 - 12 | 0 - 12 |
| Gain Error/Measurement Error (Max) | 0.3 | 0.25 | 0.25 |
| IS (per amp) (mA) | 0.7 | 1.24 | 1 |
| Offset Voltage (Max) (mV) | 0.075 | 0.05 | 0.05 |
| View Product | View Product |
Applications
Applications
- Routers and servers
- DC/DC, AC/DC converters
- Battery management/charging
- Automotive power
- Power distribution
- Medical and test equipment
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.81 MB
|
Datasheet
|
||
PDF564 KB
|
Application Note
|
||
PDF1.32 MB
|
Application Note
|
||
PDF357 KB
|
Application Note
|
||
Brochure
|
|||
PDF1.55 MB
|
Guide
|
||
PDF651 KB
|
Manual - Development Tools
|
||
PDF519 KB
|
Other
|
||
PDF208 KB
|
Price Increase Notice
|
||
PDF202 KB
|
Product Change Notice
|
||
PDF326 KB
|
Product Change Notice
|
||
PDF325 KB
|
Training
|
||
PDF258 KB
|
Training
|
||
White Paper
|
Design & Development
Software & Tools
Software & Tools
| iSim:PE Offline Simulation TooliSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.Downloads: | Simulator | Renesas |
Boards & Kits
Boards & Kits
Digital Power Monitor 8 Site Evaluation Board
The Digital Power Monitor (DPM) 8 site evaluation board demonstrates the functionality and performance of the ISL28022. By design, the ISL28022 is considered a digital...
Featured Documents:
Bidirectional High-side and Low-side Digital Power Monitor Eval Kit
The ISL28022EVKIT1Z digital power monitor evaluation kit demonstrates the functionality of the ISL28022 bidirectional high-side and low-side digital current sense and...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| QFN | Tube | 2000 | Get Samples, | |
ISL28022FRZ-T Active Samples Available |
QFN | Reel | 6000 | Get Samples, |
| MSOP | Tube | 1960 | ||
ISL28022FUZ-T Active Samples Available |
MSOP | Reel | 2500 | Get Samples, |
ISL28022FUZ-T7A Active Samples Available |
MSOP | Reel | 250 | Get Samples, |
