[Upgrade to Revision] Solution Toolkit QE for Lighting & Power V1.1.0: Development Assistance Tool for Lighting System
(PDF | English, 日本語)
・Support power control function
QE for Lighting is a development assistance tool for lighting systems.
This product is available free of charge.
Features
- DALI-2 Control Gear support, and GUI configuration of lighting control (DALI) parameters
- Automatic generation of software for lighting control (DALI)
- Guidance display to help develop lighting systems
- Learn More
Release Information
| Product Name | Latest Ver. | Released | Taget Device (Note1) | Details | Download | Operating Environment |
|---|---|---|---|---|---|---|
| QE for Lighting & Power | V1.1.0 | Jan 20, 2025 | RL78 Family | See Release Note | Download | Operating Environment |
Notes
- For detailed support devices, refer to Target Devices
Target Devices
Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Tool News - Release | PDF 356 KB 日本語 | |
| Release Note | PDF 1.08 MB 日本語 | |
| Flyer | PDF 893 KB 日本語 , 简体中文 | |
| Tool News - Release | PDF 270 KB 日本語 | |
| Release Note | PDF 299 KB 日本語 | |
5 items
|
||
Design & Development
Related Boards & Kits
Evaluation
RTK7RLG240P00000BJ
Active
RL78/G24 DC/DC LED Control Evaluation Board
The RL78/G24 DC/DC LED Control Evaluation Board allows evaluation of DC/DC converter control and various communication standards, using the RL78/G24, which has the highest processing performance among the RL78 family MCUs and enhanced analog features for power control.
The board supports...
Recommended Documents:
Explore
Videos & Training
Getting Started with QE for Lighting & Power
This video demonstrates the basic functions of a smart lighting system and how the QE for Lighting & Power tool contributes to its development.
Chapter's Title
00:00 Opening
00:25 Introduce smart lighting system
01:24 Background of QE for Lighting & Power tool
01:57 4 operation steps of QE for Lighting & Power tool
02:27 Create a new solution
02:46 Configure with graphical user interface
03:03 Simulate and Evaluate power control parameters
03:34 Generate lighting system solution
03:53 QE for Lighting & Power tool contributions
Related Resources
Video List
News & Blog Posts
Blog Post
Dec 18, 2023
|
Additional Details
Features
Quickly develop software for use with DALI control gear
QE for Lighting is easy to use. Just follow the workflow to create a sample project, make DALI settings, and generate source code, all through a simple GUI. After having compiled the source code, write your program to the evaluation board.
Use the simple GUI to configure parameters for DALI-based lighting control
You can select the individual parameters and enter their values.
If a value is incorrect, QE for Lighting will show an error message.

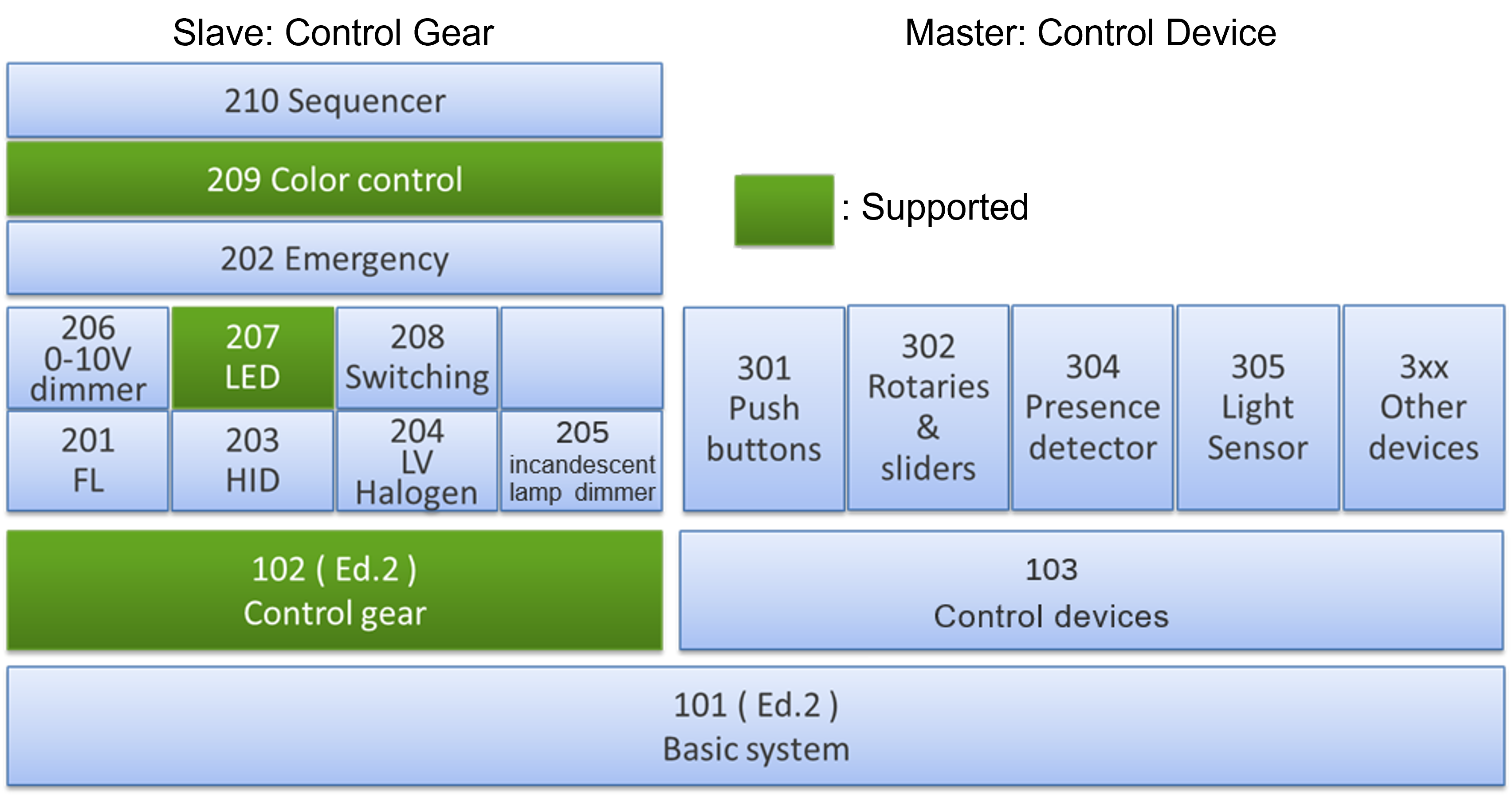

QE for Lighting supports the following items.
・DALI control gear libraries (compliant with IEC 62386-102)
・Particular requirements of IEC 62386-207 edition 1.0 (LED modules) for LED lighting
・Particular requirements of IEC 62386-209 edition 1.0 (color control) for production lighting
・Multiple types of LED dimming control (by the CPU or FAA)
・Combining different protocols for generating various sample applications
IEC 62386-102 + IEC 62386-207
IEC 62386-102 + IEC 62386-207 + IEC 62386-209
Simply click on GUI buttons for generating source code and writing to the evaluation board
・Click on GUI buttons to generate source code and compile it.
QE for Lighting supports the following compilers:
Renesas CC-RL
IAR
・Click on a GUI button to make the Renesas Flash Programmer write the program to the evaluation board.
Connect your evaluation board to the PC according to the instructions provided by QE for Lighting. You will immediately be able to run your program on the evaluation board.
