Features
- Input voltage range of 1.7V to 5.5V (main supply)
- Internally configurable RESET IN2 reset input for voltage control up to 625mV (secondary supply)
- RESET1 wait time (fixed/programmable)
- RESET2 wait time (fixed/programmable)
- Outputs with active low level of open drain or push-pull/open drain
- Tiny footprint
- Pb-free/RoHS-compliant
- Halogen-free
- STQFN-12 package

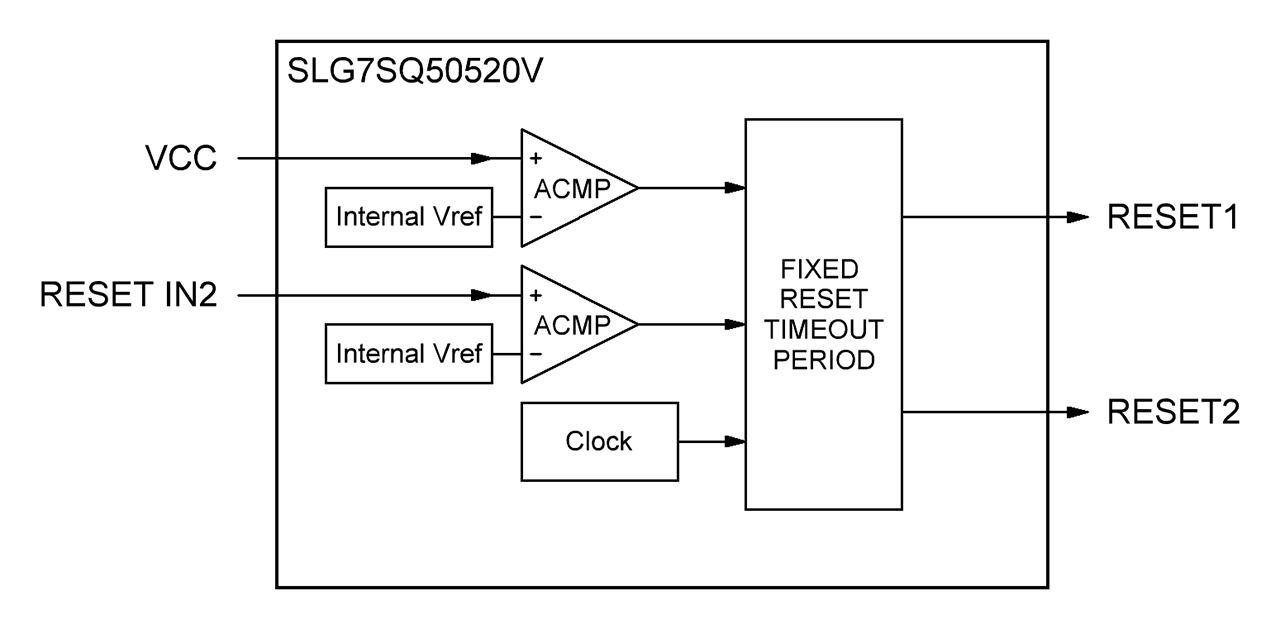

SLG7SQ50520V Block Diagram
Description
The SLG7SQ50520V is a tiny dual-channel voltage supervisor designed to reliably monitor primary and secondary power rails. It monitors supply voltages from 1.7V to 5.5V and supports an additional configurable low-voltage monitoring input down to 625mV. With dual reset outputs, programmable or fixed reset delays, and flexible output configurations, the device provides robust power-failure detection and system reset control while minimizing board space requirements.
For custom configurations, visit GreenPAK™ Programmable Mixed-Signal Products.
Parameters
| Attributes | Value |
|---|---|
| Monitored Inputs | 2 |
| Bias Voltage Range (V) | 1.71 - 5.5 |
| Sequenced Voltages | 1.71 - 5.5 |
| Enable | Active High |
| Initial Startup Requirements | x1 UVLO, x1 RESET_IN2 |
| Power Down Sequencing | No |
| Logic Level (s) | CMOS |
| Preset Or Adjustable Sequence | Without a regulated sequence |
| Sequenced Output Control | Push Pull |
| Advanced Features | Configurable Hardware Device |
Package Options
| Pkg. Type | Lead Count (#) |
|---|---|
| STQFN | 12 |
Product Comparison
| SLG7SQ50520 | SLG7SQ50521 | SLG7SQ50533 | SLG7SQ50538 | |
| Pkg. Type | STQFN | STQFN | STQFN | STQFN |
| Lead Count (#) | 12 | 14 | 14 | 20 |
| Bias Voltage Range | 1.71 - 5.5 | 2.3 - 5.5 | 2.3 - 5.5 | 1.71 - 5.5 |
| Enable | Active High | Active High | Active High | Active High |
| Preset Or Adjustable Sequence | Without a regulated sequence | Preset Order, Adjustable Delay | Without a regulated sequence | Preset Order |
| Sequenced Output Control | Push Pull | Push Pull | Push Pull | Open Drain NMOS, Push Pull |
| Advanced Features | Configurable Hardware Device | Configurable Hardware Device, I2C compatible | Configurable Hardware Device | Configurable Hardware Device |
