Name: RA2L2 - 48MHz Arm Cortex-M23 Entry-Level USB General-Purpose Microcontroller
Brand: Renesas Electronics Corporation
SKU: RA2L2 - 48MHz Arm Cortex-M23 Entry-Level USB General-Purpose Microcontroller
Availability: OutOfStock

Features

48MHz Arm Cortex-M23 core
Up to 128KB Flash and 16KB SRAM
4KB data flash to store data as in EEPROM
Scalable from 32-pin to 64-pin packages
Wide operation temperature range from -40 °C to 125 °C
Wide voltage range of 1.6V to 5.5V
±1% high-accuracy high-speed on-chip oscillator
32-bit general PWM timer, low-power asynchronous general-purpose timer
16-bit general PWM timer
Real-time clock (RTC)
12-bit A/D converter
Temperature sensor
USB FS without crystal, USB Type-C interface
SCI (UART, simplified SPI, simplified I²C, smart card interface)
Low-power UART
I³C bus
CAN
SPI
SSI (Serial Sound Interface)
Random number generator
Safety functions

Find Other Products in RA Arm Cortex-M MCUs

RA2L2 48MHz Ultra-Low-Power Arm Cortex-M23 MCU

Description

The RA2L2 group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm® Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas' low-power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2L2 group supports a wide operating voltage range of 1.6V to 5.5V, and it has rich serial communication functions such as I³C, SSI, low power UART, CAN, USB Full-Speed (FS) without crystal, and USB Type-C interface. The RA2L2 provides pin and peripheral compatibility with the RA2L1 group, RA2E1 group, and RA2A1 group and is ideal for battery-operated applications and other systems requiring high performance and low-energy consumption in space-constrained applications.

Parameters

Attributes	Value
Main CPU	Arm Cortex-M23
Program Memory (KB)	64, 128
RAM (KB)	16
Carrier Type	Full Carton (Tray), Full Tray (Tray), Tape & Reel
Supply Voltage (V)	-
I/O Ports	24, 38, 54
DRAM I/F	No
Temp. Range (°C)	Ta = -40 to +105, Ta = -40 to +125
Operating Freq (Max) (MHz)	48
Ethernet speed	No
EtherCat (ch) (#)	0
USB FS (host ch/device ch)	( 0 / 1 )
USB HS (host ch/device ch)	( 0 / 0 )
USB SS (host ch/device ch)	( 0 / 0 )
SCI or UART (ch)	4
SPI (ch)	1
I2C (#)	0
CAN (ch)	1
CAN-FD (ch)	0
Wireless	No
SDHI (ch)	0
High Resolution Output Timer	No
PWM Output (pin#)	9, 14
32-Bit Timer (ch)	1
16-Bit Timer (ch) (#)	6
Standby operable timer	Yes
Asynchronous General Purpose Timer / Interval Timer (ch)	2
16-Bit A/D Converter (ch)	0
14-Bit A/D Converter (ch)	0
12-Bit A/D Converter (ch)	10, 13, 17
24-Bit Sigma-Delta A/D Converter (ch)	0
12-Bit D/A Converter (ch)	0
8-Bit D/A Converter (ch)	0
Capacitive Touch Sensing Unit (ch)	0
Image Codec	No
Segment LCD Controller	No
Security & Encryption	128-bit Unique ID, TRNG

Package Options

Pkg. Type	Pkg. Dimensions (mm)	Lead Count (#)	Pitch (mm)
LQFP	7 x 7 x 1.7	32	0.8
LQFP	7 x 7 x 1.7	48	0.5
LQFP	10 x 10 x 1.7	64	0.5
QFN	5 x 5 x 0.8	32	0.5
QFN	7 x 7 x 0.8	48	0.5

Application Block Diagrams

	USB Data Logger Portable USB-C data logger for high-speed, low-power, and accurate metric recording anywhere.
	Electronic Toll with GNSS ETC systems automate toll payments to reduce traffic and eliminate manual toll booth delays.
	Gaming Keyboard A power-efficient, highly integrated, and compact keyboard system with customizable RGB lighting and stable, low-latency wireless performance.
	Gaming Mouse A power-efficient, highly integrated, and compact mouse system with customizable RGB lighting and stable, low-latency wireless performance.
	Dual-Needle Gauge Dual-needle gauge displays two real-time values for fast, intuitive analog monitoring.
	Current Loop Communication with AnalogPAK AnalogPAK™ enables a 4-20mA current loop with HART modem and FSK modulation support.
	Universal USB Converter for USB-UART, USB-I2C, USB-I3C Connect UART, SPI, I2C, and I3C devices to a PC via a universal USB converter with Pmod support.

Additional Applications

Audio streaming device
PC peripherals
POS system peripherals
General-purpose systems
IoT devices
Industrial automation and sensors
Consumer applications
Home appliances
Building automation
Medical and healthcare devices
Wearable device

Applied Filters:

Loading

Filters

Loading

Filters

Loading

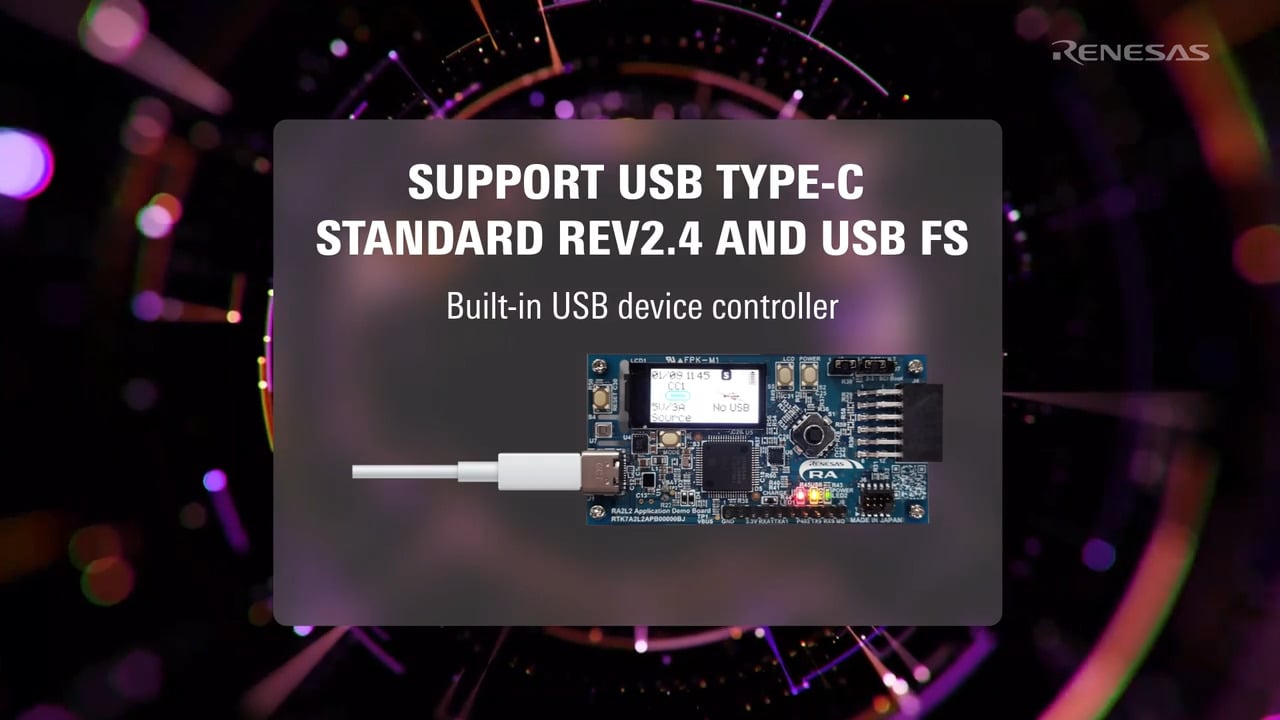

This video introduces the RA2L2 MCU, supporting USB Type-C^® standard Rev2.4 and USB FS for advanced connectivity. Learn how it enhances power efficiency, simplifies designs, and accelerates time to market for USB-powered applications.
