EK-RZ/A3M

Active

Evaluation Kit for RZ/A3M MPU

Order Now
EK-RZ/A3M v1 Quick Start GuideEK-RZ/A3M v1 User's ManualEK-RZ/A3M v1 Design Package

Overview

The EK-RZ/A3M evaluation kit enables users to easily evaluate the features of the RZ/A3M MPU. This kit includes an EK-RZ/A3M board, 5-inch 720x1280 pixel LCD MIPI graphics expansion board, and USB cables, allowing the seamless evaluation of high-definition human machine interface (HMI), camera input through USB, and more features. Equipped with an on-board J-Link debugger, users can conveniently start debugging without additional debuggers. Additionally, it also has several expansion connectors such as SDIO, PMOD, and Arduino to connect sensors, Wi-Fi, and Bluetooth® Low Energy (LE), allowing users to add more features without expanding the board space.

EK-RZ/A3M Evaluation Board

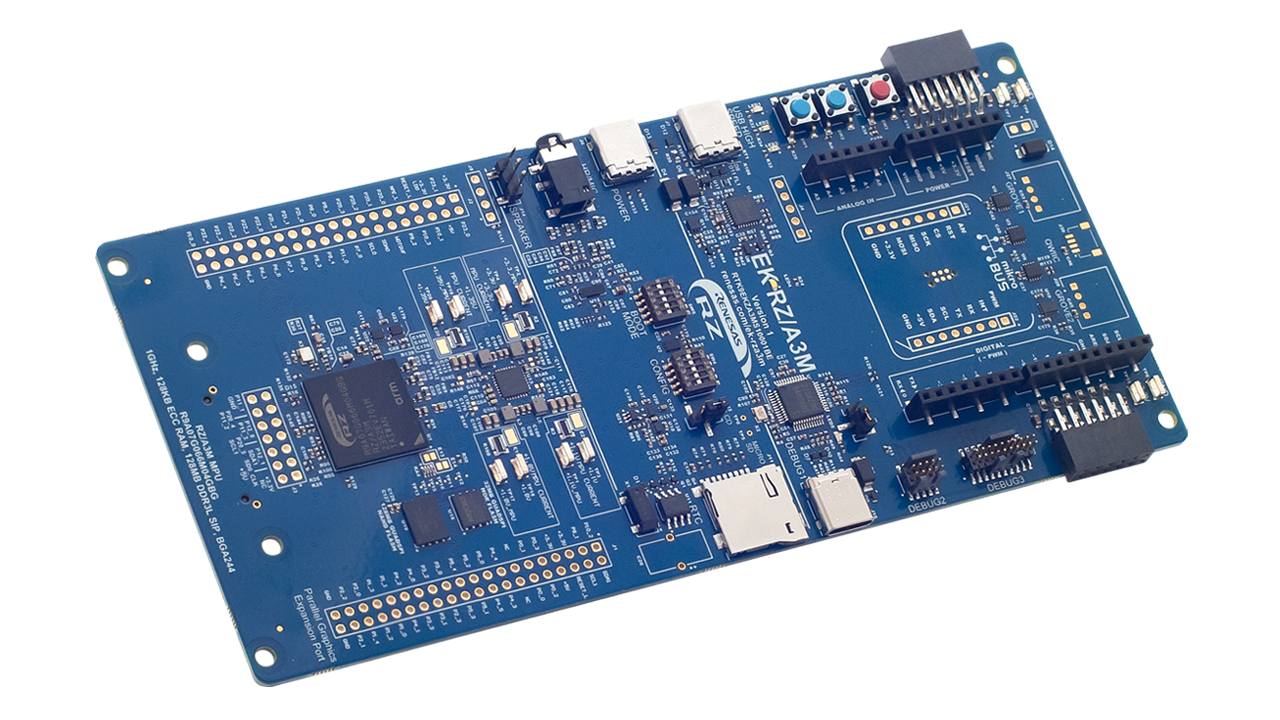

EK-RZ/A3M Evaluation Board - Top
EK-RZ/A3M Evaluation Board - Bottom

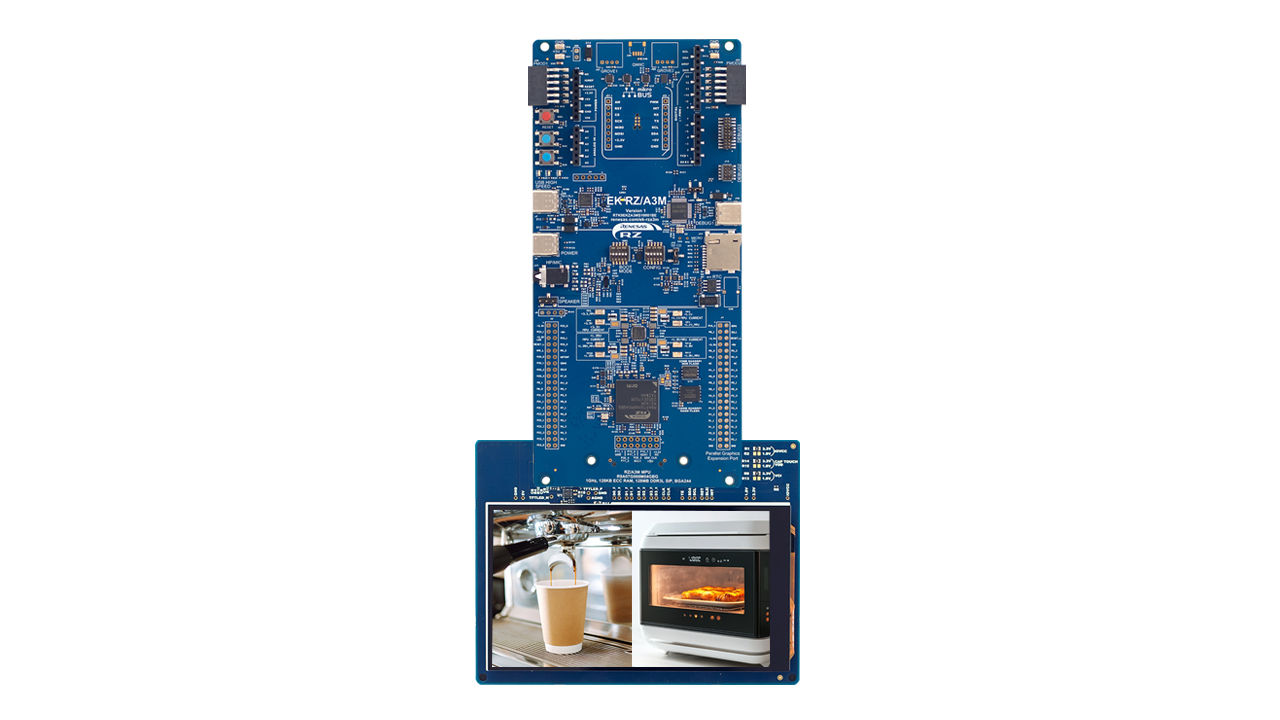

EK-RZ/A3M Evaluation Board - LCD panel attached
EK-RZ/A3M Evaluation Board

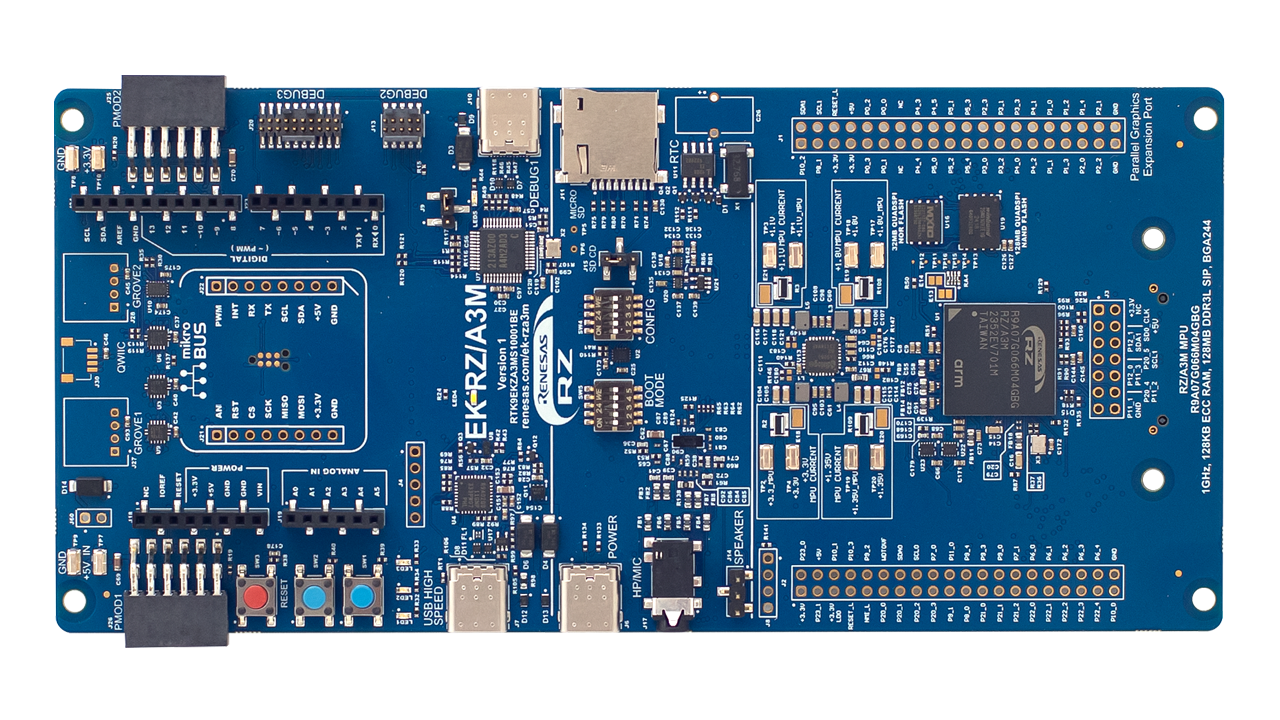

EK-RZ/A3M Evaluation Board - Top

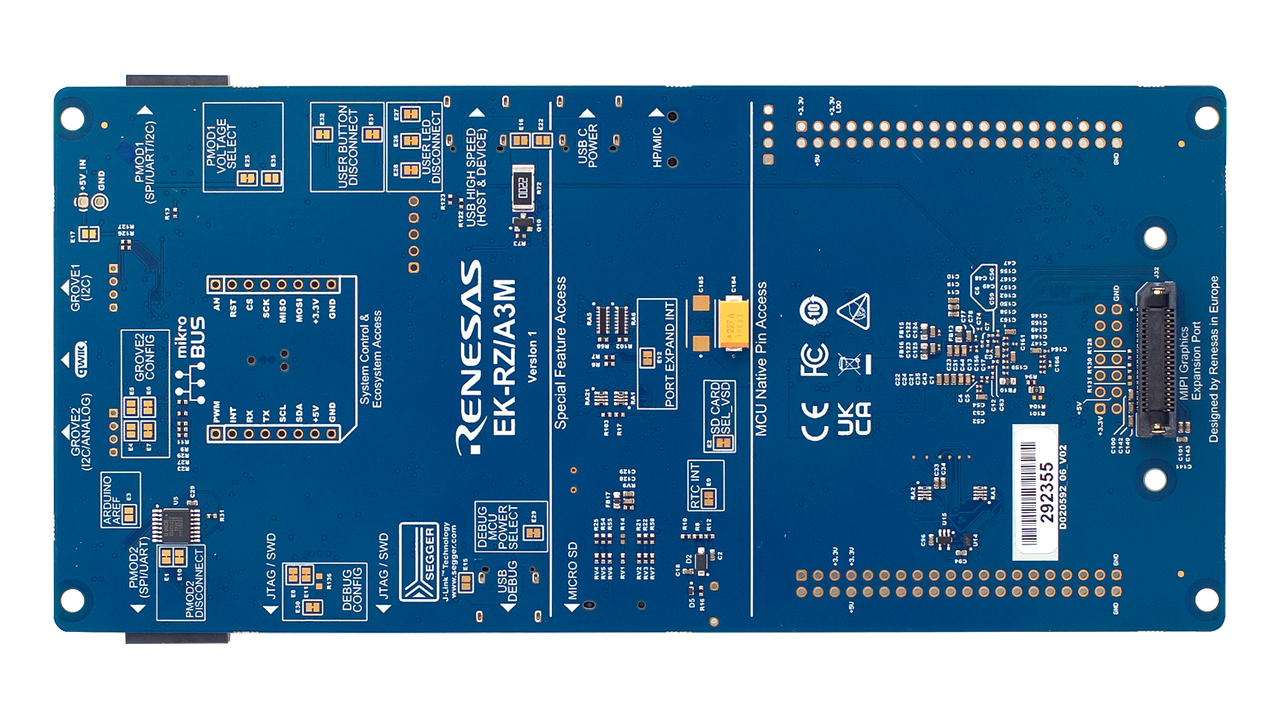

EK-RZ/A3M Evaluation Board - Bottom
EK-RZ/A3M Evaluation Board - LCD panel attached
  • Special Feature Access
    • MIPI DSI 4 lanes & parallel graphics expansion ports
    • 5-inch MIPI LCD panel (720x1280 pixels)
    • USB High-Speed Host & Device
    • 32MB External QSPI NOR Flash
    • 128MB External QSPI NAND Flash
    • External sound codec
    • External RTC
  • MPU Native Pin Access
    • R9A07G066M04GBG MPU
    • 1GHz, Arm Cortex®-A55 core w/NEON extension
    • Built-in 128MB DDR3L DRAM
    • 128KB SRAM w/ECC
    • 244 pins, BGA package
    • Native pin access
    • MPU & USB current measurement
  • Ecosystem & System Control Access
    • USB High-Speed Host & Device
    • 5V input through USB (Debug, HS, USB-PD) or external power supply
    • Debug on-board (Segger J-Link®)
    • Debug external (SWD & JTAG)
    • SCIF download (SWD)
    • 3 user LEDs & 2 user buttons
    • 2 SeeedGrove® system (I2C & analog)
    • 2 Digilent Pmod™ (I2C, SPI or UART selectable)
    • Arduino™ (Uno R3)
    • MikroElektronika™ mikroBUS
    • SparkFun® Qwiic® (I2C)
    • MPU boot configuration switch
    • Audio In/Out 4-pole
    • MicroSD card slot
  • Kit Contents
    • EK-RZ/A3M board
    • MIPI graphics expansion board
    • USB cable (USB C to USB C)
    • USB cable (USB A female to USB C)
    • USB cable (USB A male to USB C)
    • Screw and spacer for fixing the sub board
