Overview
Renesas' Health Monitor Band reference design is a compact, low-power sensing solution suitable for wearables, healthcare devices, consumer electronics, and industrial equipment. It enables heart rate detection, with signal conditioning handled by a GreenPAK™ programmable mixed-signal IC and data analysis performed by the RA4E1 microcontroller, using Murata Manufacturing's piezoelectric film sensor. The PTX30W single-chip NFC Receiver enables NFC wireless charging when paired with a TDK antenna. And, the DA14531MOD Bluetooth® Low Energy (LE) module provides smooth connectivity with smartphones.
Features
- Detects subtle heartbeat vibrations of the sensor with the GreenPAK programmable mixed-signal IC and MCU
- Achieves efficient NFC wireless charging with the PTX30W NFC Receiver
- Enables seamless smartphone connectivity with a low-power Bluetooth LE module
Products in the Design
| DA14531MOD | SmartBond TINY Bluetooth Low Energy Module |
| RA4E1 | 100MHz Arm Cortex-M33, Entry-Line with Balanced Low Power Consumption & Optimized Feature Integration |
Add-on Hardware
PTX130W/30W NFC Wireless Charging (WLC) Evaluation Kit
The PTX130W-30W-EVK wireless charging (WLC) evaluation kit combines the high-efficiency, high-power PTX130W NFC WLC IC with the PTX30W fully integrated, high-power harvesting WLC listener IC. Users are able to cut development time and effort with increased flexibility for NFC wireless charging... Read More
Application Block Diagrams

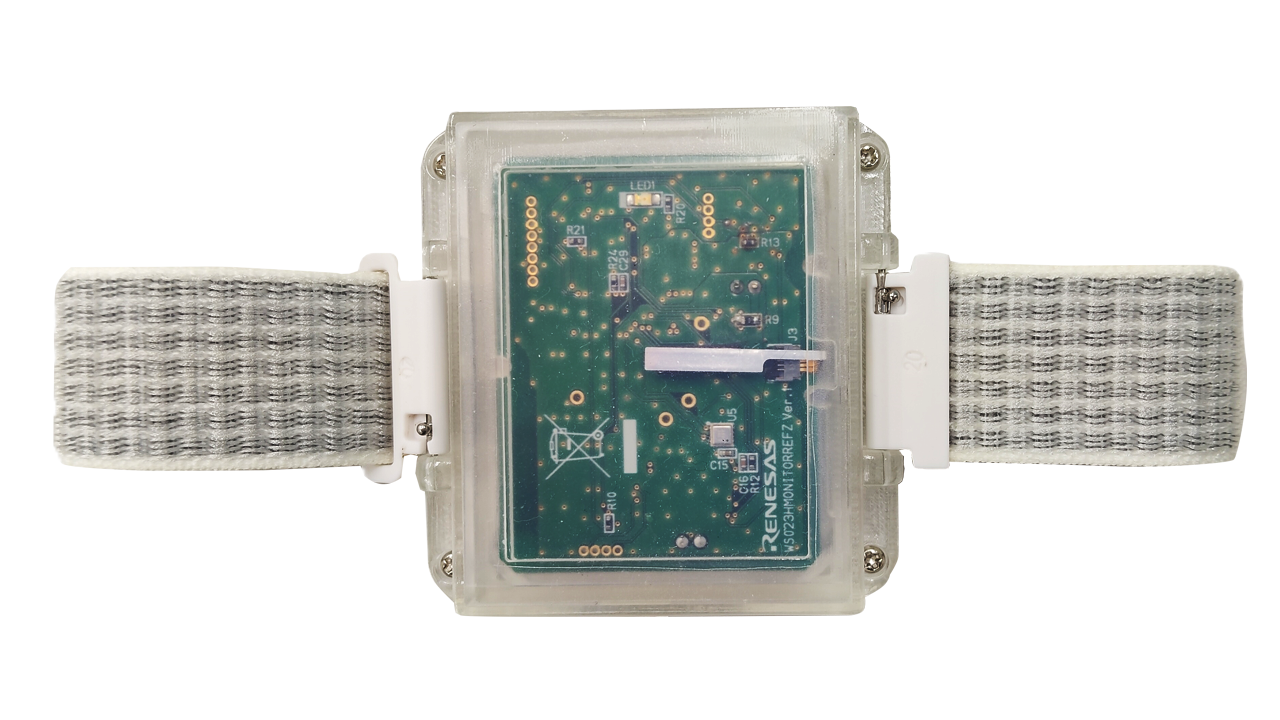

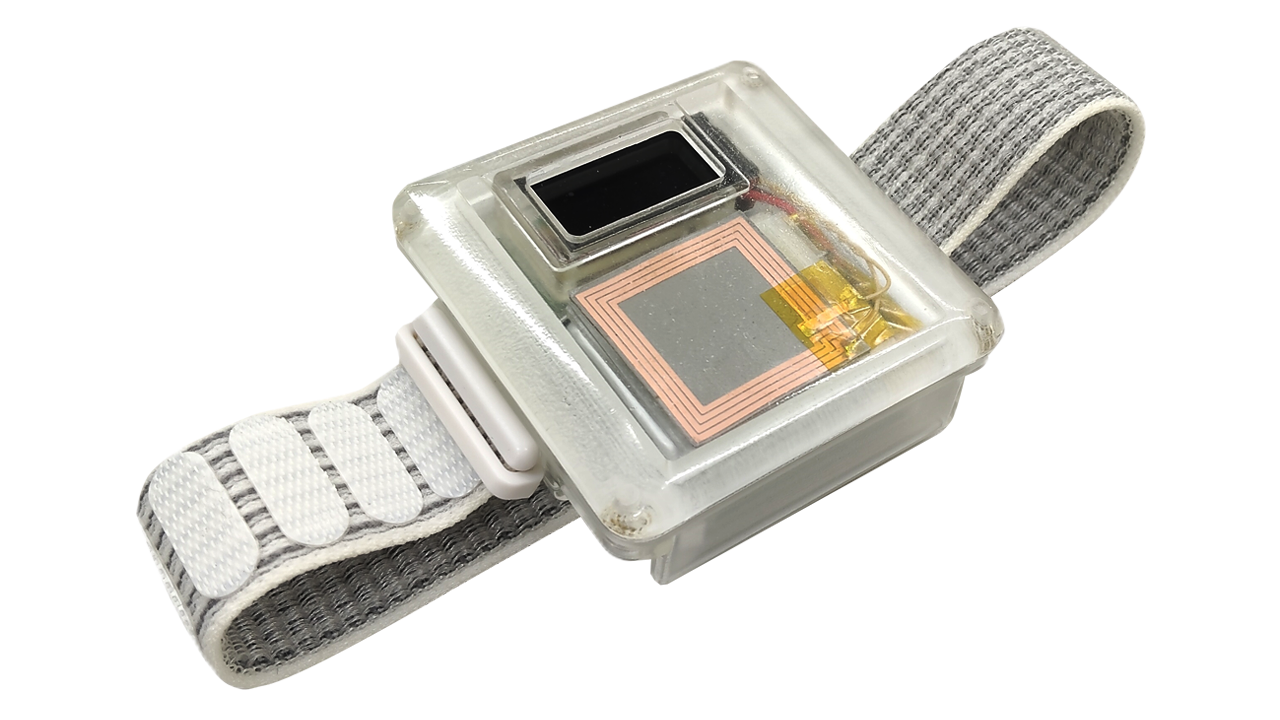

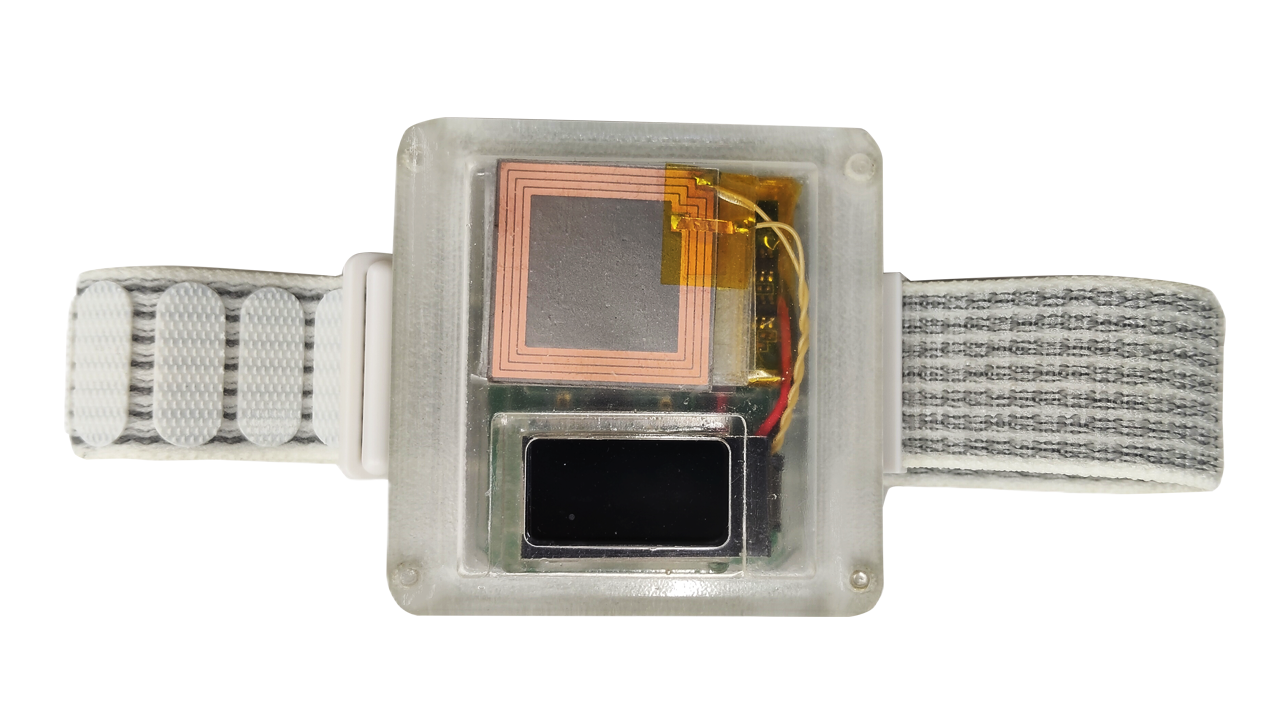

 | Health Monitor Band A wearable health band that reads the user's heart rate and respiration using a piezoelectric sensor. |
Videos & Training
The Renesas Health Monitor Band reference design delivers accurate heart‑rate sensing in a compact, low‑power wearable by combining a Murata Picoleaf piezoelectric film sensor with GreenPAK™ signal conditioning and an RA MCU. It incorporates BLE connectivity and PTX30W NFC wireless charging to simplify system integration and accelerate the development of next‑generation wearable devices.
