Overview

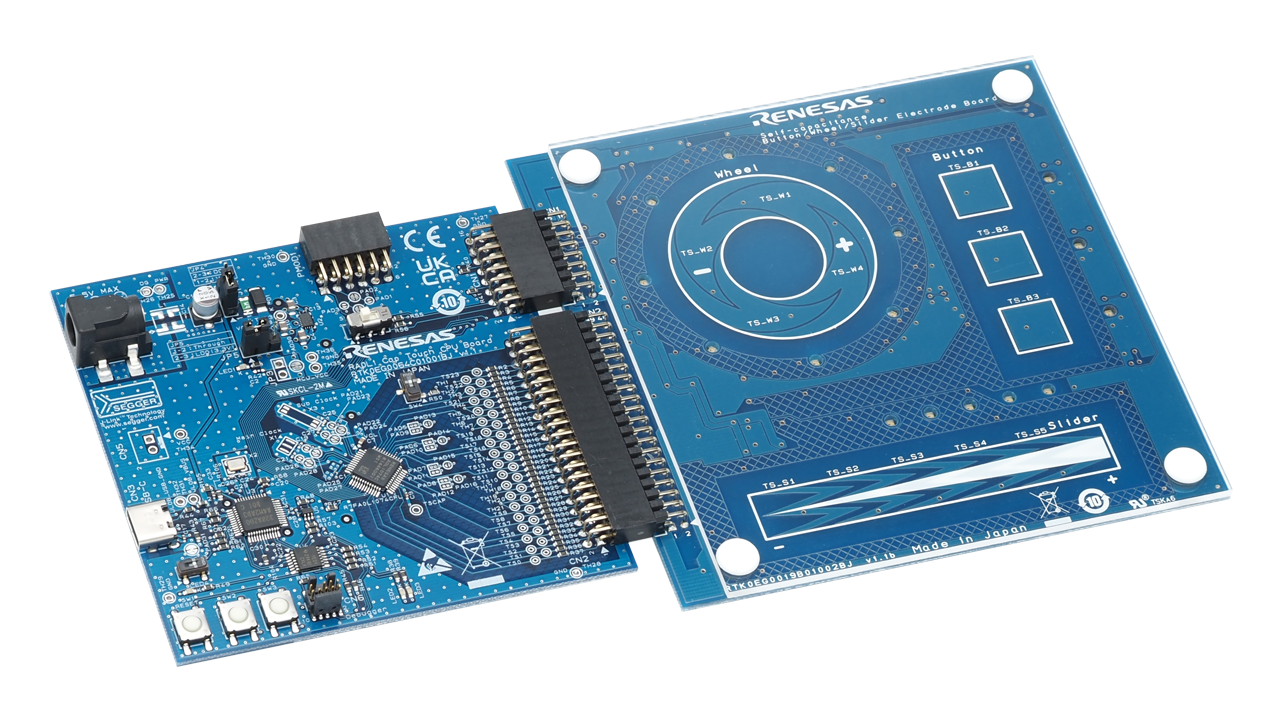

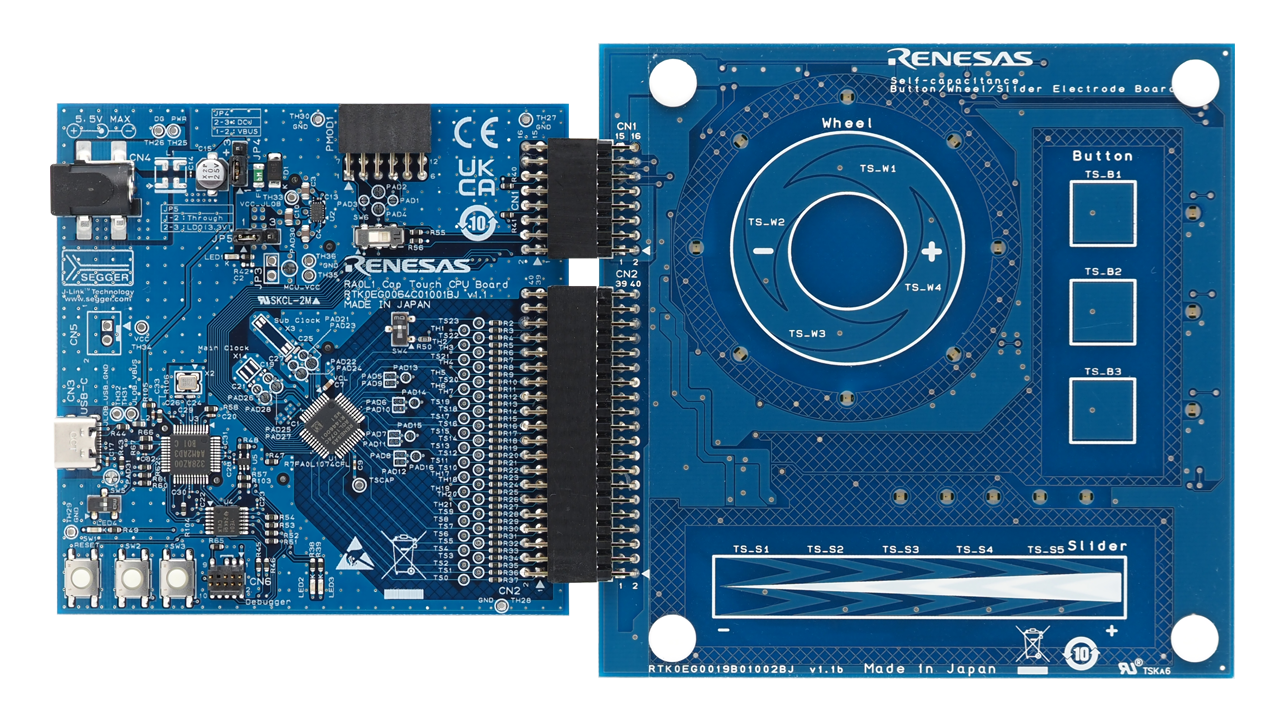

The RA0L1 capacitive touch evaluation system (RSSK-RA0L1) makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
RSSK-RA0L1 has a built-in SEGGER J-Link™ emulator circuit so you can write/debug programs without additional tools.
Features
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy to develop touch interfaces even for beginners with GUI
- Easy operation with intuitive interface
- Automatically output adjusted source code

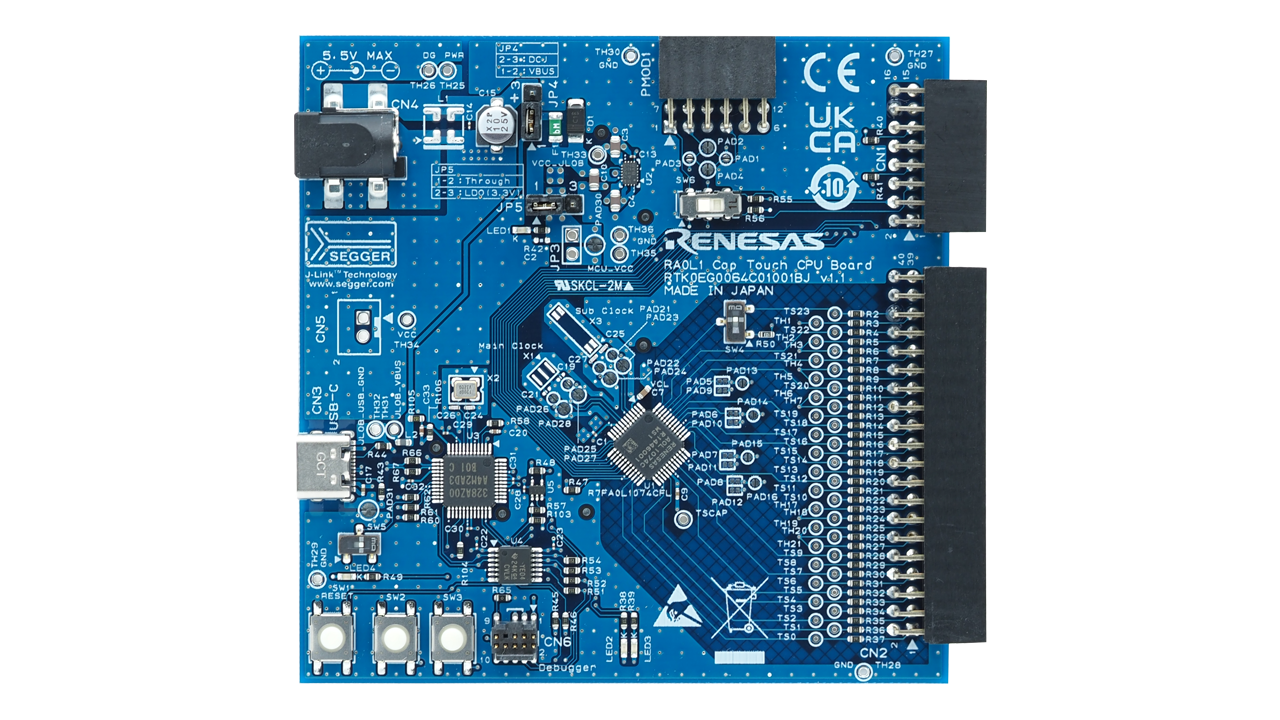

- RA0L1 MCU (R7FA0L1074CFL) mounted
- Capacitive touch sensor (CTSU) terminal 24 channels available
- No additional tools are required for program debugging/writing with the built-in SEGGER J-Link™ emulator circuit
Applications
HMI Capacitive Touch
Sample & Buy
RTK0EG0065S01001BJ
ActiveVideos & Training
Learn about the Capacitive Touch Evaluation System for RA0L1 (RSSK‑RA0L1), its key features, and how it supports ultra‑low‑power capacitive‑touch development. We will walk through the quick‑start guide document, unbox the hardware, and show how to set up the development environment and generate a project. A hands‑on demo highlights the RA0L1 MCU’s capacitive‑touch performance and demonstrates how the board helps developers begin evaluating the device quickly.
