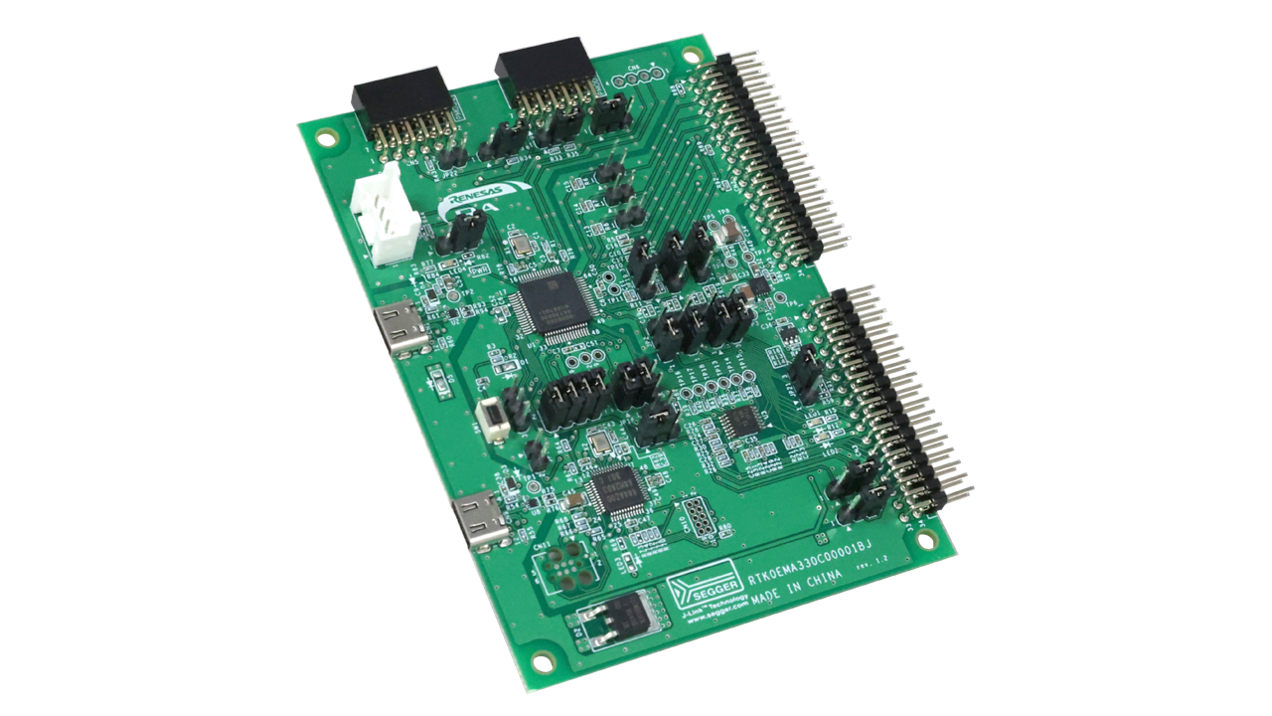

This product is a CPU board for motor control equipped with RA6T3. Motor control using RA6T3 can be easily realized by using it in combination with a supported inverter board.

By using a supported communication board, the CPU board can be electrically isolated from the PC for safe motor control evaluation and debugging.

Features

Compatible with Renesas Motor Workbench, a motor control development support tool
Equipped with on-board debugger circuit

Products in the Design

3D illustration featuring top and bottom of LFQFP ic chip package with 48 leads

RA Arm Cortex-M MCUs

RA6T3

RA6 Series 200MHz Arm Cortex-M33 Motor Control Microcontroller

Datasheet

Sample & Buy

MCB-RA6T3 CPU Board for RA6T3 MCU Group

RTK0EMA330C00000BJ

Description:

MCB-RA6T3 CPU Board for RA6T3 MCU Group

1u | $211.76Budgetary Price

Add-on Hardware

Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.

Renesas Flexible Motor Control Inverter Board – Low Voltage 48V/10A for Three-Phase BLDC/PMSM Motor

MCI-LV-1

Evaluate low-voltage three-phase BLDC and PMSM motor control using a flexible inverter board. Designed to work with compatible CPU boards for rapid motor control development.

Renesas Flexible Motor Control Communication Board

MC-COM

Enable safe and isolated serial communication between Renesas MCUs and motor control systems. Supports reliable debugging and evaluation in motor control development environments.
