60V Bidirectional 4-Switch Synchronouse Buck-Boost Controller with 9V to 60V Vin Range and 0.8V to 60V Output Demonstration Board

ISL81601DEMO2Z

Active
Order Now

The ISL81601DEMO2Z demonstration board features the ISL81601 and RL78/G14. The ISL81601 is a 60V high-voltage synchronous buck-boost controller. The RL78/G14 is a 28-pin MCU that offers digital control and measurement for charge and discharge functions. The ISL81601DEMO2Z can adjust the input voltage and reverse current for charging, and can also adjust the output voltage and output current for discharging online. The ISL28022 is also used on this board to provide high-accuracy voltage and current sensing and report to the RL78 with the IIC line. The ISL81601DEMO2Z can also report input and output voltage and current with high accuracy.

Features

  • Input 0V precharge power-up
  • Wide input range: 9V to 60V
  • Bidirectional operation
  • Output CC/CV control
  • Input CC/CV control
  • Online adjustable input and output setting and display using the GUI interface
  • Supports prebias output with soft-start
  • PGOOD indicator
  • OVP, OTP, and UVP protection

Applications

Power Adapters & Chargers

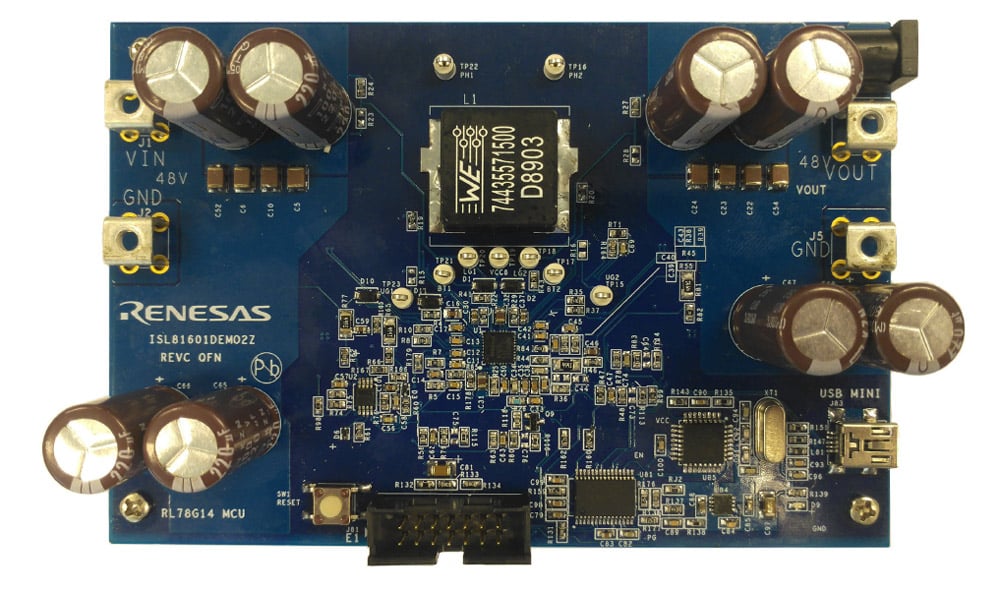

ISL81601DEMO2Z 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller Demonstration Board - Top

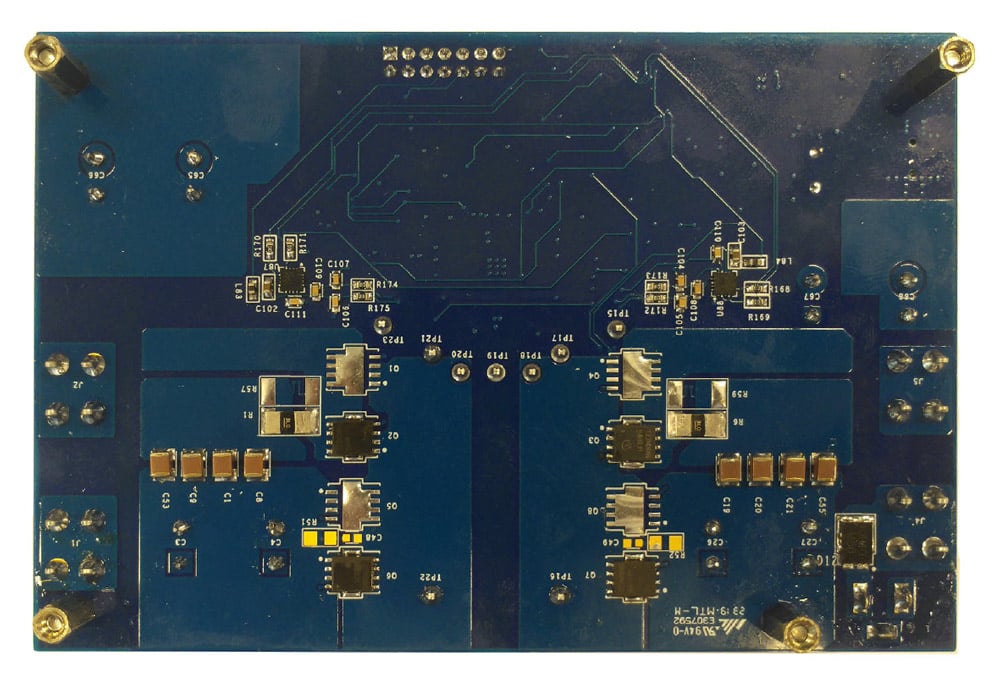

ISL81601DEMO2Z 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller Demonstration Board - Bottom
ISL81601DEMO2Z 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller Demonstration Board - Top
ISL81601DEMO2Z 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller Demonstration Board - Bottom

Products in the Design

3D illustration featuring top and bottom views of TSSOP-EP IC chip package with 38 lead count.
Buck-Boost Controllers (External FETs)
ISL81601 Active
60V Bidirectional 4-Switch Synchronous Buck-Boost Controller
Datasheet
3D illustration featuring top and bottom views of LQFP chip package with 32 lead count.
RL78 Low-Power 8 & 16-Bit MCUs
RL78/G14 Active
Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications
Datasheet

Sample & Buy

ISL81601DEMO2Z 60V Bidirectional 4-Switch Synchronous Buck-Boost Controller Demonstration Board - Top

ISL81601DEMO2Z

Active
Pb (Lead) Free:Yes
ECCN (US):EAR99
HTS (US):8473.30.1180
1u | $43.45Budgetary Price

Add-on Hardware

Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.
ISL81601DEMO1Z Parallelable 60V Synchronous Buck-Boost Controller Demonstration Board - Top

Parallelable 60V Synchronous Buck-Boost Controller with 32V to 60V Vin Range and 48V 10A Output Evaluation Board

ISL81601DEMO1Z Active
Evaluate wide‑input, high‑voltage buck‑boost conversion with support for parallel operation. Designed for flexible and scalable power architectures.
