240W USB PD 3.2 EPR Evaluation Board

EBC10293

Active
Order Now

The EBC10293 is a 240W Half‑Wave LLC USB PD 3.2 evaluation board featuring the RRW11011 HWLLC and PFC combo controller in a complete AC‑to‑USB‑C Power Delivery architecture. GaN‑based switching devices and a PD 3.2 controller enable adjustable output levels from 5V to 48V for EPR‑class USB‑C® evaluation. The board offers a compact, high‑power platform for validating PD behavior, voltage transitions, and system response under a wide range of load conditions.

Features

  • High efficiency: 96.5% at 230VAC and 95.2% at 115VAC
  • Two‑stage interleaved PFC and HWLLC resonant control for high efficiency, low input‑ripple current, improved electromagnetic interference (EMI), and reduced audible noise
  • Ultra‑low standby power: below 41mW at 230VAC
  • Meets tiny‑load efficiency requirements: input power below 0.3W at 0.15W output
  • Native 48V output support with integrated charge pump for VBUS switch control
  • Reprogrammable application parameters through the USB Type‑C connector
  • Supports USB PD 3.2 EPR

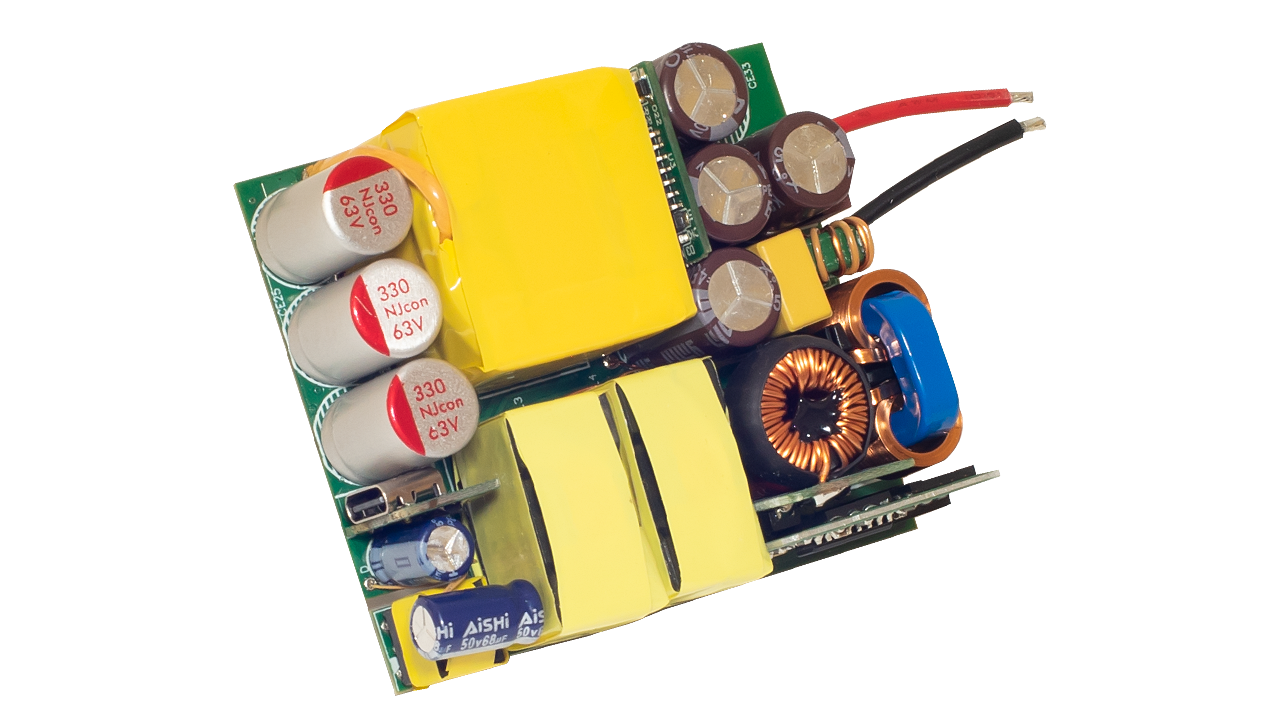

Angel image of the EBC10293 evaluation board.

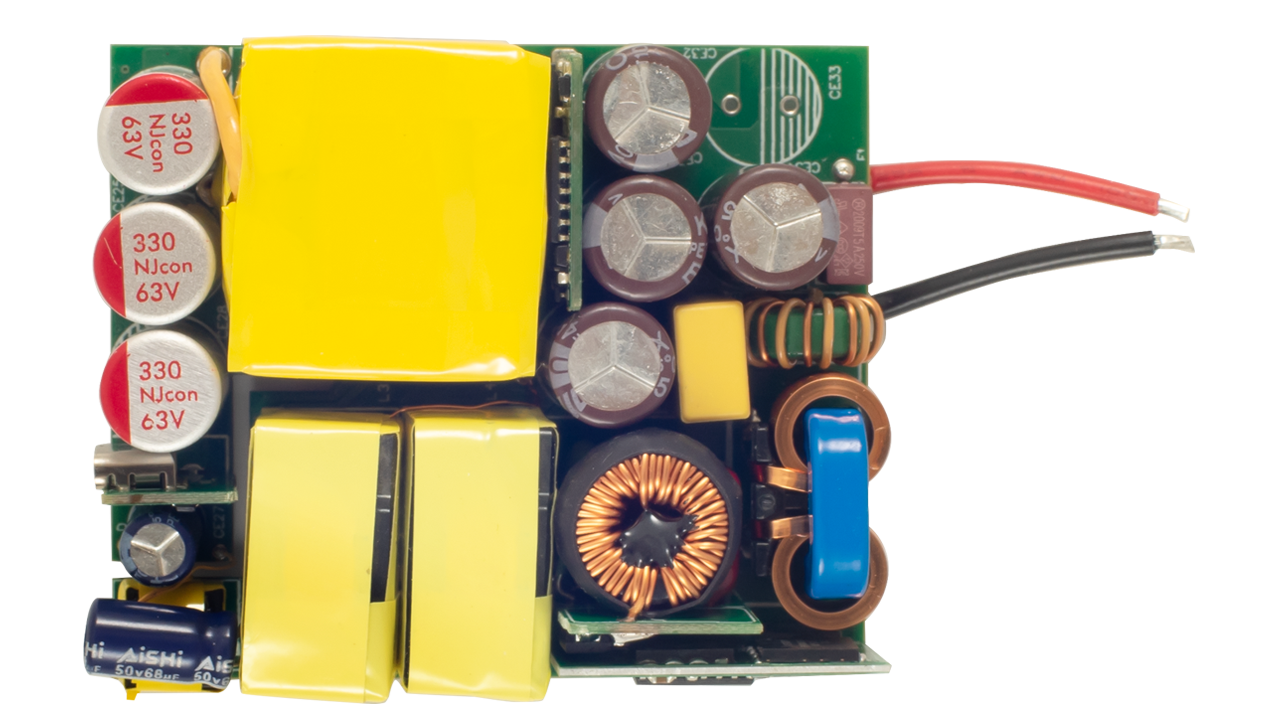

Top image of the EBC10293 evaluation board

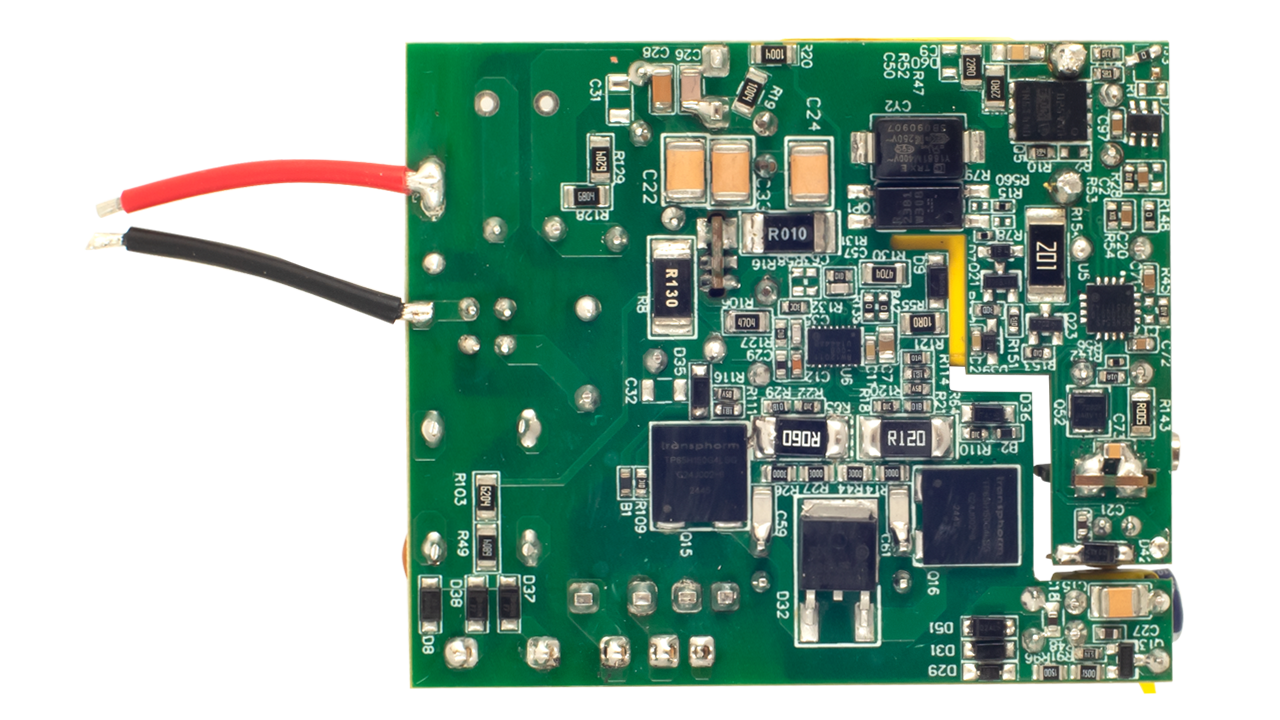

Bottom image of the EBC10293 evaluation board.
Angel image of the EBC10293 evaluation board.
Top image of the EBC10293 evaluation board
Bottom image of the EBC10293 evaluation board.

Products in the Design

Flyback & Forward Controllers
RRW11011 Active
500W AC/DC Primary-Side Digital Controller for Interleaved PFC and Half-Wave LLC
Datasheet - Short-Form
3D illustration featuring top and bottom views of PQFN chip package with 3 lead count.
High-Voltage GaN Power Discretes
TP70H150G4LSG Active
700V 150mΩ SuperGaN FET in PQFN88
Datasheet
RRW30120
USB PD 3.2 EPR Controller with 48V Output and Multi‑Port Adapter Support
RRW40120
600V Half‑Bridge Gate Driver for High‑Side and Low‑Side Switching
RRW43110
Synchronous Rectifier Controller with 48V Wide‑Output Support and High‑Power‑Density Capability

Sample & Buy

Angel image of the EBC10293 evaluation board.

EBC10293

Active
HTS (US):8473.30.1180
ECCN (US):EAR99
Pb (Lead) Free:Yes

Application Block Diagrams

The AC/DC adapter block diagram features a zero‑voltage switching controller and SuperGaN FETs, and the design is compliant with USB PD EPR, delivering 240 W output.
240W USB PD AC/DC Adapter
High-efficiency 240W AC/DC adapter with USB PD 3.2 EPR output.

Videos & Training

Explore the Half-Wave LLC (HWLLC) AC/DC converter topology and its ability to scale a compact, high-efficiency power architecture from 100W-class designs to 500W applications. A 240W USB Power Delivery charging solution serves as the demonstration platform, highlighting zero-voltage switching (ZVS) operation, reduced switching losses, interleaved power factor correction (PFC) control, and two-stage digital control. These techniques help improve efficiency and increase power density for space-constrained power supply designs.
