Compact, Low Pin Count Microcontrollers with Rich Peripheral Functions for General Purpose Applications
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The RL78/G15 is a general-purpose microcontroller with a 16MHz operating frequency. There is a wide lineup available, including the smallest 8-pin package in the RL78 Family, and support for a wide range of operating ambient temperatures from -40°C to 125°C. The built-in high-speed on-chip oscillator with high accuracy (±1.0%), the data flash, the rich serial interfaces, and the comparator make it ideal for compact applications where space comes at a premium. A full development environment for the RL78/G15 is provided, including an evaluation board (Fast Prototyping Board) enabling writing and debugging programs by simply connecting a USB cable, a Smart Configurator that facilitates software design with GUI, and an Arduino library. Moreover, it is compatible with the existing RL78 Family and can be used in a wide range of applications, from home appliances and consumer electronics to industrial equipment.

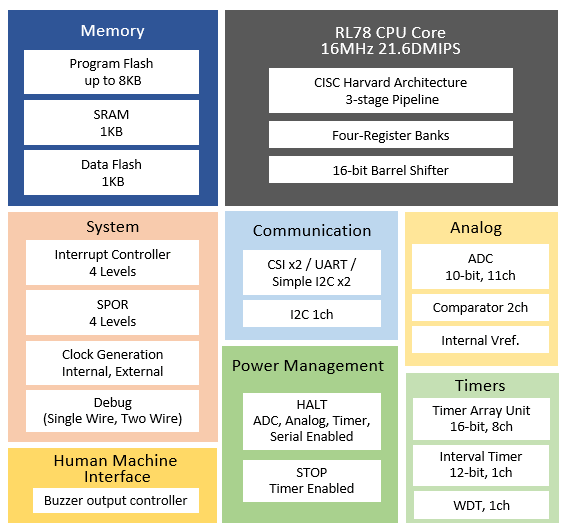

Features
- CPU: RL78 core, Max. 16MHz
- Voltage: 2.4V to 5.5V
- Package: 8-pin to 20-pin
- Memory: Program Flash: 4-8KB, SRAM 1KB, Data Flash 1KB
- Operating temperature range: up to 125°C
- Timer: 16-bit Timer x 8ch, Watchdog Timer x 1ch, 12-bit Interval Timer x 1ch
- Analog function: 10-bit A/D Converter x 11ch, Comparator
- On-chip Oscillator Freq. (MHz): High-Speed: 1, 2, 4, 8, 16MHz; Low-Speed: 15kHz
- Connectivity: SCI (CSI, UART, Simple I2C), I2C
- Others: Selectable Power-On Reset, Low Voltage Detection, On-chip Debug 2.4V to 5.5V (Single-wire, double-wire)
Applications
Applications
- General Purpose
- Consumer Applications
- Home Appliances
- Industrial Automation
- Building Automation
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.10 MB
|
Datasheet
|
||
Manual - Hardware
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF182 KB Related Files:
|
Application Note
|
||
PDF188 KB Related Files:
|
Application Note
|
||
PDF189 KB Related Files:
|
Application Note
|
||
PDF188 KB Related Files:
|
Application Note
|
||
PDF2.03 MB
|
Application Note
|
||
PDF190 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Brochure
|
|||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
General Reliability Literature
|
|||
PDF131 KB
|
Guide
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
PDF158 KB
|
Manual - Development Tools
|
||
PDF408 KB
|
Manual - Development Tools
|
||
Manual - Development Tools
|
|||
PDF1.91 MB
|
Manual - Development Tools
|
||
Manual - Hardware
|
|||
PDF850 KB
|
Other
|
||
Other
|
|||
PDF123 KB
|
Other
|
||
PDF212 KB
|
Other
|
||
PDF323 KB
|
Other
|
||
Other
|
|||
PDF410 KB
|
Product Reliability Report
|
||
PDF3.02 MB
|
Release Note
|
||
Release Note
|
|||
PDF2.64 MB
|
Release Note
|
||
Technical Update
|
|||
Tool News - Release
|
|||
Tool News - Release
|
Design & Development
Software & Tools
Software & Tools
| C Compiler Package for RL78 Family [CC-RL]C Compiler Package for RL78 Family [IDE: CS+, e² studio] | Compiler/Assembler | Renesas |
| FFT LibraryFast Fourier Transform (FFT) Library | DSP / FFT | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] | Emulator | Renesas |
| CS+Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”) | IDE and Coding Tool | Renesas |
| RI78V4 V1 Real-time OS for RL78 Family and 78K0RμITRON4.0 Specification real-time OS for RL78 Family and 78K0R [Required IDE : CS+] | ITRON OS | Renesas |
| RI78V4 V2 Real-time OS for RL78 FamilyμITRON Specification real-time OS for RL78 Family [Required IDE : CS+] | ITRON OS | Renesas |
| CS+ Partner OS Aware Debugging Plug-inFeatures for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78] | Plug-in, OS Aware Debugging, Etc. | Renesas |
| E2 Emulator (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RE, RX, RL78, RH850, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| E2 Emulator Lite (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RX, RL78, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| PG-FP6Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] | Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI)Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] | Programmer (Unit/SW) | Renesas |
| Code Flash Libraries (Flash Self Programming Libraries)Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products | Self Programming Library (Flash Library) | Renesas |
| Data Flash LibrariesLibraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products | Self Programming Library (Flash Library) | Renesas |
| RL78 Web SimulatorRight online tools to support initial evaluation of the low power consumption RL78 Family. Lineup: MCU Simulator Online and Current Consumption Calculator. Free of charge. | Simulator | Renesas |
| Simulator for CS+ of RL78 Family, 78K0R and 78K0Simulator for RL78 Family, 78K0R and 78K0 [Support IDE: CS+] (Note: This product is included in the Compiler Package and is not available separately.) | Simulator | Renesas |
| Simulator for e² studio of RL78 FamilySimulator for RL78 Family [Support IDE: e2 studio] (Note: This product is included in the Renesas IDE "e2 studio" and is not available separately.) | Simulator | Renesas |
| QE for Current Consumption: A Dedicated Tool for Current MeasurementDevelopment assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78] | Solution Toolkit | Renesas |
| RL78 Smart ConfiguratorRL78 Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins. | Solution Toolkit | Renesas |
| Sound Playback/Compression System [M3S-S2-Tiny] for RL78 FamilySound playback system for RL78 Family | Sound / Voice | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
[Toolchains=CC-RL|V1.12.00;IAR Compiler for RL78|v.5.10.1.2667] Related Files:
Application: Consumer Electronics Compiler: CC-RL, ICCRL78 Function: Communication Interface IDE: CS+ for CC, e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|V1.11.00] Related Files:
Application: Consumer Electronics Compiler: CC-RL Function: Communication Interface IDE: CS+ for CC, e2 studio |
Sample Code |
||
ZIP3.72 MB Related Files:
|
Sample Code |
||
ZIP3.73 MB Related Files:
Application: IoT Applications Function: Communication Interface, Application Example, Driver or Library |
Sample Code |
||
ZIP3.74 MB Related Files:
Application: IoT Applications Function: Communication Interface, Application Example, Driver or Library |
Sample Code |
||
ZIP3.77 MB Related Files:
Application: IoT Applications Compiler: CC-RX, CC-RL, ICCRL78 Function: Communication Interface, Application Example, Driver or Library IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
ZIP3.74 MB Related Files:
Application: IoT Applications Function: Communication Interface, Application Example, Driver or Library |
Sample Code |
||
Related Files:
Function: Programmer |
Sample Code |
||
Related Files:
Function: Programmer |
Sample Code |
||
Related Files:
Function: Programmer |
Sample Code |
||
[Toolchains=CC-RL|V1.11.0;LLVM for Renesas RL78|22.10.0.v20220621-1003;GCC for Renesas RL78|22.10.0.v20220621-1003;IAR Compiler for RL78|v.4.21.3]
ZIP3.24 MB Related Files:
Application: Consumer Electronics, Industrial Compiler: CC-RL, GNURL78, ICCRL78, LLVM Function: BSP, Clock, Software Package IDE: e2 studio, IAR EWRL78 |
Sample Code |
||
Related Files:
|
Sample Code |
||
[Toolchains=CC-RL|V1.10.xx;IAR Compiler for RL78|v4.21.x]
ZIP2.98 MB Related Files:
Compiler: CC-RL, ICCRL78 Function: Memory IDE: CS+ for CC, e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|V1.10.xx;IAR Compiler for RL78|v4.21.x]
ZIP3.10 MB Related Files:
Compiler: CC-RL, ICCRL78 Function: Memory IDE: CS+ for CC, e2 studio, IAR EWRL78 |
Sample Code |
||
ZIP423 KB Related Files:
Compiler: CC-RL, ICCRL78 Function: Memory IDE: CS+ for CC, e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.11.00;IAR|4.21.1.2409;LLVM|V10.0.0.202207]
ZIP3.84 MB Related Files:
Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.11.00;IAR|4.21.1.2409;LLVM|V10.0.0.202207]
ZIP2.96 MB Related Files:
Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.10.00;IAR|4.20.1.2260;LLVM|V10.0.0.202207]
ZIP1.93 MB Related Files:
Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.10.00;ICCRL78|4.21.1.2409;LLVM for Renesas RL78|10.0.0.202203]
ZIP1.61 MB Related Files:
Application: Industrial, Consumer Electronics Compiler: CC-RL, LLVM, ICCRL78 Function: Application Example IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.10.00;ICCRL78|4.21.1.2409;LLVM for Renesas RL78|10.0.0.202203]
ZIP2.00 MB Related Files:
Application: Industrial, Consumer Electronics Compiler: CC-RL, LLVM, ICCRL78 Function: Driver or Library IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
[Toolchains=CC-RL|v1.09.00;ICCRL78|4.20.1.2260;LLVM for Renesas RL78|10.0.0.202203] ZIP6.83 MB Related Files:
Application: Industrial Compiler: CC-RL, LLVM, ICCRL78 Function: Security, Driver or Library IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
ZIP6.60 MB Related Files:
Compiler: CC-RL, ICCRL78 Function: Timer IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
ZIP6.57 MB Related Files:
Compiler: CC-RL, ICCRL78 Function: Timer IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
||
Related Files:
Compiler: CC-RL, ICCRL78 Function: Timer IDE: CS+, e2 studio, IAR EWRL78 |
Sample Code |
Boards & Kits
Boards & Kits
RL78/G15 Fast Prototyping Board
The RL78/G15 Fast Prototyping Board is an evaluation board based on the RL78/G15 microcontroller and is specifically designed for prototyping various applications....
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
PLP |
Program Memory (KB) |
RAM (KB) |
Lead Count (#) |
Temp. Range |
Bit Size |
CPU |
Data Flash (KB) |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
Pkg. Type |
Pkg. Dimensions (mm) |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 4 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 8 | 1 | 10 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 8 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 4-ch | LSSOP | 4.4 x 3.6 x 1.45 | ||
| N/A | 4 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 8 | 1 | 16 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 14 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 7-ch | SSOP | 4.4 x 5 x 1.725 | ||
| N/A | 4 | 1 | 20 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 4 | 1 | 20 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 4 | 1 | 20 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 4 | 1 | 20 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 4 | 1 | 20 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 4 | 1 | 20 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 8 | 1 | 20 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 8 | 1 | 20 | -40 to 85°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 8 | 1 | 20 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 8 | 1 | 20 | -40 to 105°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | ||
| N/A | 8 | 1 | 20 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 | Get Samples, | |
| N/A | 8 | 1 | 20 | -40 to 125°C | 16 | RL78 | 1 | 2.4 - 5.5 | 16 | No | No | No | 18 | 12-bit interval x 1-ch, 16-bit x 8-ch | 10-bit/8-bit x 11-ch | LSSOP | 4.4 x 6.5 x 1.45 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
RL78 Arduino Quick Start Guide
This video introduces how to run a sketch on the RL78/G23 Fast Prototyping Board using the Arduino IDE.
Related resources: Quick Start Guide page (GitHub)
00:00 Opening
00:30 Install the Arduino IDE
00:55 Preferences setting
01:19 Install the tools
01:39 Write the sketch
01:48 COM port setting
02:15 Board setting
02:33 Compile, upload, LED blinking
Video List
News & Blog Posts
| Low Pin Count MCU Optimized for the 8-bit MCU Market | Blog Post | Jan 12, 2023 |
