Renesas' radiation hardened CMOS shift registers are qualified to QML Class V space specifications.
Product Selection Table
Processing table
High Dose Rate (HDR) (krad (Si)) |
Low Dose Rate (LDR) (krad (Si)) |
DSEE (SEL, SEB, etc.) (MeV*cm2/mg) |
DLA SMD |
Qualification Level |
|
|---|---|---|---|---|---|
| Part Number | |||||
| CMOS Dual 4-Stage Static Shift Register With Serial Input/Parallel Output | 100 | ELDRS free | 75 | 5962R9662401VEC, 5962R9662401VXC, 5962R9662402VXC | QML Class V (space) |

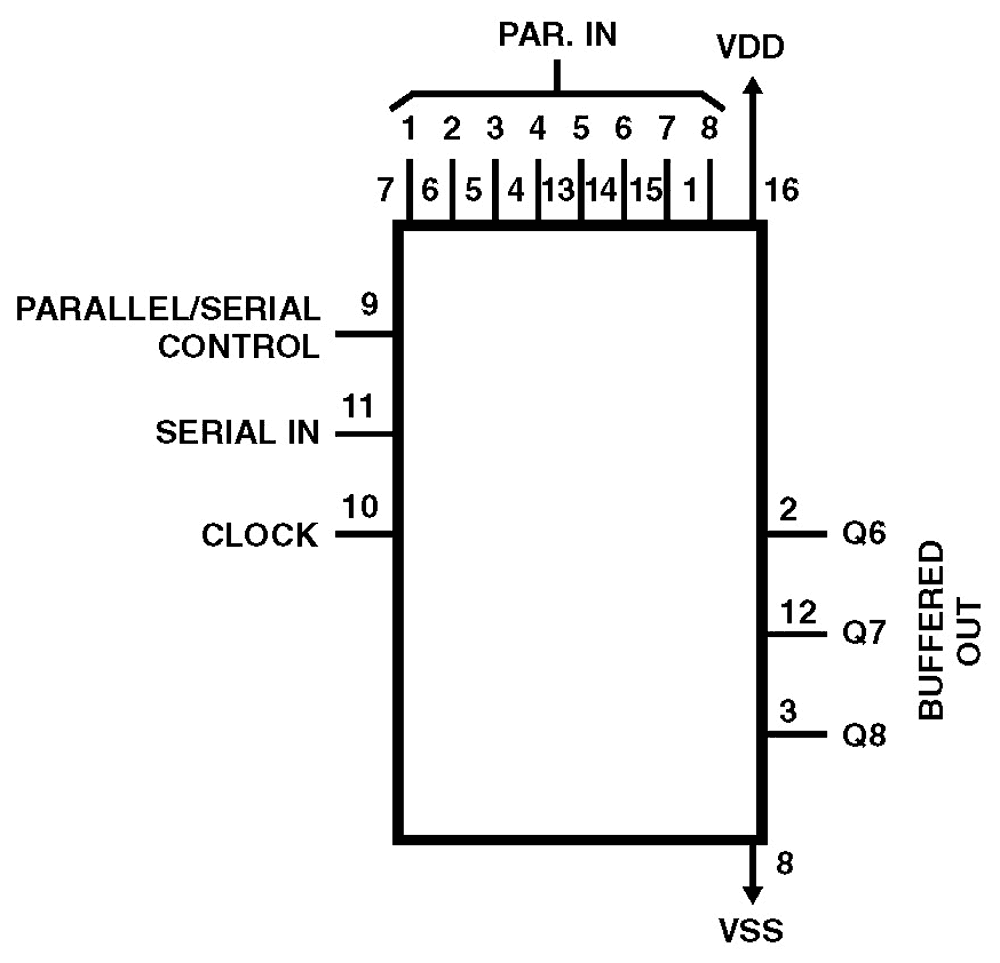

| CMOS 8-Stage Static Shift Register | 100 | ELDRS free | 75 | 5962R9662302VEC, 5962R9662302VXC | QML Class V (space) |
| CMOS 8-Bit Serial-In/Parallel-Out Register | 200 | ELDRS free | SEL free | 5962R9578501VCC, 5962R9578501VXC | QML Class V (space) |
| CMOS 8-Bit Serial-In/Parallel-Out Shift Register | 200 | ELDRS free | SEL free | 5962R9566301VCC, 5962R9566301VXC | QML Class V (space) |
