Overview
Description

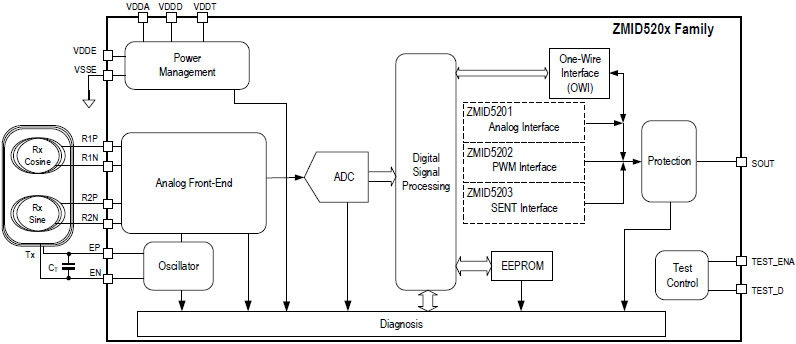

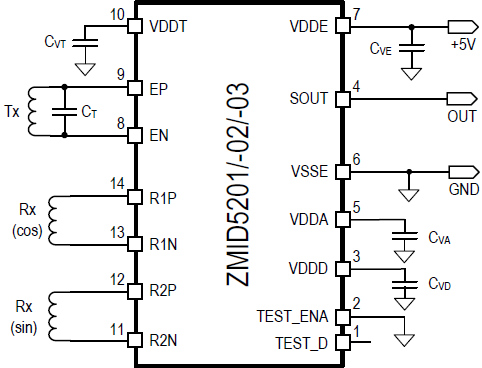

The ZMID5203 is an inductive position sensor IC with SENT output, used for absolute rotary and linear motion sensing in automotive applications. The ZMID5203 uses the physical principles of induction in a wire loop and Eddy currents to detect the position of a metallic target that is sliding or rotating above a set of coils, consisting of one transmitter coil and two receiver coils. The three coils are typically printed as copper traces on a printed circuit board (PCB). They are arranged such that the transmitter coil induces a secondary voltage in the receiver coils which depends on the position of the metallic target above the coils. After demodulating and processing the secondary voltages from the receiver coils, a signal representative of the metallic target’s position over the coils is obtained. The ZMID5203 is fully qualified to automotive standards AEC-Q100, grade 0 up to 150°C ambient temperature.
Features
- Inductive principle
- Rotation sensing up to a full turn of 360º
- SENT output with programmable limits
- Overvoltage, reverse polarity, ESD and short circuit protection
- 12-bit resolution
- Power or ground loss detection
- Facilitates redundant design requirements
- Programmable linearity correction
- Adaptive gain control supporting a wide range of coil designs
- Diagnostic features supporting ISO26262
- Supporting up to ASIL-B
- Overvoltage and reverse polarity protection up to ±18V
- Small 14-TSSOP package
Comparison
| ZMID5203 | ZMID5201 | ZMID5202 | |
| Interface | SENT digital output | Analog output | PWM digital output |
| Resolution (bits) | 12 | 10 | 10 |
| View Product | View Product |
Documentation
| Title | Type | Date Sort ascending | |
|---|---|---|---|
PDF1.01 MB
|
Datasheet
|
||
PDF1.05 MB
|
Application Note
|
||
PDF236 KB
|
Datasheet - Short-form
|
||
PDF459 KB
|
Manual - Development Tools
|
||
PDF1.34 MB
|
Manual - Hardware
|
||
PDF554 KB
|
Manual - Software
|
||
PDF674 KB
|
Manual - Software
|
||
PDF1.01 MB
|
Manual - Software
|
||
PDF745 KB
|
Other
|
||
PDF235 KB
|
Other
|
||
PDF300 KB
|
Overview
|
||
PDF179 KB
|
Schematic
|
||
PDF132 KB
|
Schematic
|
||
PDF680 KB
|
Technical Brief
|
Design & Development
Software & Tools
Software Downloads
| Title | Type | Date Sort ascending | |
|---|---|---|---|
ZIP2.75 MB
|
PCB Design Files
|
||
ZIP142 KB
|
PCB Design Files
|
||
ZIP2.84 MB
|
PCB Design Files
|
||
ZIP287 KB
|
PCB Design Files
|
||
ZIP1.46 MB
|
Software & Tools - Evaluation Software
|
||
ZIP1.98 MB
|
Software & Tools - Software
|
||
ZIP180 KB
|
Software & Tools - Software
|
||
ZIP22 KB
|
Software & Tools - Software
|
Boards & Kits
Boards & Kits
ZMID5203 Inductive Arc Application Module with SENT Output
The ZMID5203MARC is an inductive arc position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized....
Featured Documents:
ZMID5203 Inductive Rotary Application Module with SENT Output
The ZMID5203MROT is an inductive rotary position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized....
Featured Documents:
ZMID5203 Inductive Linear Application Module with SENT Output
The ZMID5203MLIN is an inductive linear position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized....
Featured Documents:
USB Communication and Programming Board for ZMID Application Modules
USB communication and programming board for ZMID inductive application modules. An application module (e.g. ZMID5201MROT; not included, available as a separate item)...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TSSOP | 14 | -40 to 150°C | Reel | Get Samples, |
