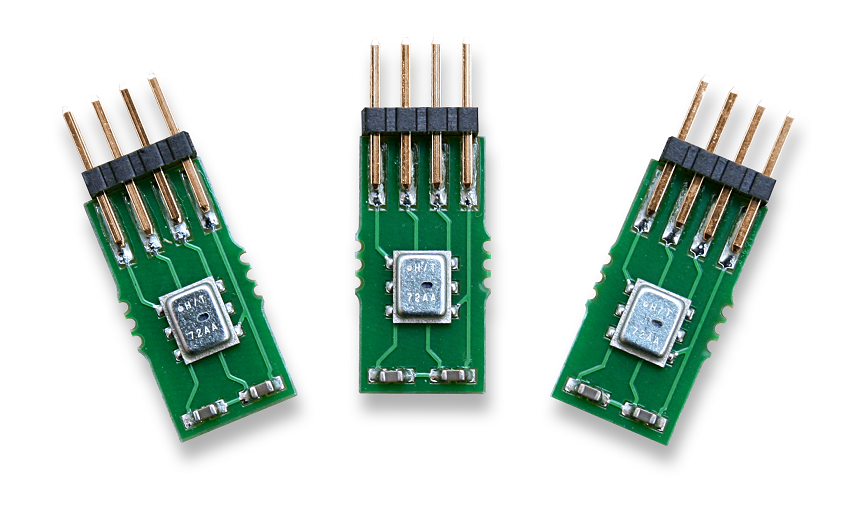

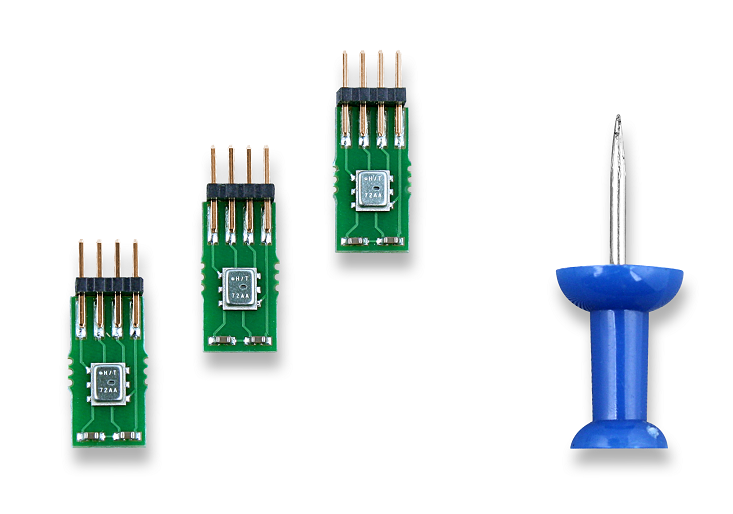

High-Performance Relative Humidity and Temperature Sensor
Jump to Page Section:
Overview
Description
The HS3001 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3001 ideal for a wide number of applications from portable to harsh environments.

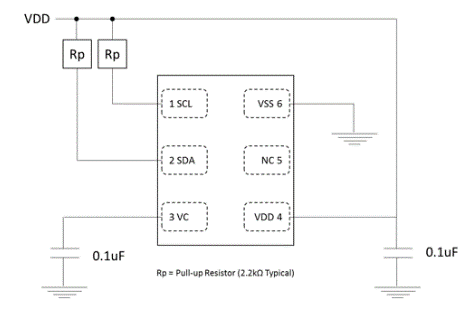

An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I²C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.
Features
- RH accuracy: ±1.5% RH typical
- Fast RH response time (typical 6 seconds)
- Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)
- 14-bit resolution: 0.01% RH (typical)
- Low power consumption: 1.0µA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)
- Extended supply voltage: 2.3V to 5.5V
Comparison
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 356 KB | |
| Application Note | PDF 131 KB | |
| Application Note | PDF 3.64 MB 日本語 | |
| Application Note | PDF 2.87 MB 日本語 | |
| Product Change Notice | PDF 301 KB | |
| Product Change Notice | PDF 368 KB | |
| Application Note | PDF 1.61 MB | |
| Application Note | PDF 1.73 MB | |
| Application Note | PDF 129 KB | |
| Application Note | PDF 189 KB | |
| Application Note | PDF 190 KB | |
| Application Note | PDF 197 KB | |
| Overview | PDF 600 KB 日本語 | |
| Application Note | PDF 192 KB | |
| Product Change Notice | PDF 99 KB | |
| Application Note | PDF 76 KB | |
| Product Change Notice | PDF 114 KB | |
|
17 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
1 item
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code |
[Software=FSP|v4.5.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP
58.03 MB
Application:
IoT Applications
Compiler:
CC-RL, CC-RX, GNU ARM Embedded, GNURL78, GNURX, ICCARM, ICCRL78, ICCRX
Function:
Application Example, Communication Interface
IDE:
e2 studio, IAR EWARM, IAR EWRL78, IAR EWRX
|
|
| Sample Code |
ZIP
2.25 MB
Application:
IoT Applications
Function:
Application Example, Communication Interface, Driver or Library
|
|
| Sample Code |
ZIP
3.74 MB
Application:
IoT Applications
Compiler:
CC-RL, CC-RX, ICCRL78
Function:
Application Example, Communication Interface, Driver or Library
IDE:
CS+, e2 studio, IAR EWRL78
|
|
| Sample Code |
ZIP
3.74 MB
Application:
IoT Applications
Function:
Application Example, Communication Interface, Driver or Library
|
|
| Sample Code |
ZIP
3.48 MB
Application:
IoT Applications
Compiler:
CC-RX, GNURX, ICCRX
Function:
Application Example, Communication Interface, Driver or Library
IDE:
CS+, e2 studio, IAR EWRX
|
|
| Sample Code |
ZIP
2.93 MB
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX, GNURX, ICCRX
Function:
Analog, Communication Interface, Driver or Library, OS
IDE:
CS+, e2 studio, IAR EWRX
|
|
6 items
|
||
Boards & Kits
Boards & Kits
Portable Relative Humidity and Temperature Sensing System
IDT’s SDAH02 LCD evaluation board allows for easy monitoring of the ambient relative humidity and temperature. The system combines the HS300x relative humidity and...
Featured Documents:
Relative Humidity Sensor Pmod™ Board (Renesas Quick-Connect IoT)
The US082-HS3001EVZ board enables quick prototyping for a custom system design with the HS3001, a high-performance relative humidity and temperature sensor. The board...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| LGA | 6 | I | Yes | Cut Tape | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
Renesas Samples
Select an orderable part number:
| Orderable Part ID | Sample |
|---|---|
| HS3001 | Availability |
Videos & Training
Relative Humidity Sensors (RH Sensors)
A brief introduction to Renesas’ relative humidity sensors that offer high accuracy and fast measurement response times, enabling customers to improve overall system performance and feedback control. The humidity sensors feature excellent long-term stability as a result of a robust silicon carbide construction and an innovative design, improving useful lifetime and lowering effective cost.
