15W Wireless Charging Transmitter with Bi-Directional Data Communication
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The P9242-R3 is a highly-integrated 15W magnetic induction wireless power transmitter with in-band, bi-directional data communication requiring no additional circuitry. The communication channel can be used for proprietary device authentication and secure system data transfer.
The P9242-R3 includes a 32-bit ARM® Cortex®-M0 processor, foreign object detection (FOD), wide input voltage range operation, full bridge drivers, and on-chip simultaneous voltage and current demodulation.

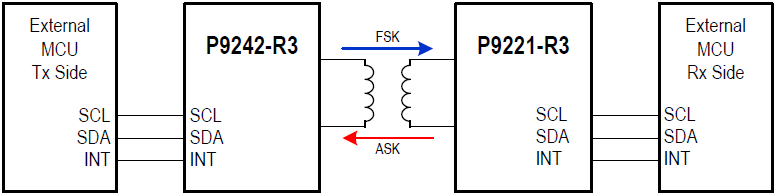

In addition, the P9242-R3 features programmable over-current protection, programmable LED output blinking pattern, and I²C serial interface protocol to read back information such as voltage, current, and fault conditions. This standard device is compliant to the WPC-1.2 specification. Combined with the P9221-R3 receiver, the P9242-R3 forms complete wireless power system solution for 15W applications with bi-directional data communication.
The P9242-R3 has the bootloader and application firmware pre-programmed into internal one-time programmable (OTP) memory.
The P9242-RB, which is pin compatible with the P9242-R3, has only the bootloader pre-programmed into OTP memory
and uses external flash for the application firmware so that it can be changed for specific system requirements.

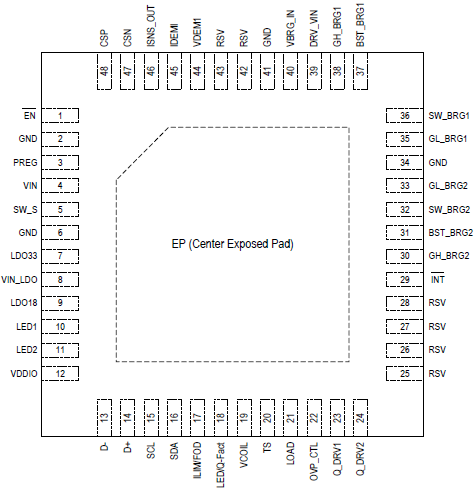

The P9242-R3 and P9242-RB are available in a lead-free, space-saving 48-VFQFN package. It is rated for -40ºC to +85ºC ambient operating temperature range.
Features
- Supports bi-directional data communication
- Enables authentication and system data transfer
- Up to 15W of power transfer
- 87% end-to-end efficiency when combined with the P9221-R3
- VIN range: 4.25V–21V
- Integrated drivers for external power FET's
- Integrated step-down switching regulator
- Simultaneous voltage and current demodulation
- Standard device compliant with WPC-1.2 specification
- Supports I²C interface
- -40°C to +85°C ambient operating temperature range
- P9242-RB with an external flash supports firmware customization
- 6 x 6 mm, 48-VFQFPN package
Design & Development
Boards & Kits
Boards & Kits
15W Wireless Charging Solution with Bi-Directional Data Communication
The WP15WBD-RK evaluation kit demonstrates 15W wireless power transfer and bi-directional data communication between a transmitter (Tx) board with the P9242-R3 wireless...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| Bootloader only | VFQFPN | 48 | I | Tray | Get Samples, | |
| Bootloader only | VFQFPN | 48 | I | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
IDT 15W Wireless Power Reference Kit w/ Bi-directional Communication
A brief overview of the WP15WBD-RK, a 15W WPC Qi-compatible wireless power reference kit featuring a bi-directional communication channel between the transmitter and receiver. The bi-directional data communication channel enables users to authenticate a wirelessly charged receiver device with a specific charging transmitter base or to transfer system data without any additional hardware.
For more information, visit www.IDT.com/WP15WBD-RK.
