Overview

The Renesas RX651 is mainstream RX microcontrollers with RXv2 core, large-capacity RAM, and enhanced security, connectivity and human machine interface (HMI) capabilities.

Pin-Memory Diagram of RX651 stanndard products

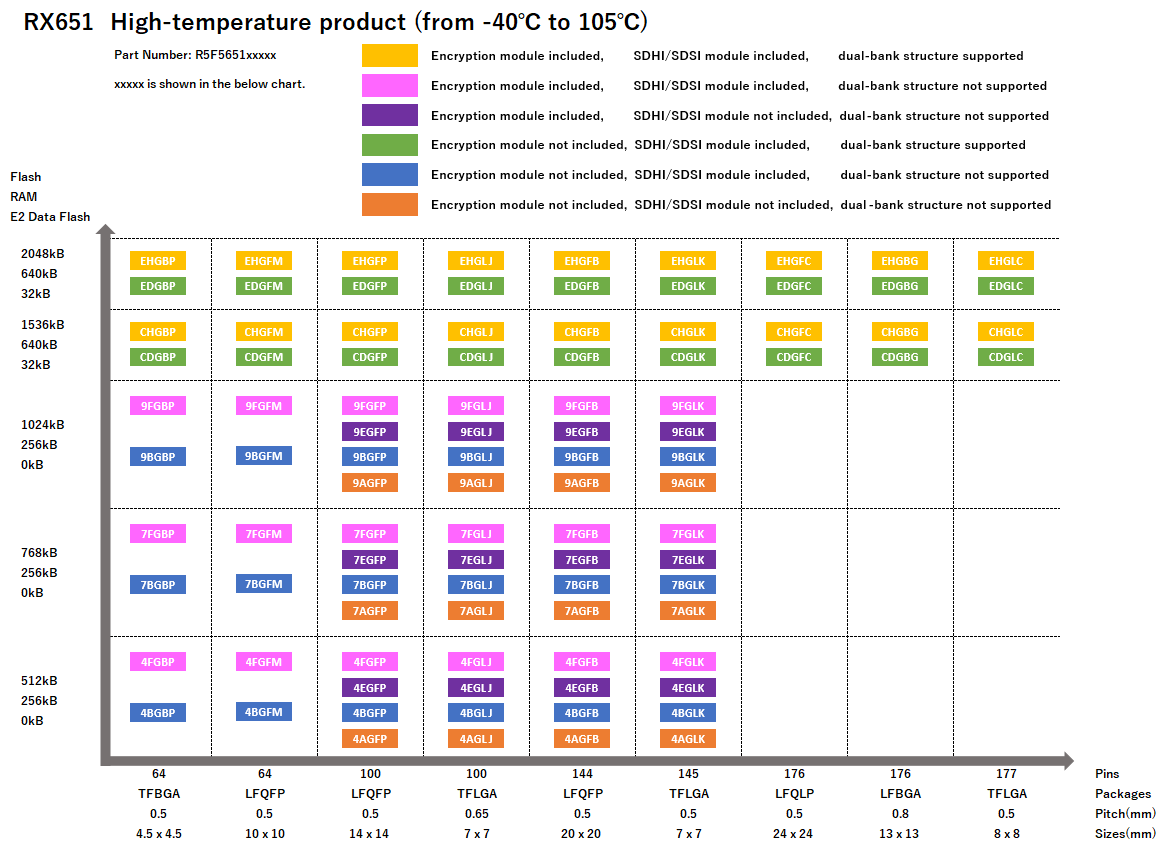

Pin-Memory Diagram of RX651 High-temperature products

RXv2 Core 120 MHz operation (34 CoreMark/mA), single-precision FPU
2.7 to 3.6 V operation
A wide package lineup : 64-pin (4.5mm x 4.5mm, BGA) to 176-pin
Equipped with various communication interfaces such as USB, CAN, SD host/slave interface, and quad SPI.
Program Flash up to 2 MB, SRAM up to 640 KB
- DualBank function convenient for firmware update *1
HMI
- TFT-LCD controller and 2D drawing engine can reduce CPU load at running of LCD display.*1
Security
- Equipped with memory protect functions that protect Flash memory from unintended access to flash
- Equipped with a trusted secure IP that protects key data from disclosure *1
- Equipped with various encryption engines : AES, TRNG, TDES *1, RSA*1, SHA*1
[*1 : Only products with 1.5 MB or more code flash memory]

	Voice Over Power Line Communication
	Power Meter with Power Line Communication
	Power Meter with RF Communication
	Electronic Lock with Fingerprint Identification
	Wi-SUN FAN-Based High Output Sub-GHz Wireless Communication
	Smart Lock with Super Low Power Wi-Fi and Bluetooth Low Energy
	Motor Control with Resolver Solution
	Tiny Flexible System on Module (SoM) Solution
	400ZR Module for Optical Solution
	Wi-SUN FAN 1.1 Based High Speed Sub-GHz Wireless Communication
